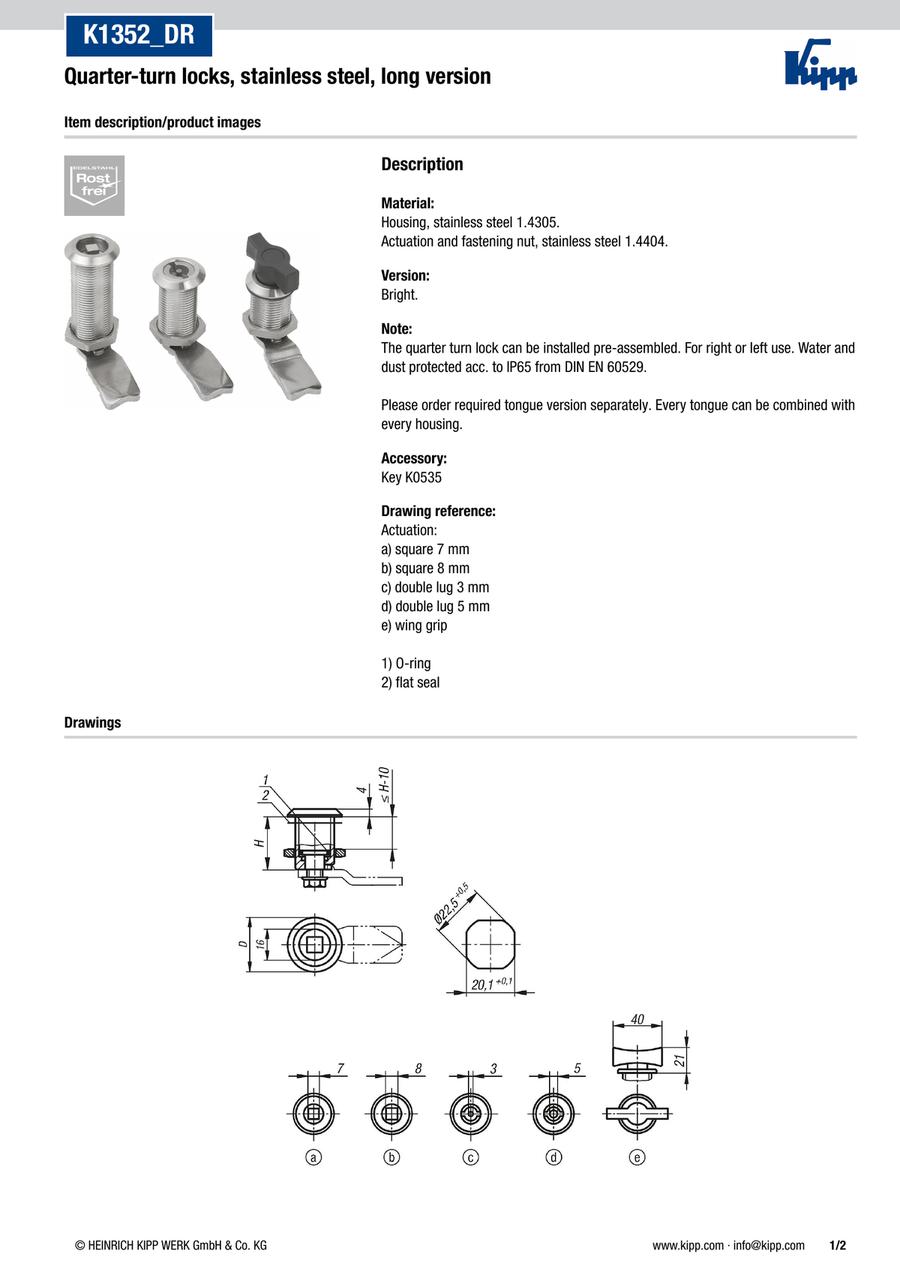

Quarter-turn locks stainless steel long version (K1352)
· Application sectors: material handling, assembly, logistics, control cabinet construction
· Water and dust proof to IP 65
· Stainless steel 1.4305, 1.4404
· Actuation: 7 mm and 8 mm square, 3 mm and 5 mm double lug, wing grip
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Actuation | H=Height (mm) | S=Max. wall thickness (mm) | |
|---|---|---|---|---|---|---|---|
52.72 € | 1 | 4 Days | grip | 30 | 20 | ||
56.24 € | 1 | 4 Days | grip | 36 | 26 | ||
60.04 € | 1 | 4 Days | grip | 40 | 30 | ||
66.69 € | 1 | 4 Days | grip | 50 | 40 | ||
72.83 € | 1 | 4 Days | grip | 60 | 50 | ||
49.06 € | 1 | 4 Days | square 7 mm | 30 | 20 | ||
52.50 € | 1 | 4 Days | square 7 mm | 36 | 26 | ||
56.91 € | 1 | 4 Days | square 7 mm | 40 | 30 | ||
62.99 € | 1 | 4 Days | square 7 mm | 50 | 40 | ||
69.90 € | 1 | 4 Days | square 7 mm | 60 | 50 | ||
49.00 € | 1 | 4 Days | square 8 mm | 30 | 20 | ||
52.46 € | 1 | 4 Days | square 8 mm | 36 | 26 | ||
56.96 € | 1 | 4 Days | square 8 mm | 40 | 30 | ||
62.99 € | 1 | 4 Days | square 8 mm | 50 | 40 | ||
69.90 € | 1 | 4 Days | square 8 mm | 60 | 50 | ||
49.30 € | 1 | 4 Days | double lug 3 mm | 30 | 20 | ||
52.80 € | 1 | 4 Days | double lug 3 mm | 36 | 26 | ||
57.79 € | 1 | 4 Days | double lug 3 mm | 40 | 30 | ||
63.84 € | 1 | 4 Days | double lug 3 mm | 50 | 40 | ||
70.16 € | 1 | 4 Days | double lug 3 mm | 60 | 50 | ||
50.52 € | 1 | 4 Days | double lug 5 mm | 30 | 20 | ||
52.97 € | 1 | 4 Days | double lug 5 mm | 36 | 26 | ||
57.40 € | 1 | 4 Days | double lug 5 mm | 40 | 30 | ||
64.63 € | 1 | 4 Days | double lug 5 mm | 50 | 40 | ||
70.35 € | 1 | 4 Days | double lug 5 mm | 60 | 50 |
Loading...
Basic information
| Main material | Stainless steel | Steel code | 1.4305 | D=diameter(mm) | 28 |
|---|
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
