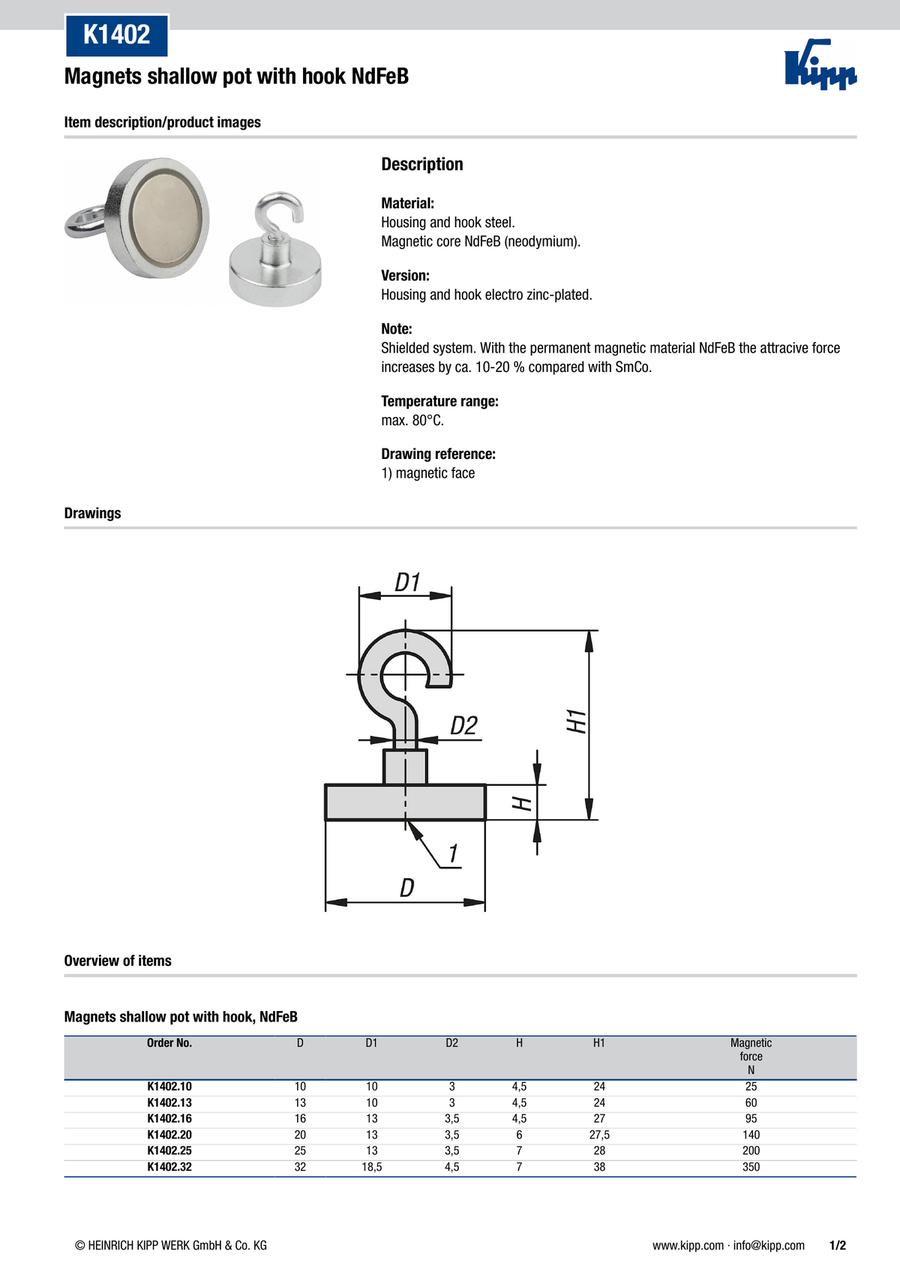

Magnets shallow pot with hook NdFeB (K1402)
· Application sectors: machine and plant construction
· Temperature range up to 80 °C
· Shielded system
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1402.10 |
| K1402.13 |
| K1402.16 |
| K1402.20 |
| K1402.25 |
| K1402.32 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outer Diameter (Ø) | D1 (mm) | D2 (mm) | H=Height (mm) | H1=Total height (mm) | |
|---|---|---|---|---|---|---|---|---|---|
3.47 € | 1 | 4 Days | 10 | 10 | 3 | 4.5 | 24 | ||
3.69 € | 1 | 4 Days | 13 | 10 | 3 | 4.5 | 24 | ||
4.47 € | 1 | 4 Days | 16 | 13 | 3.5 | 4.5 | 27 | ||
6.38 € | 1 | 4 Days | 20 | 13 | 3.5 | 6 | 27.5 | ||
9.11 € | 1 | 4 Days | 25 | 13 | 3.5 | 7 | 28 | ||
12.93 € | 1 | 4 Days | 32 | 18.5 | 4.5 | 7 | 38 |
Loading...
Basic information
| Magnet Type (Material) | Neodymium Magnet | Component material | Steel | Surface finish component | galvanised |
|---|---|---|---|---|---|
| Temperature max.(°C) | 80 |
Configure
Basic Attributes
-
Outer Diameter(Ø)
-
D1(mm)
- 10
- 13
- 18.5
-
D2(mm)
-
H=Height(mm)
-
H1=Total height(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
