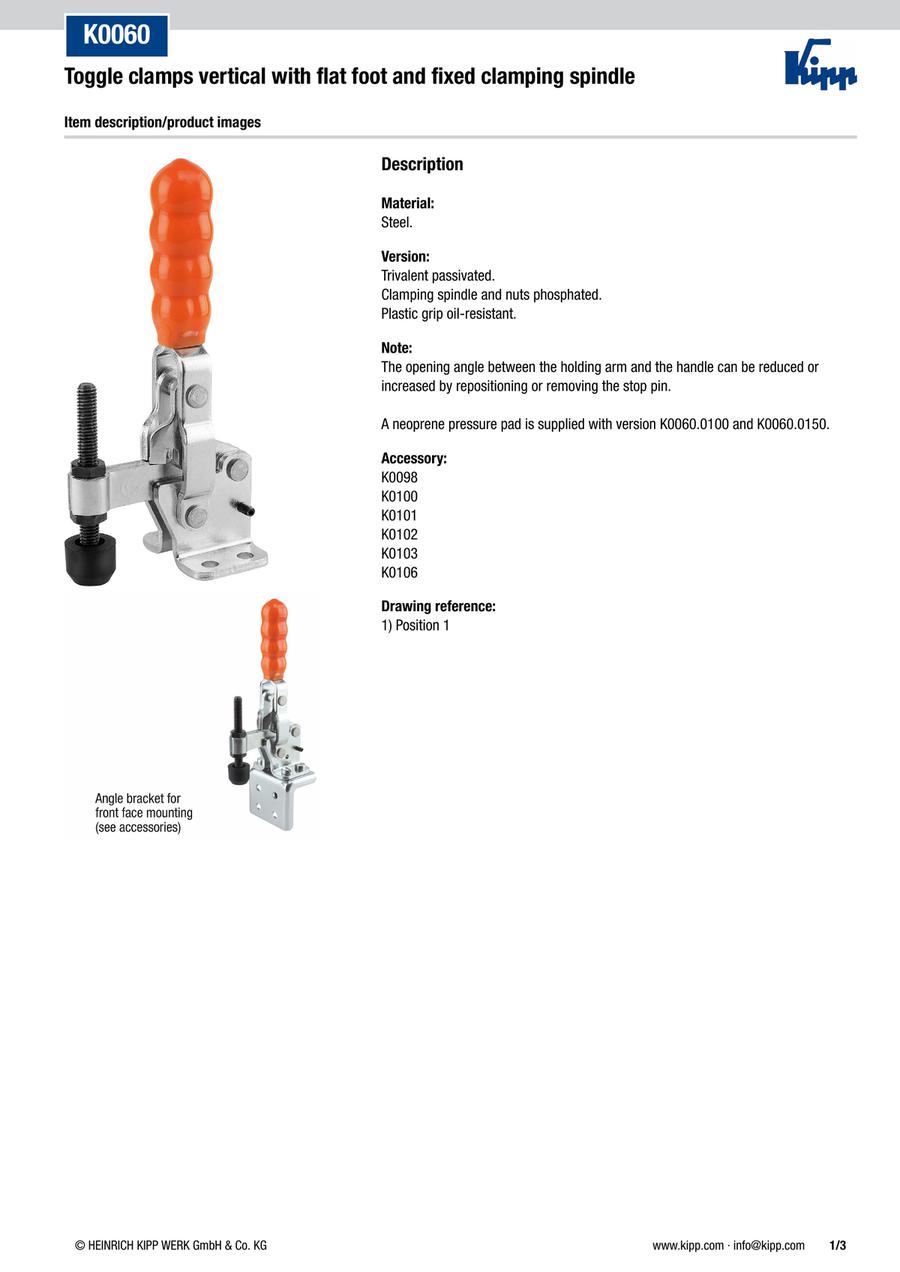

Toggle clamps vertical with flat foot and fixed clamping spindle (K0060)
· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
· The opening angle of the retaining arm or grip can be reduced or increased
· Self-locking prevents the clamping arm opening autonomously.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0060.0100 |
| K0060.0150 |
| K0060.0200 |
| K0060.0250 |
| K0060.0300 |
| K0060.0350 |
| K0060.0450 |
| K0060.0550 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tightening Force (N) | Opening angle (handle position 1) | Opening angle (handle position 2) | Opening angle (handle stop pin removed) | Opening angle (holding arm position 1) | Opening angle (holding arm position 2) | Opening angle (holding arm stop pin removed) | Retaining force F1 (N) | Clamping force F3 (N) | A (mm) | A1 (mm) | A2 (mm) | A3 (mm) | B (mm) | B1 (mm) | B4 (mm) | C (mm) | C1 (mm) | D (mm) | H (mm) | L (mm) | L1 (mm) | M=clamping spindle | Order No. Angle Bracket | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
13.19 € | 1 | 4 Days | 80 | 65° | - | 105° | 95° | - | 185° | 850 | 650 | 16 | 28 | 6 | 14 | 24 | 34 | 17.5 | 22 | 9.5 | 4.8 | 103 | 65 | 32 | M5x35 | - | ||
15.17 € | 1 | 4 Days | 120 | 75° | - | 110° | 95° | - | 185° | 1500 | 900 | 12.7 | 27 | 7 | - | 27 | 38 | - | 23 | 11 | 5.1 | 125 | 60 | 26 | M6x50 | 05880-02 | ||
16.92 € | 1 | 4 Days | 100 | 70° | - | 95° | 105° | - | 175° | 1600 | 1150 | 19 | 35 | 8 | 12.7 | 27 | 42 | 25 | 29 | 12.7 | 5.5 | 135 | 77 | 37 | M6x50 | - | ||
23.48 € | 1 | 4 Days | 190 | 70° | 85° | 100° | 95° | 125° | 160° | 2500 | 1150 | 19 | 35 | 8 | - | 32 | 47 | - | 29 | 21.5 | 7.1 | 175 | 87 | 45 | M8x60 | 05880-04 | ||
28.23 € | 1 | 4 Days | 130 | 65° | - | 90° | 105° | - | 160° | 3000 | 1150 | 25 | 43 | 9 | 19 | 34.5 | 52 | - | 32 | 21.5 | 8 | 186 | 115 | 65 | M8x60 | - | ||
31.45 € | 1 | 4 Days | 230 | 70° | 80° | 110° | 90° | 120° | 180° | 3500 | 1650 | 32 | 50 | 9 | - | 45 | 64 | - | 40 | 25.5 | 8.3 | 220 | 123 | 65 | M10x80 | 05880-06 | ||
40.00 € | 1 | 4 Days | 260 | 70° | 85° | 110° | 90° | 125° | 180° | 4500 | 1650 | 32 | 53 | 10 | - | 45 | 64 | - | 47 | 30 | 8.7 | 228 | 136.5 | 74 | M12x100 | 05880-06 | ||
58.52 € | 1 | 4 Days | 290 | 65° | 80° | 110° | 90° | 120° | 180° | 5500 | 1900 | 51 | 76 | 12.5 | - | 70 | 95 | - | 81 | 38 | 12.3 | 312 | 196.5 | 108 | M16x150 | - |
Loading...
Basic information
| Body Material | Steel | Surface finish body | galvanised and passivated | Component material | Plastic |
|---|---|---|---|---|---|
| Component colour | orange |
Configure
Basic Attributes
-
Tightening Force(N)
-
Opening angle (handle position 1)
- 65°
- 70°
- 75°
-
Opening angle (handle position 2)
- 80°
- 85°
-
Opening angle (handle stop pin removed)
- 90°
- 95°
- 100°
- 105°
- 110°
-
Opening angle (holding arm position 1)
- 90°
- 95°
- 105°
-
Opening angle (holding arm position 2)
- 120°
- 125°
-
Opening angle (holding arm stop pin removed)
- 160°
- 175°
- 180°
- 185°
-
Retaining force F1(N)
-
Clamping force F3(N)
-
A(mm)
-
A1(mm)
-
A2(mm)
-
A3(mm)
-
B(mm)
-
B1(mm)
- 34
- 38
- 42
- 47
- 52
- 64
- 95
-
B4(mm)
-
C(mm)
-
C1(mm)
-
D(mm)
-
H(mm)
-
L(mm)
-
L1(mm)
-
M=clamping spindle
-
Order No. Angle Bracket
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
