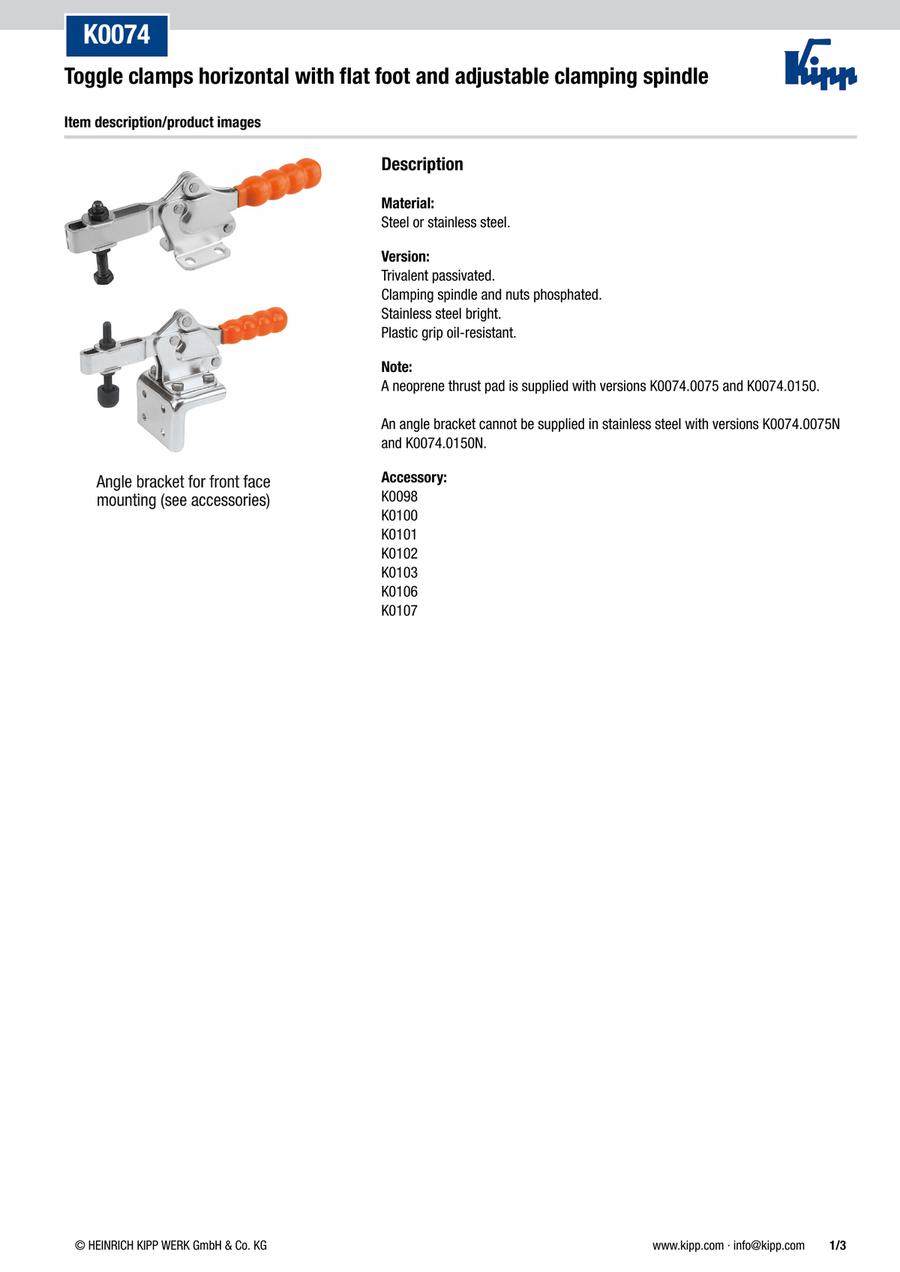

Toggle clamps horizontal with flat foot and adjustable clamping spindle (K0074)
· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry
· Self-locking prevents the clamping arm opening autonomously.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0074.0075 |
| K0074.0075N |
| K0074.0150 |
| K0074.0150N |
| K0074.0250 |
| K0074.0350 |
| K0074.0450 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tightening Force (N) | Body Material | Opening angle of holding arm | Opening angle of handle | Retaining force F1 (N) | Retaining force F2 (N) | Clamping force F3 (N) | Clamping force F4 (N) | A (mm) | A1 (mm) | A2 (mm) | B (mm) | B1 (mm) | B2 (mm) | B3 (mm) | B4 (mm) | C (mm) | C1 (mm) | D (mm) | H (mm) | L (mm) | L1 (mm) | M=clamping spindle | Order No. Angle Bracket | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14.13 € | 1 | 4 Days | 80 | Steel | 90° | 75° | 500 | 1100 | 250 | 700 | 13.5 | 25 | 5.7 | 17.4 | 27 | 16 | 5.8 | - | 19 | 9.5 | 5.2 | 38 | 116 | 37 | M5x35 | 05880-02 | ||
28.64 € | 1 | 4 Days | 80 | Stainless Steel | 90° | 75° | 500 | 1100 | 250 | 700 | 13.5 | 25 | 5.7 | 17.4 | 27 | 16 | 5.8 | - | 19 | 9.5 | 5.2 | 38 | 116 | 37 | M5x35 | - | ||
17.88 € | 1 | 4 Days | 140 | Steel | 90° | 80° | 1200 | 2600 | 400 | 1000 | 26 | 38 | 6 | 28 | 40 | 20 | 6.2 | 22 | 24 | 14 | 5.5 | 53 | 170 | 60 | M6x50 | 05880-04 | ||
32.94 € | 1 | 4 Days | 140 | Stainless Steel | 90° | 80° | 1200 | 2600 | 400 | 1000 | 26 | 38 | 6 | 28 | 40 | 20 | 6.2 | 22 | 24 | 14 | 5.5 | 53 | 170 | 60 | M6x50 | - | ||
24.58 € | 1 | 4 Days | 200 | Steel | 95° | 80° | 1500 | 3500 | 800 | 1950 | 26 | 42 | 8 | 31 | 47 | 23 | 8.5 | 26 | 35 | 17.5 | 6.6 | 68 | 224 | 79 | M8x60 | 05880-04 | ||
31.33 € | 1 | 4 Days | 250 | Steel | 90° | 75° | 2500 | 5500 | 1150 | 3100 | 41.2 | 59 | 9 | 43 | 59 | 30 | 12 | 39 | 45 | 24 | 8.7 | 91 | 274 | 108 | M10x80 | 05880-06 | ||
45.38 € | 1 | 4 Days | 250 | Steel | 90° | 75° | 3000 | 6500 | 1150 | 3100 | 41.2 | 67 | 13 | 41.3 | 67 | 38 | 14.2 | - | 59 | 27 | 8.7 | 110 | 305 | 128 | M12x100 | 05880-06 |
