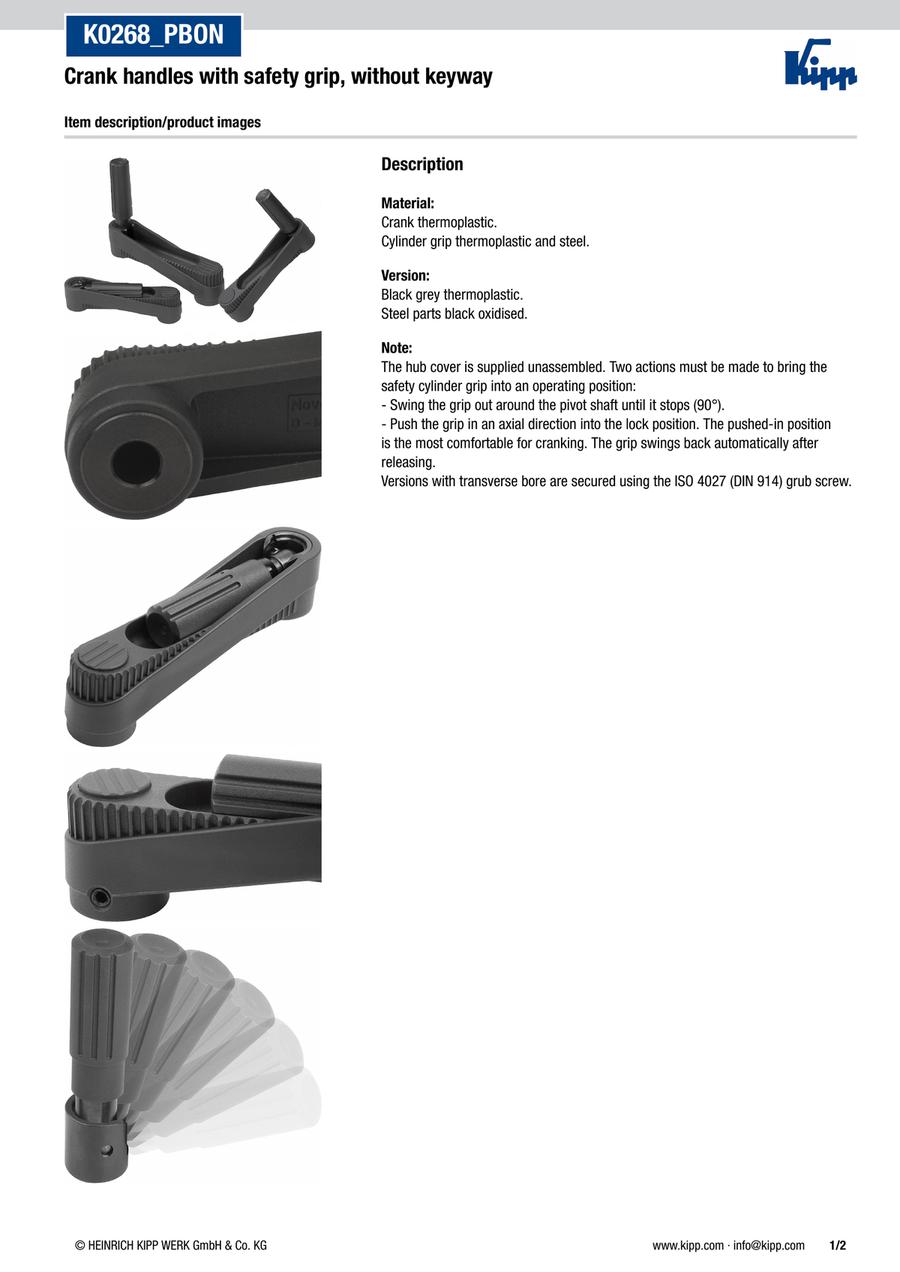

Crank handles with safety grip, without keyway (K0268)
· Application sectors: machine, plant, armament and instrument construction, measuring equipment
· The NOVO grip product range represents an attractive design and an easy-to-grip form
· Swivels back automatically after releasing
· Version: without keyway
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0268.1108 |
| K0268.1110 |
| K0268.1210 |
| K0268.1212 |
| K0268.1312 |
| K0268.1314 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Size | A=Centre distance (mm) | D (mm) | D2=Fastening hole (mm) | H=Height (mm) | H1=Handle height (mm) | H2 (mm) | H3 (mm) | L=Length (mm) | L2 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
41.04 € | 1 | 4 Days | 1 | 80 | 24 | 8 | 84.2 | 47.5 | 28.5 | 13 | 104 | 12.7 | ||
41.04 € | 1 | 4 Days | 1 | 80 | 24 | 10 | 84.2 | 47.5 | 28.5 | 13 | 104 | 12.7 | ||
41.37 € | 1 | 4 Days | 2 | 100 | 29 | 10 | 104.2 | 58.5 | 35.5 | 13 | 129 | 15.7 | ||
41.37 € | 1 | 4 Days | 2 | 100 | 29 | 12 | 104.2 | 58.5 | 35.5 | 13 | 129 | 15.7 | ||
42.10 € | 1 | 4 Days | 3 | 125 | 36 | 12 | 139 | 82 | 44 | 18.5 | 161 | 19.5 | ||
42.10 € | 1 | 4 Days | 3 | 125 | 36 | 14 | 139 | 82 | 44 | 18.5 | 161 | 19.5 |
Loading...
Basic information
| Main material | Thermoplastic | Main colour | black grey | Component material | Thermoplastic |
|---|---|---|---|---|---|
| Component colour | black grey | Form | B | Form-Type | safety grip |
Configure
Basic Attributes
-
Size
-
A=Centre distance(mm)
-
D(mm)
-
D2=Fastening hole(mm)
-
H=Height(mm)
-
H1=Handle height(mm)
-
H2(mm)
-
H3(mm)
-
L=Length(mm)
-
L2(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
