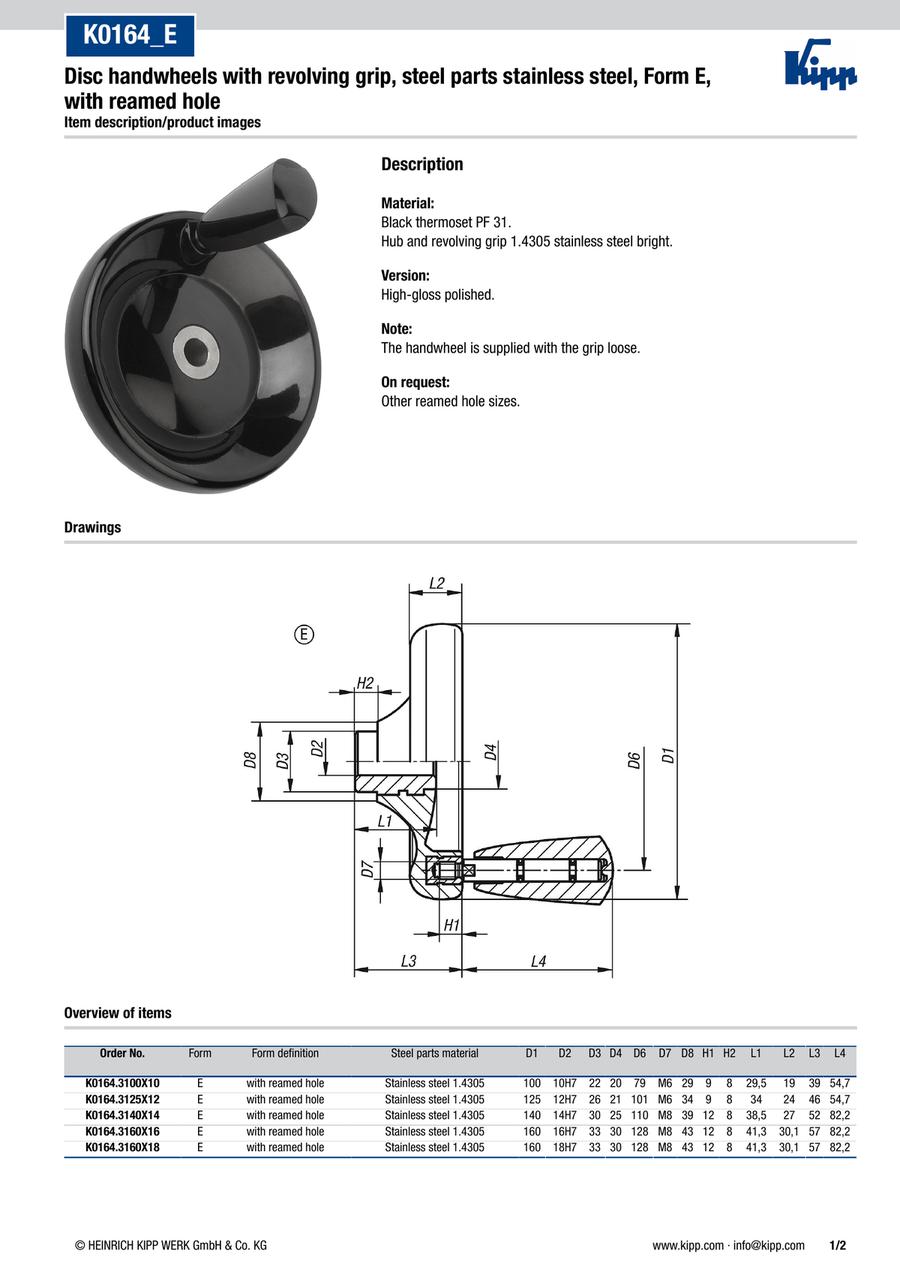

Disc handwheels with revolving grip, steel parts stainless steel, Form E, with reamed hole (K0164)
· Application sectors: machine, plant, armament and instrument construction, measuring equipment
· For opening, closing and operating valves in fittings, machine tools
· Form E: with reamed hole
· Hub, steel or stainless steel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0164.3100X10 |
| K0164.3125X12 |
| K0164.3140X14 |
| K0164.3160X16 |
| K0164.3160X18 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle, O.D. D (Ø) | Handle, Thickness t (mm) | Size | D2=Fastening hole (mm) | D3 (mm) | D4 (mm) | D6 (mm) | D7 (mm) | D8 (mm) | H1 (mm) | L1 (mm) | L2 (mm) | L4 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
47.56 € | 1 | 4 Days | 100 | 39 | 1 | 10H7 | 22 | 20 | 79 | M6 | 29 | 9 | 29.5 | 19 | 54.7 | ||
52.34 € | 1 | 4 Days | 125 | 46 | 2 | 12H7 | 26 | 21 | 101 | M6 | 34 | 9 | 34 | 24 | 54.7 | ||
58.40 € | 1 | 4 Days | 140 | 52 | 3 | 14H7 | 30 | 25 | 110 | M8 | 39 | 12 | 38.5 | 27 | 82.2 | ||
66.78 € | 1 | 4 Days | 160 | 57 | 4 | 16H7 | 33 | 30 | 128 | M8 | 43 | 12 | 41.3 | 30.1 | 82.2 | ||
66.78 € | 1 | 4 Days | 160 | 57 | 4 | 18H7 | 33 | 30 | 128 | M8 | 43 | 12 | 41.3 | 30.1 | 82.2 |
Loading...
Basic information
| Main material | Duroplast | Component material | Duroplast | Steel parts material | Stainless steel 1.4305 |
|---|---|---|---|---|---|
| Form | E | Form-Type | with reamed hole | Grip | revolving grip |
| H2(mm) | 8 |
Configure
Basic Attributes
-
Handle, O.D. D(Ø)
-
Handle, Thickness t(mm)
-
Size
-
D2=Fastening hole(mm)
-
D3(mm)
-
D4(mm)
-
D6(mm)
-
D7(mm)
- M6
- M8
-
D8(mm)
- 29
- 34
- 39
- 43
-
H1(mm)
-
L1(mm)
-
L2(mm)
-
L4(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
