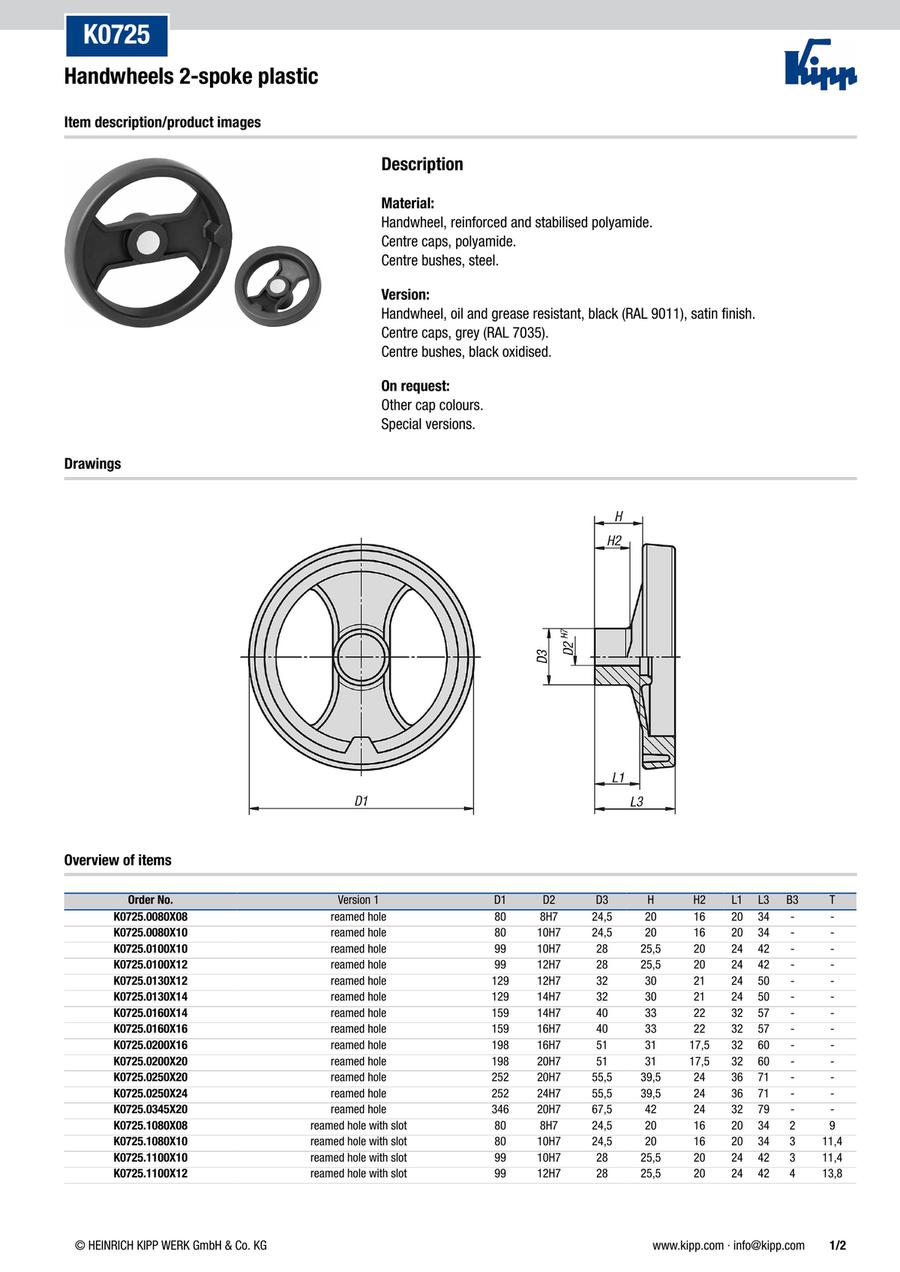

Handwheels 2-spoke plastic (K0725)
· Application sectors: machine, plant, armament and instrument construction, measuring equipment
· For opening, closing and operating valves in fittings, machine tools
· Version: with and without keyway
· oil and grease resistant
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle, O.D. D (Ø) | Handle, Thickness t (mm) | Version 1 | B3 (mm) | D2=Fastening hole (mm) | D3 (mm) | H (mm) | H2 (mm) | L1 (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.15 € | 1 | 4 Days | 80 | 34 | reamed hole | - | 8H7 | 24.5 | 20 | 16 | 20 | - | ||
7.15 € | 1 | 4 Days | 80 | 34 | reamed hole | - | 10H7 | 24.5 | 20 | 16 | 20 | - | ||
8.37 € | 1 | 4 Days | 99 | 42 | reamed hole | - | 10H7 | 28 | 25.5 | 20 | 24 | - | ||
8.37 € | 1 | 4 Days | 99 | 42 | reamed hole | - | 12H7 | 28 | 25.5 | 20 | 24 | - | ||
10.35 € | 1 | 4 Days | 129 | 50 | reamed hole | - | 12H7 | 32 | 30 | 21 | 24 | - | ||
10.35 € | 1 | 4 Days | 129 | 50 | reamed hole | - | 14H7 | 32 | 30 | 21 | 24 | - | ||
14.67 € | 1 | 4 Days | 159 | 57 | reamed hole | - | 14H7 | 40 | 33 | 22 | 32 | - | ||
14.67 € | 1 | 4 Days | 159 | 57 | reamed hole | - | 16H7 | 40 | 33 | 22 | 32 | - | ||
19.02 € | 1 | 4 Days | 198 | 60 | reamed hole | - | 16H7 | 51 | 31 | 17.5 | 32 | - | ||
19.02 € | 1 | 4 Days | 198 | 60 | reamed hole | - | 20H7 | 51 | 31 | 17.5 | 32 | - | ||
26.02 € | 1 | 4 Days | 252 | 71 | reamed hole | - | 20H7 | 55.5 | 39.5 | 24 | 36 | - | ||
26.02 € | 1 | 4 Days | 252 | 71 | reamed hole | - | 24H7 | 55.5 | 39.5 | 24 | 36 | - | ||
59.85 € | 1 | 4 Days | 346 | 79 | reamed hole | - | 20H7 | 67.5 | 42 | 24 | 32 | - | ||
9.11 € | 1 | 4 Days | 80 | 34 | reamed hole with slot | 2 | 8H7 | 24.5 | 20 | 16 | 20 | 9 | ||
9.11 € | 1 | 4 Days | 80 | 34 | reamed hole with slot | 3 | 10H7 | 24.5 | 20 | 16 | 20 | 11.4 | ||
10.28 € | 1 | 4 Days | 99 | 42 | reamed hole with slot | 3 | 10H7 | 28 | 25.5 | 20 | 24 | 11.4 | ||
10.28 € | 1 | 4 Days | 99 | 42 | reamed hole with slot | 4 | 12H7 | 28 | 25.5 | 20 | 24 | 13.8 | ||
12.29 € | 1 | 4 Days | 129 | 50 | reamed hole with slot | 4 | 12H7 | 32 | 30 | 21 | 24 | 13.8 | ||
12.29 € | 1 | 4 Days | 129 | 50 | reamed hole with slot | 5 | 14H7 | 32 | 30 | 21 | 24 | 16.3 | ||
16.65 € | 1 | 4 Days | 159 | 57 | reamed hole with slot | 5 | 14H7 | 40 | 33 | 22 | 32 | 16.3 | ||
16.65 € | 1 | 4 Days | 159 | 57 | reamed hole with slot | 5 | 16H7 | 40 | 33 | 22 | 32 | 18.3 | ||
20.99 € | 1 | 4 Days | 198 | 60 | reamed hole with slot | 5 | 16H7 | 51 | 31 | 17.5 | 32 | 18.3 | ||
20.99 € | 1 | 4 Days | 198 | 60 | reamed hole with slot | 6 | 20H7 | 51 | 31 | 17.5 | 32 | 22.8 | ||
27.97 € | 1 | 4 Days | 252 | 71 | reamed hole with slot | 6 | 20H7 | 55.5 | 39.5 | 24 | 36 | 22.8 | ||
27.97 € | 1 | 4 Days | 252 | 71 | reamed hole with slot | 8 | 24H7 | 55.5 | 39.5 | 24 | 36 | 27.3 | ||
61.20 € | 1 | 4 Days | 346 | 79 | reamed hole with slot | 6 | 20H7 | 67.5 | 42 | 24 | 32 | 22.8 |
Loading...
Basic information
| Handle, Material | Polyamide |
|---|
Configure
Basic Attributes
-
Handle, O.D. D(Ø)
-
Handle, Thickness t(mm)
-
Version 1
-
B3(mm)
- 2
- 3
- 4
- 5
- 6
- 8
-
D2=Fastening hole(mm)
-
D3(mm)
-
H(mm)
-
H2(mm)
-
L1(mm)
-
T(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
