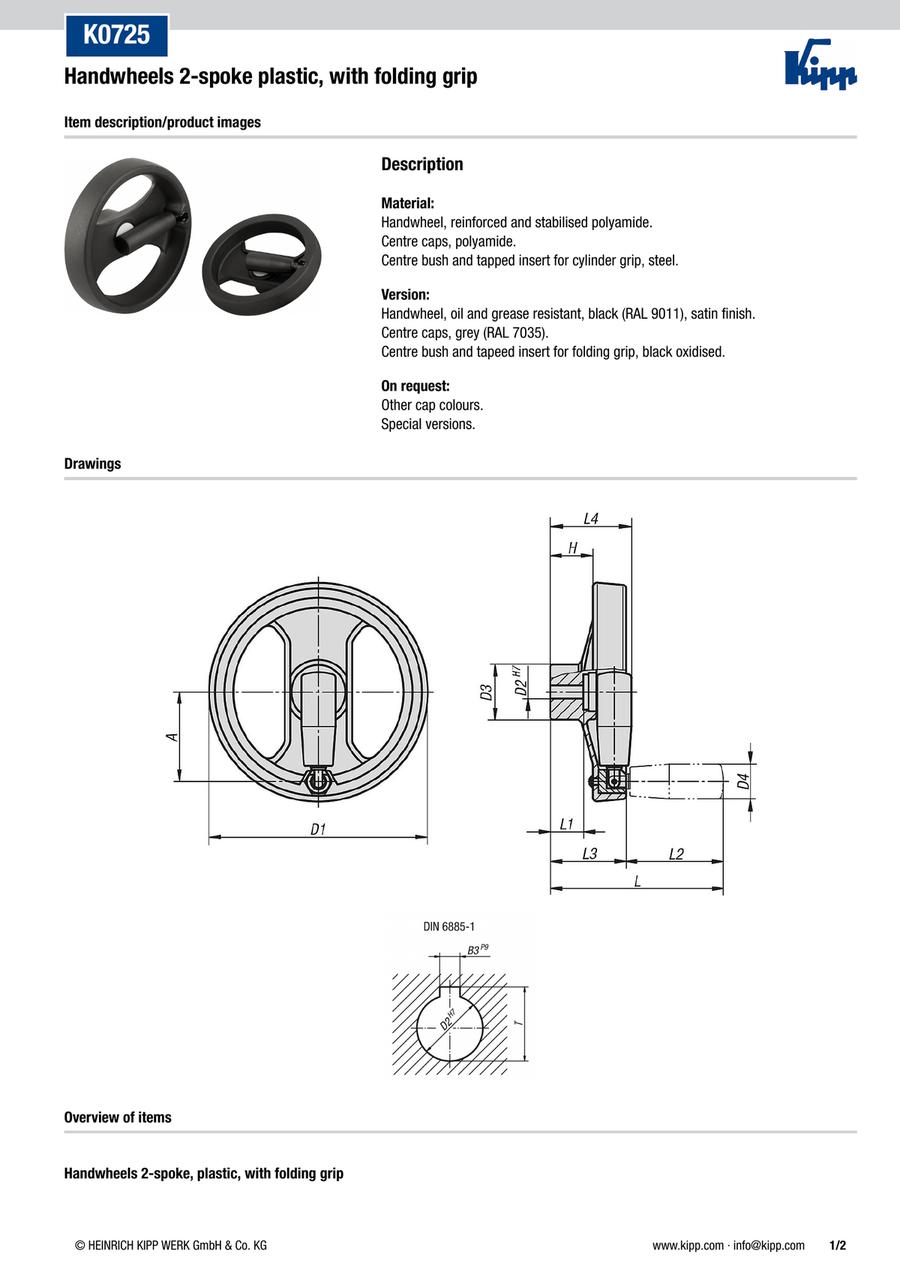

Handwheels 2-spoke plastic, with folding grip (K0725)
· Application sectors: machine, plant, armament and instrument construction, measuring equipment
· For opening, closing and operating valves in fittings, machine tools
· Version: with and without keyway
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0725.6130X12 |
| K0725.6130X14 |
| K0725.6160X14 |
| K0725.6160X16 |
| K0725.6200X16 |
| K0725.6200X20 |
| K0725.6345X20 |
| K0725.7130X12 |
| K0725.7130X14 |
| K0725.7160X14 |
| K0725.7160X16 |
| K0725.7200X16 |
| K0725.7200X20 |
| K0725.7345X20 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle, O.D. D (Ø) | Handle, Thickness t (mm) | A (mm) | B3 (mm) | D2=Fastening hole (mm) | D3 (mm) | D4 (mm) | H (mm) | L (mm) | L1 (mm) | L2 (mm) | L4 (mm) | T (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
24.83 € | 1 | 4 Days | 129 | 52 | 51 | - | 12H7 | 32 | 20 | 29 | 111 | 20 | 59 | 53 | - | ||
24.83 € | 1 | 4 Days | 129 | 52 | 51 | - | 14H7 | 32 | 20 | 29 | 111 | 20 | 59 | 53 | - | ||
32.09 € | 1 | 4 Days | 159 | 55 | 65 | - | 14H7 | 40 | 25 | 31 | 126 | 24 | 71 | 59 | - | ||
32.09 € | 1 | 4 Days | 159 | 55 | 65 | - | 16H7 | 40 | 25 | 31 | 126 | 24 | 71 | 59 | - | ||
51.91 € | 1 | 4 Days | 200 | 69 | 80 | - | 16H7 | 54.5 | 27 | 33 | 160 | 28 | 91 | 69 | - | ||
51.91 € | 1 | 4 Days | 200 | 69 | 80 | - | 20H7 | 54.5 | 27 | 33 | 160 | 28 | 91 | 69 | - | ||
81.51 € | 1 | 4 Days | 346 | 80 | 148 | - | 20H7 | 67.5 | 27 | 43.5 | 144 | 32 | 91 | 80 | - | ||
26.81 € | 1 | 4 Days | 129 | 52 | 51 | 4 | 12H7 | 32 | 20 | 29 | 111 | 20 | 59 | 53 | 13.8 | ||
26.81 € | 1 | 4 Days | 129 | 52 | 51 | 5 | 14H7 | 32 | 20 | 29 | 111 | 20 | 59 | 53 | 16.3 | ||
34.04 € | 1 | 4 Days | 159 | 55 | 65 | 5 | 14H7 | 40 | 25 | 31 | 126 | 24 | 71 | 59 | 16.3 | ||
34.04 € | 1 | 4 Days | 159 | 55 | 65 | 5 | 16H7 | 40 | 25 | 31 | 126 | 24 | 71 | 59 | 18.3 | ||
53.89 € | 1 | 4 Days | 200 | 69 | 80 | 5 | 16H7 | 54.5 | 27 | 33 | 160 | 28 | 91 | 69 | 18.3 | ||
53.89 € | 1 | 4 Days | 200 | 69 | 80 | 6 | 20H7 | 54.5 | 27 | 33 | 160 | 28 | 91 | 69 | 22.8 | ||
83.00 € | 1 | 4 Days | 346 | 80 | 148 | 6 | 20H7 | 67.5 | 27 | 43.5 | 144 | 32 | 91 | 80 | 22.8 |
Loading...
Basic information
| Handle, Material | Polyamide | Component material | Polyamide |
|---|
Configure
Basic Attributes
-
Handle, O.D. D(Ø)
-
Handle, Thickness t(mm)
-
A(mm)
- 51
- 65
- 80
- 148
-
B3(mm)
- 4
- 5
- 6
-
D2=Fastening hole(mm)
-
D3(mm)
-
D4(mm)
-
H(mm)
-
L(mm)
- 111
- 126
- 144
- 160
-
L1(mm)
-
L2(mm)
-
L4(mm)
-
T(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
