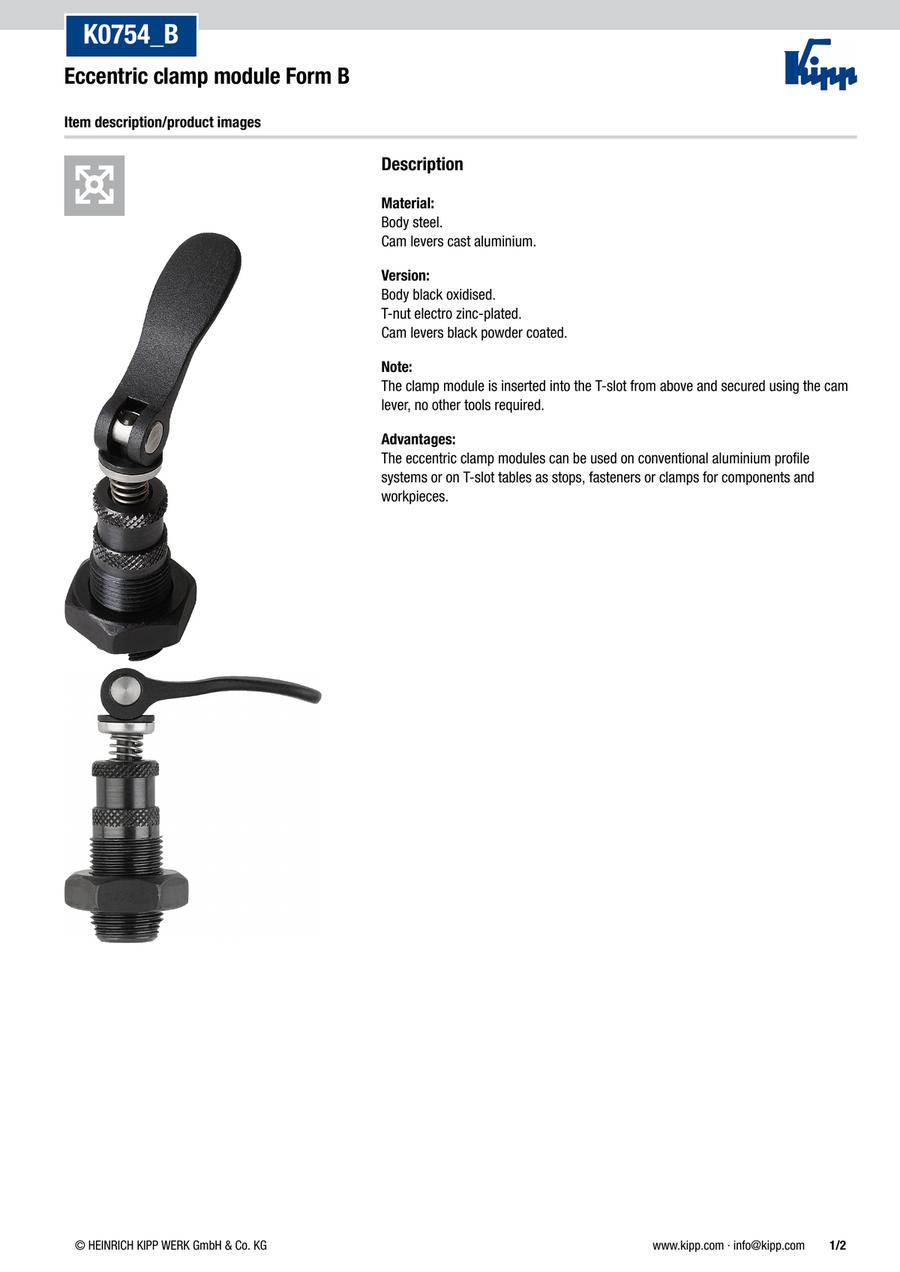

Eccentric clamp module Form B (K0754)
· Application sectors: machine construction, toolmaking, fixture construction
· No additional tools required
· Compatible with all conventional aluminium profile systems and T-slot tables
· No additional tools required
· Compatible with all conventional aluminium profile systems and T-slot tables
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
K0754.10200808
Basic information
| Main Body Material | Steel | Surface finish body | black oxidised | Main colour | black |
|---|---|---|---|---|---|
| Component material | Aluminium | Surface finish component | powder-coated | Component colour | black |
| Form | B | D1=Thread | M20x1,5 | H(mm) | 73.5 |
| H1(mm) | 36 | H2(mm) | 8 | H3(mm) | 28 |
| L=Handle length(mm) | 52.3 | suitable for slot width(mm) | 8 | Clamping force F(kN) | 2.5 |
| Hand force FH(N) | 100 |
This page is Eccentric clamp module Form B (K0754), part number K0754.10200808.
You can find the detail information about specifications and dimensions on part number K0754.10200808.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
