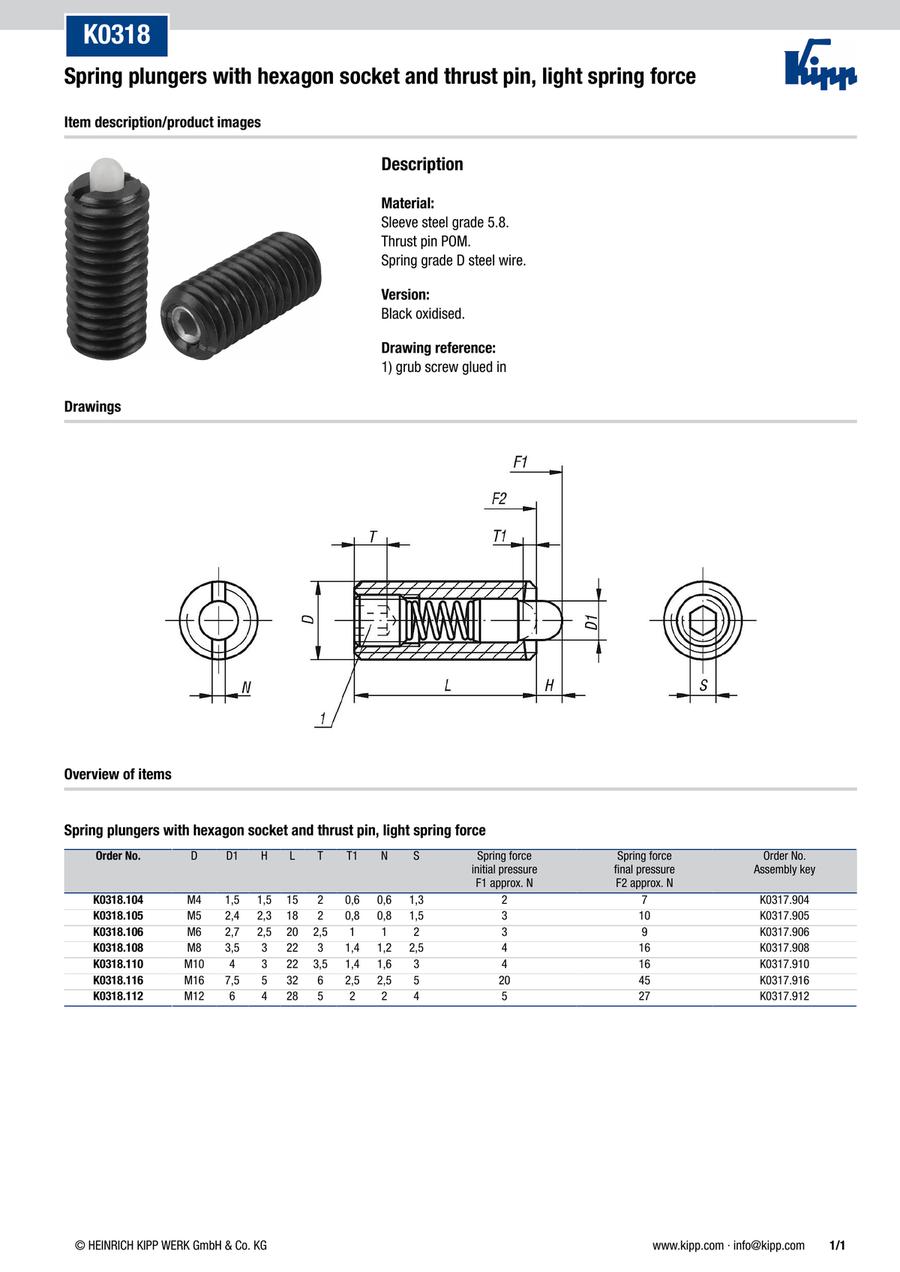

Spring plungers with hexagon socket and thrust pin, light spring force (K0318)
· Application sectors: machine and plant construction, trade, domestic
· Universally applicable
· Simple assembly
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0318.104 |
| K0318.105 |
| K0318.106 |
| K0318.108 |
| K0318.110 |
| K0318.112 |
| K0318.116 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Initial Load (N) | Max. Load (N) | D=thread | D1 (mm) | H (mm) | L=Length (mm) | N (mm) | S (mm) | T (mm) | T1 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2.46 € | 25 | 4 Days | 2 | 7 | M4 | 1.5 | 1.5 | 15 | 0.6 | 1.3 | 2 | 0.6 | ||
2.51 € | 25 | 4 Days | 3 | 10 | M5 | 2.4 | 2.3 | 18 | 0.8 | 1.5 | 2 | 0.8 | ||
2.60 € | 25 | 4 Days | 3 | 9 | M6 | 2.7 | 2.5 | 20 | 1 | 2 | 2.5 | 1 | ||
2.86 € | 10 | 4 Days | 4 | 16 | M8 | 3.5 | 3 | 22 | 1.2 | 2.5 | 3 | 1.4 | ||
3.44 € | 10 | 4 Days | 4 | 16 | M10 | 4 | 3 | 22 | 1.6 | 3 | 3.5 | 1.4 | ||
4.36 € | 10 | 4 Days | 5 | 27 | M12 | 6 | 4 | 28 | 2 | 4 | 5 | 2 | ||
5.46 € | 10 | 4 Days | 20 | 45 | M16 | 7.5 | 5 | 32 | 2.5 | 5 | 6 | 2.5 |
Loading...
Basic information
| Main material | steel | Component material | pin POM |
|---|
Configure
Basic Attributes
-
Initial Load(N)
-
D=thread
-
D1(mm)
-
H(mm)
-
L=Length(mm)
-
N(mm)
- 0.6
- 0.8
- 1
- 1.2
- 1.6
- 2
- 2.5
-
S(mm)
-
T(mm)
- 2
- 2.5
- 3
- 3.5
- 5
- 6
-
T1(mm)
- 0.6
- 0.8
- 1
- 1.4
- 2
- 2.5
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
