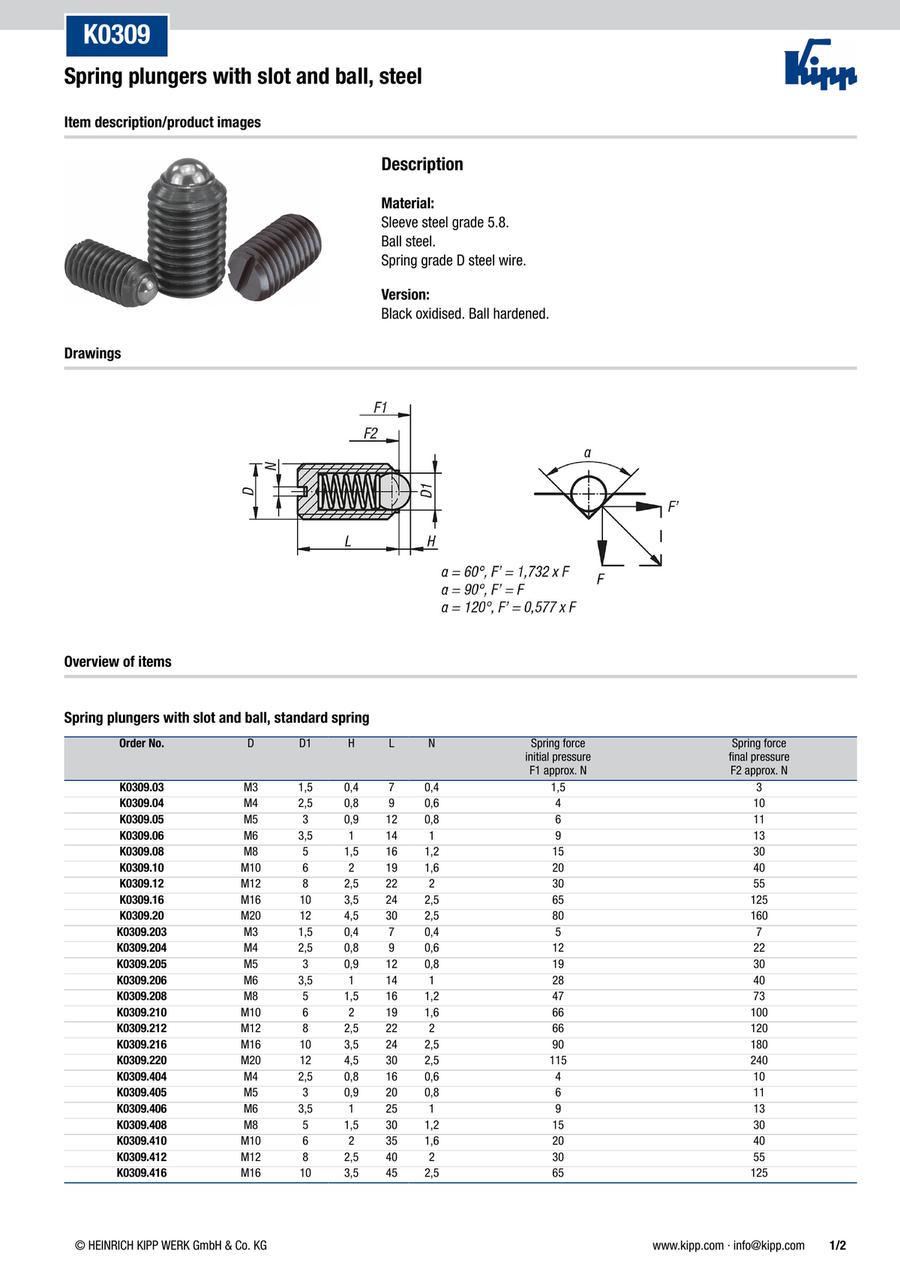

Spring plungers with slot and ball, long version, standard spring force (K0309)
· Application sectors: machine and plant construction, trade, domestic
· Universally applicable
· Simple assembly
· ball point hardened
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| K0309.404 |
| K0309.405 |
| K0309.406 |
| K0309.408 |
| K0309.410 |
| K0309.412 |
| K0309.416 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Initial Load (N) | Max. Load (N) | D=thread | D1 (mm) | H (mm) | L=Length (mm) | N (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
1.08 € | 10 | 4 Days | 4 | 10 | M4 | 2.5 | 0.8 | 16 | 0.6 | ||
1.08 € | 10 | 4 Days | 6 | 11 | M5 | 3 | 0.9 | 20 | 0.8 | ||
1.08 € | 10 | 4 Days | 9 | 13 | M6 | 3.5 | 1 | 25 | 1 | ||
1.45 € | 10 | 4 Days | 15 | 30 | M8 | 5 | 1.5 | 30 | 1.2 | ||
1.62 € | 5 | 4 Days | 20 | 40 | M10 | 6 | 2 | 35 | 1.6 | ||
2.32 € | 5 | 4 Days | 30 | 55 | M12 | 8 | 2.5 | 40 | 2 | ||
3.13 € | 5 | 4 Days | 65 | 125 | M16 | 10 | 3.5 | 45 | 2.5 |
Loading...
Basic information
| Main material | steel | Component material | ball steel | Version 1 | long |
|---|
Configure
Basic Attributes
-
Initial Load(N)
-
D=thread
-
D1(mm)
-
H(mm)
-
L=Length(mm)
-
N(mm)
- 0.6
- 0.8
- 1
- 1.2
- 1.6
- 2
- 2.5
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
