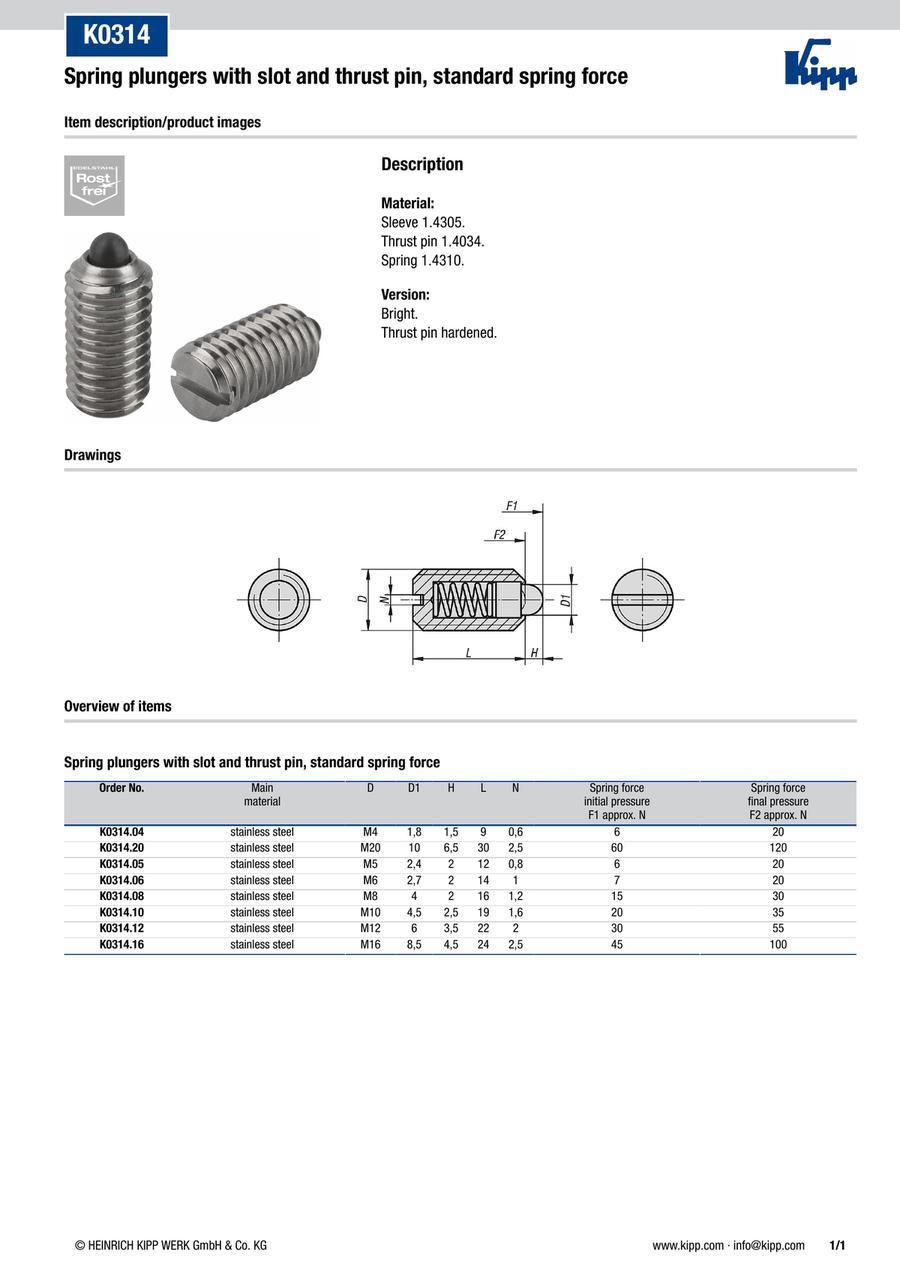

Spring plungers with slot and thrust pin, standard spring force (K0314)
· Application sectors: machine and plant construction, trade, domestic
· Universally applicable and easy to mount
· Hardened thrust pin
· Stainless steel 1.4305, 1.4034, 1.4310
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0314.04 |
| K0314.05 |
| K0314.06 |
| K0314.08 |
| K0314.10 |
| K0314.12 |
| K0314.16 |
| K0314.20 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Initial Load (N) | Max. Load (N) | D=Thread | D1 (mm) | H (mm) | L=Length (mm) | N (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
2.67 € | 10 | 4 Days | 6 | 20 | M4 | 1.8 | 1.5 | 9 | 0.6 | ||
2.65 € | 10 | 4 Days | 6 | 20 | M5 | 2.4 | 2 | 12 | 0.8 | ||
2.65 € | 10 | 4 Days | 7 | 20 | M6 | 2.7 | 2 | 14 | 1 | ||
3.48 € | 10 | 4 Days | 15 | 30 | M8 | 4 | 2 | 16 | 1.2 | ||
4.05 € | 10 | 4 Days | 20 | 35 | M10 | 4.5 | 2.5 | 19 | 1.6 | ||
5.16 € | 5 | 4 Days | 30 | 55 | M12 | 6 | 3.5 | 22 | 2 | ||
6.76 € | 5 | 4 Days | 45 | 100 | M16 | 8.5 | 4.5 | 24 | 2.5 | ||
9.13 € | 5 | 4 Days | 60 | 120 | M20 | 10 | 6.5 | 30 | 2.5 |
Loading...
Basic information
| Main material | stainless steel | Component material | pin stainless steel |
|---|
Configure
Basic Attributes
-
Initial Load(N)
-
D=Thread
-
D1(mm)
-
H(mm)
-
L=Length(mm)
-
N(mm)
- 0.6
- 0.8
- 1
- 1.2
- 1.6
- 2
- 2.5
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
