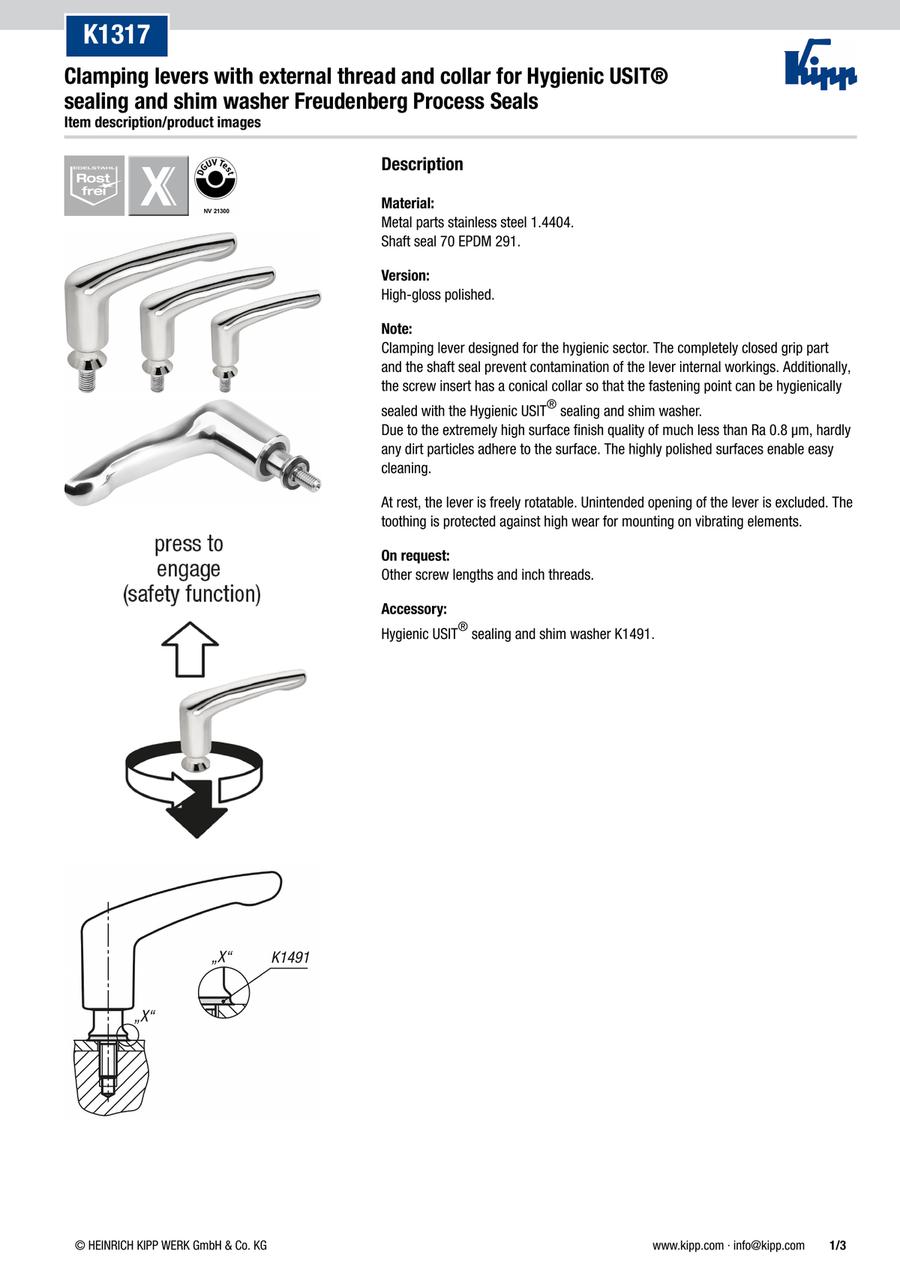

Clamping levers with external thread and collar for Hygienic USIT Freudenberg Process Seals sealing and shim washer (K1317)
· Completely sealed grip part and shaft seal ensure optimum protection against dirt and germs
· High-gloss polished surface ensures easy cleaning
· Lever engages when pushed down (safety function)
· Material: stainless steel 1.4404, very good corrosion resistance
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Size | X=thread | A (mm) | A1=Handle length (mm) | B (mm) | D (mm) | D1 (mm) | D2 (mm) | H (mm) | H1 (mm) | H2 (mm) | H3=handle height (mm) | H4 (mm) | L=thread length (mm) | No. of teeth | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
37.62 € | 1 | 4 Days | 1 | M6 | 47.4 | 58.2 | 11.8 | 14.2 | 21 | 21.7 | 36.7 | 8.8 | 27 | 50.6 | 47.6 | 20 | 16 | ||
38.12 € | 1 | 4 Days | 1 | M6 | 47.4 | 58.2 | 11.8 | 14.2 | 21 | 21.7 | 36.7 | 8.8 | 27 | 50.6 | 47.6 | 30 | 16 | ||
38.86 € | 1 | 4 Days | 1 | M6 | 47.4 | 58.2 | 11.8 | 14.2 | 21 | 21.7 | 36.7 | 8.8 | 27 | 50.6 | 47.6 | 40 | 16 | ||
39.62 € | 1 | 4 Days | 1 | M6 | 47.4 | 58.2 | 11.8 | 14.2 | 21 | 21.7 | 36.7 | 8.8 | 27 | 50.6 | 47.6 | 50 | 16 | ||
39.01 € | 1 | 4 Days | 2 | M6 | 66.5 | 77.5 | 13 | 14.2 | 21 | 22.1 | 45.7 | 10.7 | 36.8 | 64.1 | 61.1 | 20 | 16 | ||
39.54 € | 1 | 4 Days | 2 | M6 | 66.5 | 77.5 | 13 | 14.2 | 21 | 22.1 | 45.7 | 10.7 | 36.8 | 64.1 | 61.1 | 30 | 16 | ||
40.27 € | 1 | 4 Days | 2 | M6 | 66.5 | 77.5 | 13 | 14.2 | 21 | 22.1 | 45.7 | 10.7 | 36.8 | 64.1 | 61.1 | 40 | 16 | ||
41.03 € | 1 | 4 Days | 2 | M6 | 66.5 | 77.5 | 13 | 14.2 | 21 | 22.1 | 45.7 | 10.7 | 36.8 | 64.1 | 61.1 | 50 | 16 | ||
39.81 € | 1 | 4 Days | 2 | M8 | 66.5 | 77.5 | 13 | 18 | 21 | 22.1 | 45.7 | 10.7 | 36.8 | 64.1 | 61.1 | 20 | 16 | ||
40.48 € | 1 | 4 Days | 2 | M8 | 66.5 | 77.5 | 13 | 18 | 21 | 22.1 | 45.7 | 10.7 | 36.8 | 64.1 | 61.1 | 30 | 16 | ||
41.20 € | 1 | 4 Days | 2 | M8 | 66.5 | 77.5 | 13 | 18 | 21 | 22.1 | 45.7 | 10.7 | 36.8 | 64.1 | 61.1 | 40 | 16 | ||
42.09 € | 1 | 4 Days | 2 | M8 | 66.5 | 77.5 | 13 | 18 | 21 | 22.1 | 45.7 | 10.7 | 36.8 | 64.1 | 61.1 | 50 | 16 | ||
43.00 € | 1 | 4 Days | 2 | M8 | 66.5 | 77.5 | 13 | 18 | 21 | 22.1 | 45.7 | 10.7 | 36.8 | 64.1 | 61.1 | 60 | 16 | ||
43.48 € | 1 | 4 Days | 3 | M8 | 81.5 | 94 | 14.2 | 18 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 16 | 20 | ||
43.95 € | 1 | 4 Days | 3 | M8 | 81.5 | 94 | 14.2 | 18 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 20 | 20 | ||
44.44 € | 1 | 4 Days | 3 | M8 | 81.5 | 94 | 14.2 | 18 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 25 | 20 | ||
44.92 € | 1 | 4 Days | 3 | M8 | 81.5 | 94 | 14.2 | 18 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 30 | 20 | ||
45.43 € | 1 | 4 Days | 3 | M8 | 81.5 | 94 | 14.2 | 18 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 35 | 20 | ||
45.92 € | 1 | 4 Days | 3 | M8 | 81.5 | 94 | 14.2 | 18 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 40 | 20 | ||
46.93 € | 1 | 4 Days | 3 | M8 | 81.5 | 94 | 14.2 | 18 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 50 | 20 | ||
47.94 € | 1 | 4 Days | 3 | M8 | 81.5 | 94 | 14.2 | 18 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 60 | 20 | ||
44.87 € | 1 | 4 Days | 3 | M10 | 81.5 | 94 | 14.2 | 22.3 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 20 | 20 | ||
45.46 € | 1 | 4 Days | 3 | M10 | 81.5 | 94 | 14.2 | 22.3 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 25 | 20 | ||
46.02 € | 1 | 4 Days | 3 | M10 | 81.5 | 94 | 14.2 | 22.3 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 30 | 20 | ||
46.61 € | 1 | 4 Days | 3 | M10 | 81.5 | 94 | 14.2 | 22.3 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 35 | 20 | ||
47.21 € | 1 | 4 Days | 3 | M10 | 81.5 | 94 | 14.2 | 22.3 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 40 | 20 | ||
48.37 € | 1 | 4 Days | 3 | M10 | 81.5 | 94 | 14.2 | 22.3 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 50 | 20 | ||
49.57 € | 1 | 4 Days | 3 | M10 | 81.5 | 94 | 14.2 | 22.3 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 60 | 20 | ||
46.61 € | 1 | 4 Days | 3 | M12 | 81.5 | 94 | 14.2 | 26.6 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 25 | 20 | ||
47.52 € | 1 | 4 Days | 3 | M12 | 81.5 | 94 | 14.2 | 26.6 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 30 | 20 | ||
48.42 € | 1 | 4 Days | 3 | M12 | 81.5 | 94 | 14.2 | 26.6 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 35 | 20 | ||
49.31 € | 1 | 4 Days | 3 | M12 | 81.5 | 94 | 14.2 | 26.6 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 40 | 20 | ||
51.12 € | 1 | 4 Days | 3 | M12 | 81.5 | 94 | 14.2 | 26.6 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 50 | 20 | ||
52.92 € | 1 | 4 Days | 3 | M12 | 81.5 | 94 | 14.2 | 26.6 | 23.6 | 24.9 | 54.7 | 12.1 | 44 | 77 | 73.5 | 60 | 20 |
Loading...
Basic information
| Main Body Material | Stainless Steel | Steel code | 1.4404 | Surface finish body | polished |
|---|---|---|---|---|---|
| Component material | 70 EPDM 291 |
Configure
Basic Attributes
-
Size
-
X=thread
-
A(mm)
-
A1=Handle length(mm)
-
B(mm)
-
D(mm)
-
D1(mm)
-
D2(mm)
-
H(mm)
-
H1(mm)
-
H2(mm)
-
H3=handle height(mm)
-
H4(mm)
-
L=thread length(mm)
-
No. of teeth
- 16
- 20
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
