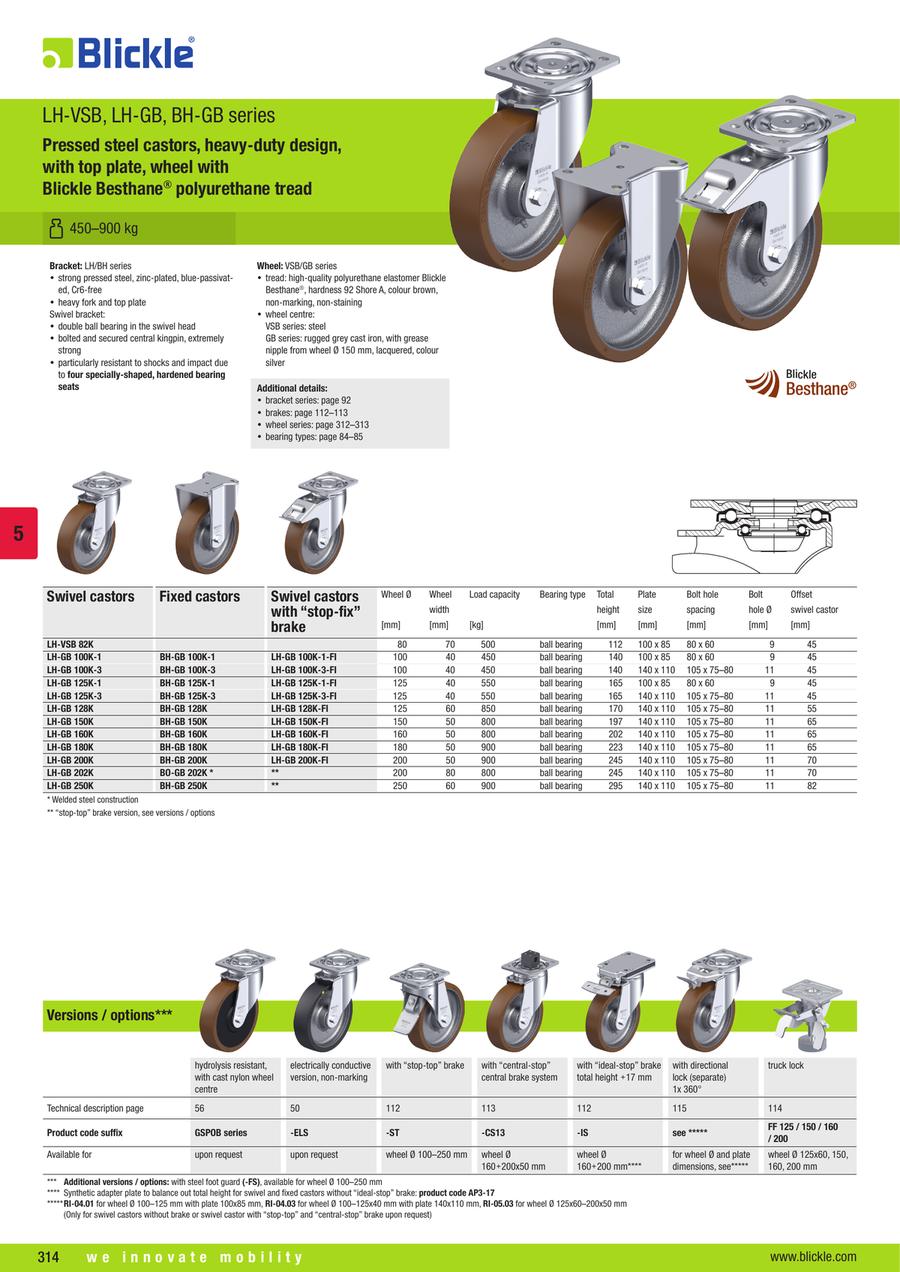

Pressed Steel Fixed Castor, BH-GB Series
Bracket: BH series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
Wheel: GB series
- tread: high-quality polyurethane elastomer Blickle Besthane®, hardness 92 Shore A, colour brown, non-marking, non-staining
- wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 150 mm, lacquered, colour silver
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
123.18 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | 140 | 1616 | 100 | 40 | 450 | ||
159.75 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 170 | 320.01 to 485.00 | 100 | 85 | 125 | 60 | 140 | 1800 | 100 | 40 | 450 | ||
144.81 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 170 | 320.01 to 485.00 | 140 | 110 | 125 | 60 | 140 | 1834 | 100 | 40 | 450 | ||
181.39 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 320.01 to 485.00 | 140 | 110 | 150 | 50 | 140 | 2083 | 100 | 40 | 450 | ||
134.40 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 485.01 to 750.00 | 100 | 85 | 150 | 50 | 165 | 2071 | 125 | 40 | 550 | ||
170.96 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 485.01 to 750.00 | 100 | 85 | 160 | 50 | 165 | 2327 | 125 | 40 | 550 | ||
142.23 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 485.01 to 750.00 | 140 | 110 | 160 | 50 | 165 | 2400 | 125 | 40 | 550 | ||
178.80 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 223 | 485.01 to 750.00 | 140 | 110 | 180 | 50 | 165 | 2696 | 125 | 40 | 550 | ||
186.00 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 223 | 750.01 or More | 140 | 110 | 180 | 50 | 170 | 3820 | 125 | 60 | 850 | ||
230.93 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | 140 | 110 | 200 | 50 | 170 | 4300 | 125 | 60 | 850 | ||
197.22 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 750.01 or More | 140 | 110 | 200 | 50 | 197 | 4076 | 150 | 50 | 800 | ||
242.68 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 295 | 750.01 or More | 140 | 110 | 250 | 60 | 197 | 4710 | 150 | 50 | 800 | ||
202.77 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 295 | 750.01 or More | 140 | 110 | 250 | 60 | 202 | 4032 | 160 | 50 | 800 | ||
248.21 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 140 | 750.01 or More | 140 | 110 | 100 | 40 | 202 | 4793 | 160 | 50 | 800 | ||
231.34 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 140 | 750.01 or More | 140 | 110 | 100 | 40 | 223 | 4912 | 180 | 50 | 900 | ||
277.83 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 140 | 750.01 or More | 140 | 110 | 100 | 40 | 223 | 5602 | 180 | 50 | 900 | ||
221.47 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 140 | 750.01 or More | 140 | 110 | 100 | 40 | 245 | 5140 | 200 | 50 | 900 | ||
267.97 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 170 | 750.01 or More | 140 | 110 | 125 | 55 | 245 | 5890 | 200 | 50 | 900 | ||
358.73 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 170 | 750.01 or More | 140 | 110 | 125 | 55 | 295 | 9007 | 250 | 60 | 900 | ||
444.90 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 97 | 750.01 or More | 140 | 110 | 65 | 40 | 295 | 10000 | 250 | 60 | 900 |
Loading...
Basic information
| Wheel Material | Others | Bearing type | Ball bearing | Material (details) | Tread material: Polyurethane, Wheel body material: rugged grey cast iron |
|---|---|---|---|---|---|
| Material | Polyurethane | Product type | fixed castor | Suitable for autoclaves | no |
| Mounting type | top plate | Tread and tyre hardness | 92 Shore A | Tread color | brown |
| Wheel body color | silver | Tread hydrolysis-resistant | yes | Non-staining | yes |
| Rustproof | no | Non-marking | yes | Maximum temperature resistance(°C) | 70 |
| Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 320.01 to 485.00
- 485.01 to 750.00
- 750.01 or More
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity at 4 km/h(kg)
-
Type
- BH-GB
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
