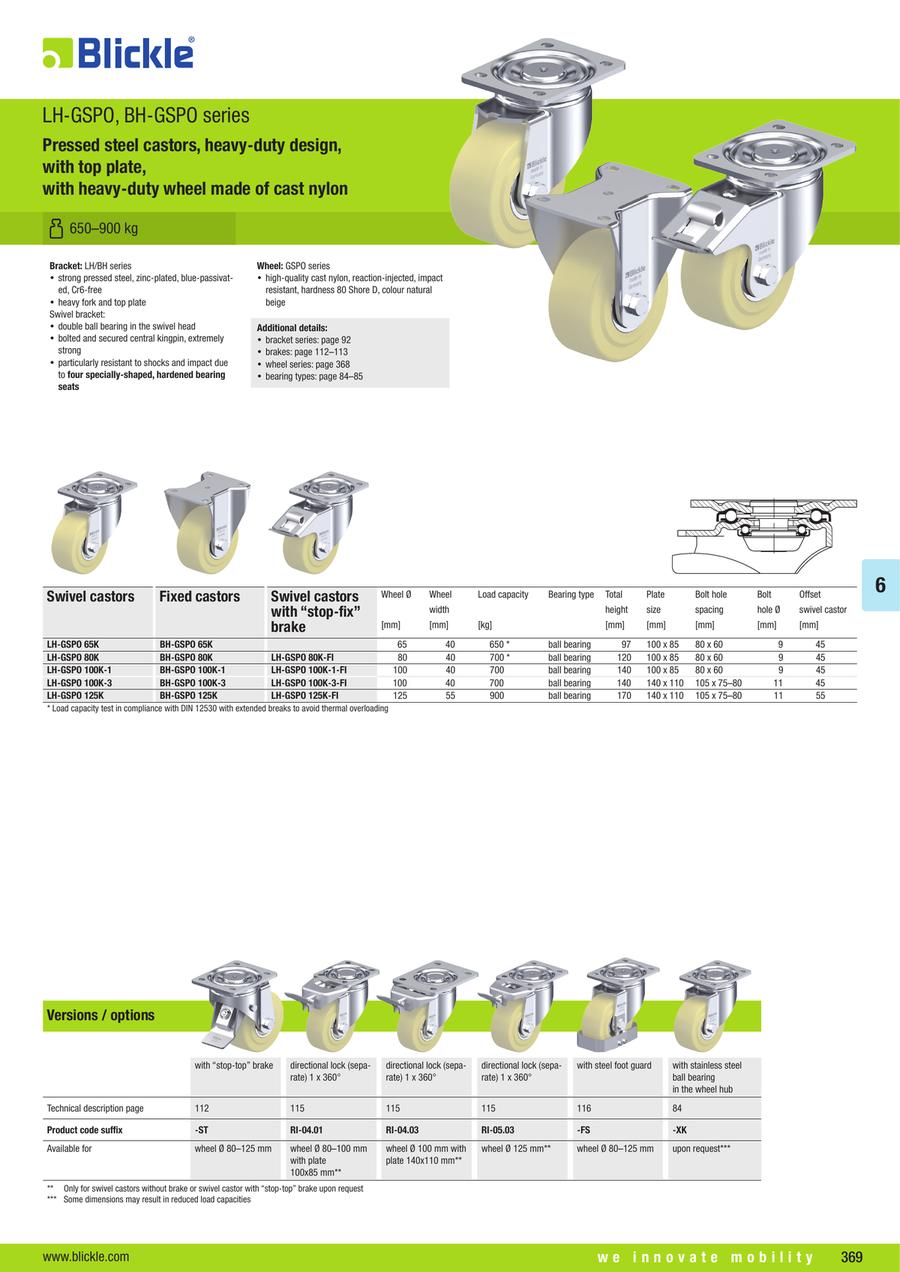

Pressed Steel Fixed Castor, BH-GSPO Series
Bracket: BH series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
Wheel: GSPO series
- high-quality cast nylon, reaction-injected, impact resistant, hardness 80 Shore D, colour natural beige
- high chemical resistance to many aggressive substances
- reduced moisture absorption
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
- consider the surface pressure on sensitive floors due to high point loads
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| BH-GSPO 65K |
| BH-GSPO 80K |
| BH-GSPO 80K-FS |
| BH-GSPO 100K-1 |
| BH-GSPO 100K-1-FS |
| BH-GSPO 100K-3 |
| BH-GSPO 100K-3-FS |
| BH-GSPO 125K |
| BH-GSPO 125K-FS |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Load capacity at 4 km/h (kg) | Load capacity at 3 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
93.97 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 485.01 to 750.00 | 100 | 85 | 160 | 50 | 97 | 820 | 65 | 40 | 650 | 650 | ||
95.66 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 485.01 to 750.00 | 100 | 85 | 160 | 50 | 120 | 1026 | 80 | 40 | 700 | 700 | ||
153.72 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 245 | 485.01 to 750.00 | 100 | 85 | 200 | 50 | 120 | 1245 | 80 | 40 | 700 | 700 | ||
124.73 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 120 | 485.01 to 750.00 | 100 | 85 | 80 | 40 | 140 | 1290 | 100 | 40 | 700 | - | ||
161.31 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 120 | 485.01 to 750.00 | 100 | 85 | 80 | 40 | 140 | 1509 | 100 | 40 | 700 | - | ||
146.36 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 170 | 485.01 to 750.00 | 140 | 110 | 125 | 50 | 140 | 1448 | 100 | 40 | 700 | - | ||
182.93 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 170 | 485.01 to 750.00 | 140 | 110 | 125 | 50 | 140 | 1697 | 100 | 40 | 700 | - | ||
224.00 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 750.01 or More | 140 | 110 | 150 | 50 | 170 | 2287 | 125 | 55 | 900 | - | ||
268.93 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 750.01 or More | 140 | 110 | 150 | 50 | 170 | 2764 | 125 | 55 | 900 | - |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Bearing type | Ball bearing | Material (details) | Tread material: Synthetic, Wheel body material: high-quality cast nylon |
|---|---|---|---|---|---|
| Material | Synthetic | Product type | fixed castor | Suitable for autoclaves | no |
| Mounting type | top plate | Tread and tyre hardness | 80 Shore D | Tread color | natural beige |
| Wheel body color | natural beige | Tread hydrolysis-resistant | no | Non-staining | yes |
| Rustproof | no | Non-marking | yes | Maximum temperature resistance(°C) | 80 |
| Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 485.01 to 750.00
- 750.01 or More
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity at 4 km/h(kg)
-
Load capacity at 3 km/h(kg)
-
Type
- BH-GSPO
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
