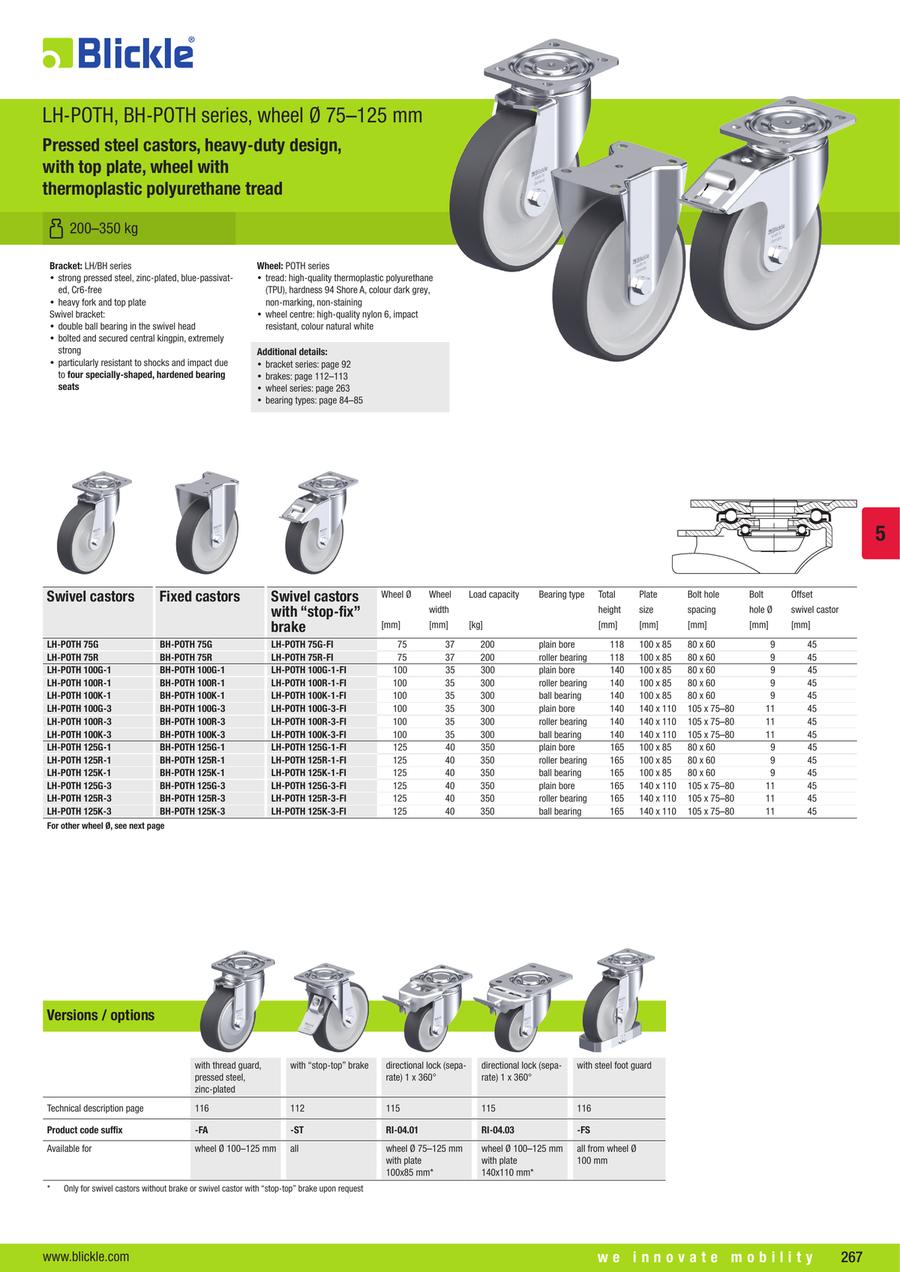

Pressed Steel Fixed Castor, BH-POTH Series
Bracket: BH series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
Wheel: POTH series
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour natural white
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Minimum temperature resistance (°C) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50.76 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 202 | 140.01 to 220.00 | 100 | 85 | 160 | 45 | plain bore | 118 | 774 | 75 | 37 | -25 | 200 | ||
52.62 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 202 | 140.01 to 220.00 | 100 | 85 | 160 | 45 | roller bearing | 118 | 779 | 75 | 37 | -25 | 200 | ||
44.82 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 100 | 85 | 100 | 35 | plain bore | 140 | 849 | 100 | 35 | -25 | 300 | ||
53.59 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 100 | 85 | 100 | 35 | plain bore | 140 | 910 | 100 | 35 | -25 | 300 | ||
90.17 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 100 | 85 | 100 | 35 | plain bore | 140 | 1158 | 100 | 35 | -25 | 300 | ||
81.38 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 100 | 85 | 100 | 35 | plain bore | 140 | 1098 | 100 | 35 | -25 | 300 | ||
66.45 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 140 | 110 | 100 | 35 | plain bore | 140 | 1014 | 100 | 35 | -25 | 300 | ||
75.22 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 140 | 110 | 100 | 35 | plain bore | 140 | 1104 | 100 | 35 | -25 | 300 | ||
111.80 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 140 | 110 | 100 | 35 | plain bore | 140 | 1323 | 100 | 35 | -25 | 300 | ||
103.01 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 140 | 110 | 100 | 35 | plain bore | 140 | 1263 | 100 | 35 | -25 | 300 | ||
58.73 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 100 | 85 | 100 | 35 | Ball bearing | 140 | 958 | 100 | 35 | -20 | 300 | ||
67.50 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 100 | 85 | 100 | 35 | Ball bearing | 140 | 1029 | 100 | 35 | -20 | 300 | ||
104.09 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 100 | 85 | 100 | 35 | Ball bearing | 140 | 1267 | 100 | 35 | -20 | 300 | ||
95.31 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 100 | 85 | 100 | 35 | Ball bearing (C) | 140 | 1207 | 100 | 35 | -20 | 300 | ||
80.37 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 140 | 110 | 100 | 35 | Ball bearing | 140 | 1160 | 100 | 35 | -20 | 300 | ||
89.14 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 140 | 110 | 100 | 35 | Ball bearing | 140 | 1219 | 100 | 35 | -20 | 300 | ||
125.72 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 140 | 110 | 100 | 35 | Ball bearing | 140 | 1469 | 100 | 35 | -20 | 300 | ||
116.93 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 140 | 110 | 100 | 35 | Ball bearing | 140 | 1418 | 100 | 35 | -20 | 300 | ||
47.41 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 140 | 220.01 to 320.00 | 100 | 85 | 100 | 35 | roller bearing | 140 | 860 | 100 | 35 | -25 | 300 | ||
56.20 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 220.01 to 320.00 | 100 | 85 | 125 | 40 | roller bearing | 140 | 931 | 100 | 35 | -25 | 300 | ||
92.78 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 220.01 to 320.00 | 100 | 85 | 125 | 40 | roller bearing | 140 | 1169 | 100 | 35 | -25 | 300 | ||
84.00 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 220.01 to 320.00 | 100 | 85 | 125 | 40 | roller bearing | 140 | 1109 | 100 | 35 | -25 | 300 | ||
69.05 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 220.01 to 320.00 | 140 | 110 | 125 | 40 | roller bearing | 140 | 1061 | 100 | 35 | -25 | 300 | ||
77.83 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 220.01 to 320.00 | 140 | 110 | 125 | 40 | roller bearing | 140 | 1140 | 100 | 35 | -25 | 300 | ||
114.40 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 220.01 to 320.00 | 140 | 110 | 125 | 40 | roller bearing | 140 | 1370 | 100 | 35 | -25 | 300 | ||
105.64 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 220.01 to 320.00 | 140 | 110 | 125 | 40 | roller bearing | 140 | 1310 | 100 | 35 | -25 | 300 | ||
51.66 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | 165 | 1004 | 125 | 40 | -25 | 350 | ||
61.35 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | 165 | 1136 | 125 | 40 | -25 | 350 | ||
97.94 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | 165 | 1387 | 125 | 40 | -25 | 350 | ||
88.25 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | plain bore | 165 | 1300 | 125 | 40 | -25 | 350 | ||
59.50 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | 165 | 1334 | 125 | 40 | -25 | 350 | ||
69.19 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | 165 | 1425 | 125 | 40 | -25 | 350 | ||
105.77 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | 165 | 1717 | 125 | 40 | -25 | 350 | ||
96.09 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | plain bore | 165 | 1630 | 125 | 40 | -25 | 350 | ||
66.75 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | Ball bearing | 165 | 1132 | 125 | 40 | -20 | 350 | ||
76.43 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | Ball bearing | 165 | 1043 | 125 | 40 | -20 | 350 | ||
113.02 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | Ball bearing | 165 | 1400 | 125 | 40 | -20 | 350 | ||
103.33 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | Ball bearing (C) | 165 | 1428 | 125 | 40 | -20 | 350 | ||
74.60 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | Ball bearing | 165 | 1465 | 125 | 40 | -20 | 350 | ||
84.29 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | Ball bearing | 165 | 1552 | 125 | 40 | -20 | 350 | ||
120.85 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | Ball bearing | 165 | 1848 | 125 | 40 | -20 | 350 | ||
111.17 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 140 | 110 | 125 | 40 | Ball bearing | 165 | 1738 | 125 | 40 | -20 | 350 | ||
54.55 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 165 | 320.01 to 485.00 | 100 | 85 | 125 | 40 | roller bearing | 165 | 1047 | 125 | 40 | -25 | 350 | ||
64.23 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 320.01 to 485.00 | 100 | 85 | 150 | 45 | roller bearing | 165 | 1068 | 125 | 40 | -25 | 350 | ||
100.81 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 320.01 to 485.00 | 100 | 85 | 150 | 45 | roller bearing | 165 | 1430 | 125 | 40 | -25 | 350 | ||
91.13 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 320.01 to 485.00 | 100 | 85 | 150 | 45 | roller bearing | 165 | 1343 | 125 | 40 | -25 | 350 | ||
62.40 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 320.01 to 485.00 | 140 | 110 | 150 | 45 | roller bearing | 165 | 1356 | 125 | 40 | -25 | 350 | ||
72.08 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 320.01 to 485.00 | 140 | 110 | 150 | 45 | roller bearing | 165 | 1443 | 125 | 40 | -25 | 350 | ||
108.65 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 320.01 to 485.00 | 140 | 110 | 150 | 45 | roller bearing | 165 | 1739 | 125 | 40 | -25 | 350 | ||
98.96 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 320.01 to 485.00 | 140 | 110 | 150 | 45 | roller bearing | 165 | 1652 | 125 | 40 | -25 | 350 | ||
76.58 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 485.01 to 750.00 | 140 | 110 | 150 | 45 | plain bore | 197 | 1736 | 150 | 45 | -25 | 500 | ||
87.62 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 485.01 to 750.00 | 140 | 110 | 150 | 45 | plain bore | 197 | 1894 | 150 | 45 | -25 | 500 | ||
133.07 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 485.01 to 750.00 | 140 | 110 | 150 | 45 | plain bore | 197 | 2507 | 150 | 45 | -25 | 500 | ||
122.04 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 485.01 to 750.00 | 140 | 110 | 150 | 45 | plain bore | 197 | 2370 | 150 | 45 | -25 | 500 | ||
92.75 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 197 | 485.01 to 750.00 | 140 | 110 | 150 | 45 | Ball bearing | 197 | 1989 | 150 | 45 | -20 | 500 | ||
103.80 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 485.01 to 750.00 | 140 | 110 | 160 | 45 | Ball bearing | 197 | 2168 | 150 | 45 | -20 | 500 | ||
149.25 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 485.01 to 750.00 | 140 | 110 | 160 | 45 | Ball bearing | 197 | 2760 | 150 | 45 | -20 | 500 | ||
138.22 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 485.01 to 750.00 | 140 | 110 | 160 | 45 | Ball bearing | 197 | 2590 | 150 | 45 | -20 | 500 | ||
83.42 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 485.01 to 750.00 | 140 | 110 | 160 | 45 | roller bearing | 197 | 1909 | 150 | 45 | -25 | 500 | ||
94.47 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 202 | 485.01 to 750.00 | 140 | 110 | 160 | 45 | roller bearing | 197 | 2018 | 150 | 45 | -25 | 500 |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Material (details) | Tread material: Polyurethane, Wheel body material: high-quality nylon 6 | Material | Polyurethane |
|---|---|---|---|---|---|
| Product type | fixed castor | Suitable for autoclaves | no | Mounting type | top plate |
| Tread and tyre hardness | 94 Shore A | Tread color | dark grey | Wheel body color | natural white |
| Tread hydrolysis-resistant | no | Non-staining | yes | Rustproof | no |
| Non-marking | yes | Maximum temperature resistance(°C) | 70 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 140.01 to 220.00
- 220.01 to 320.00
- 320.01 to 485.00
- 485.01 to 750.00
- 750.01 or More
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing
- Ball bearing (C)
- plain bore
- roller bearing
-
Total height(mm)
-
Weight(g)
- 774
- 779
- 849
- 860
- 910
- 931
- 958
- 1004
- 1014
- 1029
- 1043
- 1047
- 1061
- 1068
- 1098
- 1104
- 1109
- 1132
- 1136
- 1140
- 1158
- 1160
- 1169
- 1207
- 1219
- 1263
- 1267
- 1300
- 1310
- 1323
- 1334
- 1343
- 1356
- 1370
- 1387
- 1400
- 1418
- 1425
- 1428
- 1430
- 1443
- 1465
- 1469
- 1552
- 1630
- 1652
- 1717
- 1736
- 1738
- 1739
- 1832
- 1848
- 1894
- 1909
- 1913
- 1989
- 2018
- 2050
- 2087
- 2110
- 2168
- 2304
- 2370
- 2440
- 2445
- 2475
- 2507
- 2510
- 2541
- 2563
- 2590
- 2622
- 2673
- 2677
- 2690
- 2698
- 2758
- 2760
- 2932
- 2980
- 3055
- 3145
- 3180
- 3370
- 3402
- 3437
- 3553
- 3678
- 4080
- 4534
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Minimum temperature resistance(°C)
- -25
- -20
-
Load capacity at 4 km/h(kg)
-
Type
- BH-POTH
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
