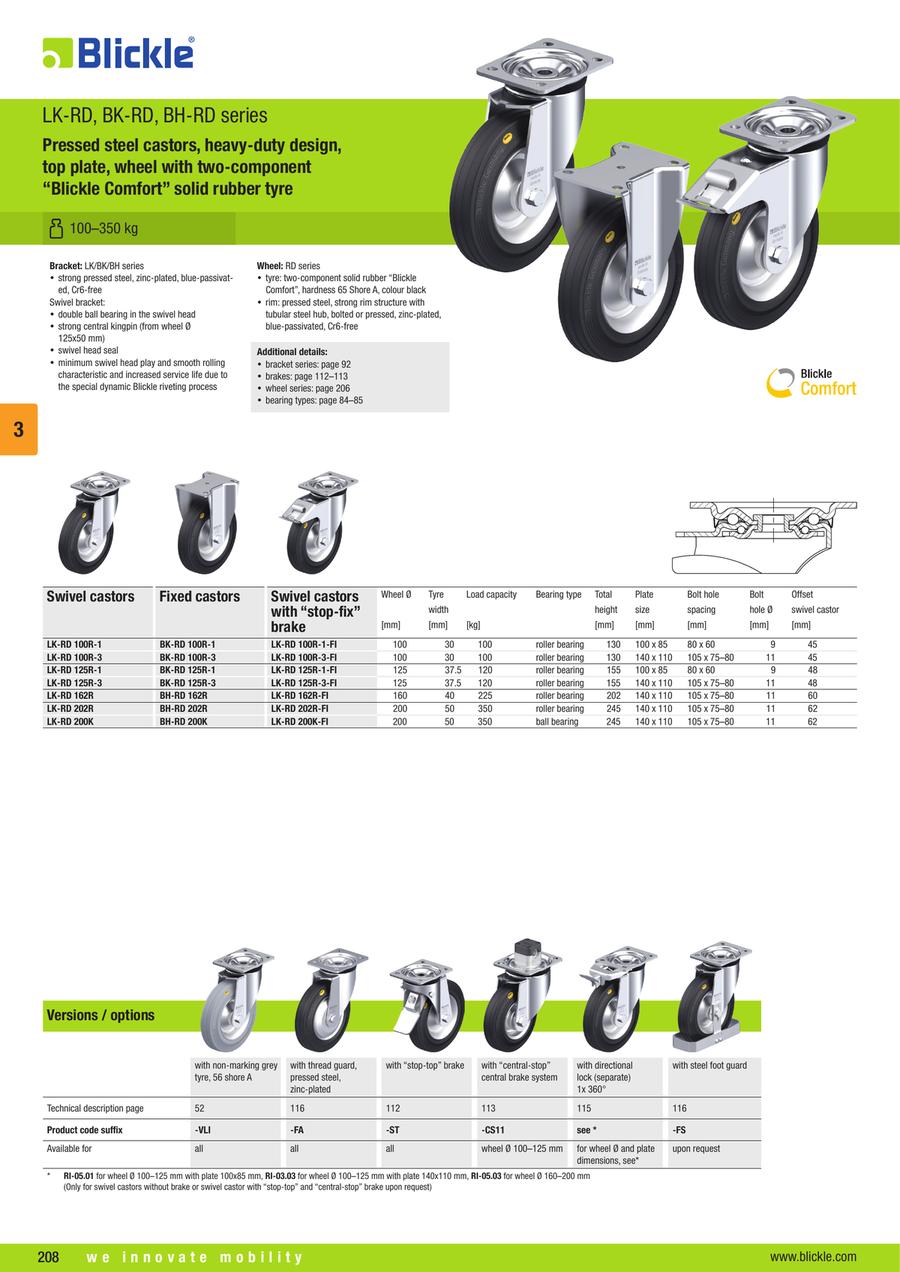

Pressed Steel Fixed Castor, BH-RD Series
Bracket: BH series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
Wheel: RD series
- tyre: two-component solid rubber "Blickle Comfort", hardness 56 Shore A, colour grey
- rim: pressed steel, strong rim structure with tubular steel hub, bolted or pressed, zinc-plated, blue-passivated, Cr6-free
- chemical resistance to many aggressive substances, except oils
- operating temperature: -25 °C to +80 °C, reduced load capacity over +60 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread and tyre hardness | Tread color | Non-staining | Non-marking | Minimum temperature resistance (°C) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
78.00 € | 1 | 7 Days | 245 | 220.01 to 320.00 | 200 | 50 | roller bearing | 202 | 2320 | 160 | 40 | 65 Shore A | black | no | no | -25 | 225 | ||
87.68 € | 1 | 7 Days | 245 | 220.01 to 320.00 | 200 | 50 | roller bearing | 202 | 2407 | 160 | 40 | 65 Shore A | black | no | no | -25 | 225 | ||
90.70 € | 1 | 7 Days | 245 | 220.01 to 320.00 | 200 | 50 | roller bearing | 202 | 2362 | 160 | 40 | 56 Shore A | grey | yes | yes | -25 | 225 | ||
100.38 € | 1 | 7 Days | 245 | 220.01 to 320.00 | 200 | 50 | roller bearing | 202 | 2462 | 160 | 40 | 56 Shore A | grey | yes | yes | -25 | 225 | ||
131.43 € | 1 | 7 Days | 245 | 320.01 to 485.00 | 200 | 50 | Ball bearing | 245 | 3378 | 200 | 50 | 65 Shore A | black | no | no | -20 | 350 | ||
142.48 € | 1 | 7 Days | 295 | 320.01 to 485.00 | 250 | 60 | Ball bearing | 245 | 3588 | 200 | 50 | 65 Shore A | black | no | no | -20 | 350 | ||
156.83 € | 1 | 7 Days | 295 | 320.01 to 485.00 | 250 | 60 | Ball bearing | 245 | 3587 | 200 | 50 | 56 Shore A | grey | yes | yes | -20 | 350 | ||
167.86 € | 1 | 23 Days | 295 | 320.01 to 485.00 | 250 | 60 | Ball bearing | 245 | 3653 | 200 | 50 | 56 Shore A | grey | yes | yes | -20 | 350 | ||
103.45 € | 1 | 7 Days | 295 | 320.01 to 485.00 | 250 | 60 | roller bearing | 245 | 3175 | 200 | 50 | 65 Shore A | black | no | no | -25 | 350 | ||
114.50 € | 1 | 23 Days | 140 | 320.01 to 485.00 | 100 | 45 | roller bearing | 245 | 3240 | 200 | 50 | 65 Shore A | black | no | no | -25 | 350 | ||
128.85 € | 1 | 7 Days | 140 | 320.01 to 485.00 | 100 | 45 | roller bearing | 245 | 3330 | 200 | 50 | 56 Shore A | grey | yes | yes | -25 | 350 | ||
139.88 € | 1 | 23 Days | 140 | 320.01 to 485.00 | 100 | 45 | roller bearing | 245 | 3388 | 200 | 50 | 56 Shore A | grey | yes | yes | -25 | 350 | ||
182.89 € | 1 | 7 Days | 140 | 320.01 to 485.00 | 100 | 45 | roller bearing | 295 | 4726 | 250 | 60 | 65 Shore A | black | no | no | -25 | 450 | ||
195.33 € | 1 | 23 Days | 170 | 320.01 to 485.00 | 125 | 53 | roller bearing | 295 | 5170 | 250 | 60 | 65 Shore A | black | no | no | -25 | 450 | ||
226.05 € | 1 | 7 Days | 170 | 320.01 to 485.00 | 125 | 53 | roller bearing | 295 | 5100 | 250 | 60 | 56 Shore A | grey | yes | yes | -25 | 450 | ||
238.50 € | 1 | 7 Days | 170 | 320.01 to 485.00 | 125 | 50 | roller bearing | 295 | 5365 | 250 | 60 | 56 Shore A | grey | yes | yes | -25 | 450 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Steel | Plate Length L(mm) | 140 |
|---|---|---|---|---|---|
| Plate Width W(mm) | 110 | Material (details) | Tread material: Rubber, Wheel body material: pressed steel | Material | Rubber |
| Product type | fixed castor | Suitable for autoclaves | no | Mounting type | top plate |
| Tread hydrolysis-resistant | no | Rustproof | no | Maximum temperature resistance(°C) | 80 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 220.01 to 320.00
- 320.01 to 485.00
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing
- roller bearing
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Tread and tyre hardness
- 56 Shore A
- 65 Shore A
-
Tread color
-
Non-staining
- no
- yes
-
Non-marking
- no
- yes
-
Minimum temperature resistance(°C)
- -25
- -20
-
Load capacity at 4 km/h(kg)
-
Type
- BH-RD
Filter by standard shipping days
-
- All
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
