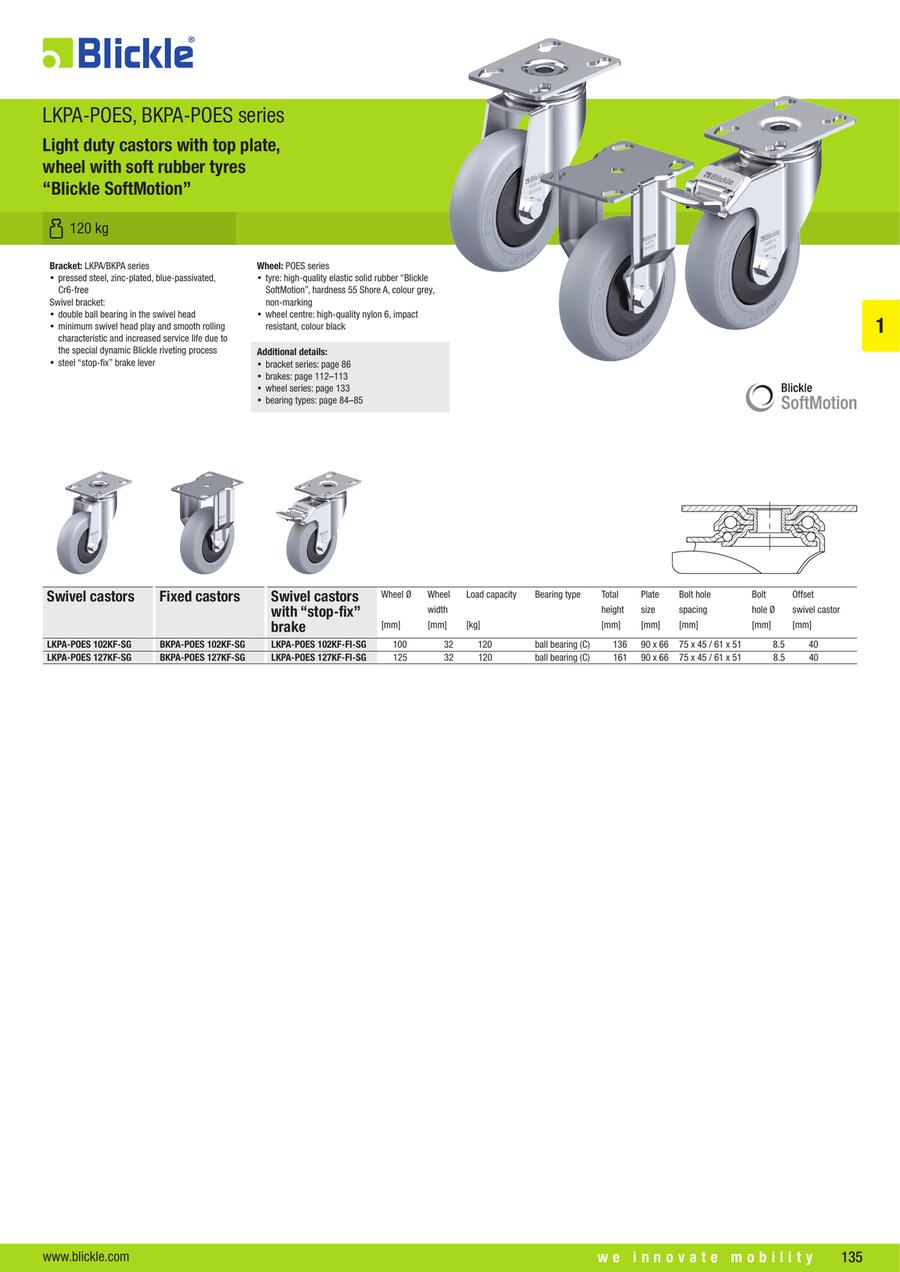

Light Duty Fixed Castor, BKPA-POES Series
Light Duty Fixed Castor, with Top Plate Fitting, Wheel, with 'Blickle Softmotion' Soft Rubber Tyre, with Nylon Wheel Centre, Non-Marking, Grey, with Synthetic Thread Guard
Bracket: BKPA series
Bracket: BKPA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Wheel: POES series
- tyre: high-quality elastic solid rubber "Blickle SoftMotion", hardness 55 Shore A, colour grey, non-marking
- wheel centre: high-quality nylon 6, impact resistant, colour black
- with synthetic thread guard, large
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| BKPA-POES 102KF-SG |
| BKPA-POES 127KF-SG |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel Characteristics | Total height (mm) | Weight (g) | Wheel diameter (mm) | |
|---|---|---|---|---|---|---|---|---|
40.15 € | 1 | 7 Days | Conductivity | 136 | 522 | 100 | ||
44.20 € | 1 | 7 Days | - | 161 | 626 | 125 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Mounting Height H(mm) | 155 | Load Range(daN) | 80.01 to 140.00 |
|---|---|---|---|---|---|
| Wheel Material | Engineering Plastics | Plate Length L(mm) | 90 | Plate Width W(mm) | 66 |
| Wheel Dia. D(mm) | 125 | Wheel Width B(mm) | 32 | Bearing type | Ball bearing (C) |
| Material (details) | Tread material: Rubber, Wheel body material: high-quality nylon 6 | Material | Rubber | Product type | fixed castor |
| Wheel width(mm) | 32 | Suitable for autoclaves | no | Mounting type | top plate |
| Tread and tyre hardness | 55 Shore A | Tread color | grey | Wheel body color | black |
| Tread hydrolysis-resistant | no | Non-staining | yes | Rustproof | no |
| Non-marking | yes | Maximum temperature resistance(°C) | 80 | Minimum temperature resistance(°C) | -20 |
| Load capacity at 3 km/h(kg) | 120 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
