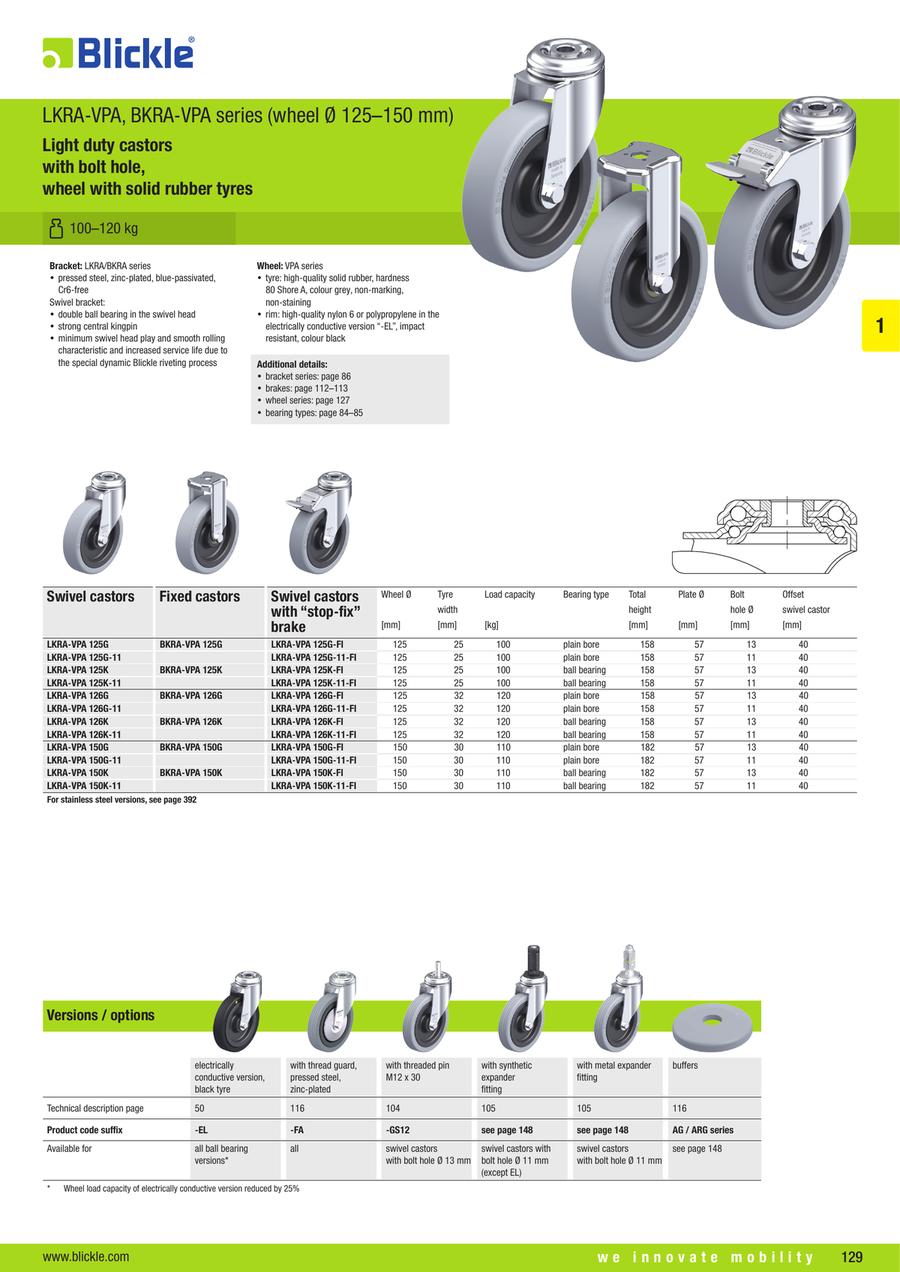

Light Duty Fixed Castor, BKRA-VPA Series
Bracket: BKRA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
Wheel: VPA series
- tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
- rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Material (details) | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread color | Non-staining | Non-marking | Load capacity at 3 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16.58 € | 1 | 7 Days | 130 | 35.01 to 80.00 | - | 100 | 30 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 108 | 299 | 80 | 25 | grey | yes | yes | 80 | ||
21.62 € | 1 | 7 Days | 130 | 35.01 to 80.00 | - | 100 | 30 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 108 | 317 | 80 | 25 | grey | yes | yes | 80 | ||
20.24 € | 1 | 5 Days | 130 | 35.01 to 80.00 | - | 100 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 108 | 353 | 80 | 25 | grey | yes | yes | 80 | ||
25.03 € | 1 | 7 Days | 130 | 35.01 to 80.00 | - | 100 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 108 | 334 | 80 | 25 | black | no | no | 60 | ||
30.08 € | 1 | 7 Days | 130 | 35.01 to 80.00 | - | 100 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 108 | 347 | 80 | 25 | black | no | no | 60 | ||
25.28 € | 1 | 7 Days | 130 | 35.01 to 80.00 | - | 100 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 108 | 362 | 80 | 25 | grey | yes | yes | 80 | ||
20.81 € | 1 | 7 Days | 158 | 80.01 to 140.00 | - | 125 | 25 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 133 | 436 | 100 | 32 | grey | yes | yes | 110 | ||
26.65 € | 1 | 7 Days | 158 | 80.01 to 140.00 | - | 125 | 25 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 133 | 462 | 100 | 32 | grey | yes | yes | 110 | ||
24.45 € | 1 | 5 Days | 158 | 80.01 to 140.00 | Conductivity | 125 | 25 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 133 | 494 | 100 | 32 | grey | yes | yes | 110 | ||
31.25 € | 1 | 7 Days | 158 | 35.01 to 80.00 | Conductivity | 125 | 25 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 133 | 452 | 100 | 32 | black | no | no | 80 | ||
37.08 € | 1 | 7 Days | 158 | 35.01 to 80.00 | - | 125 | 25 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 133 | 485 | 100 | 32 | black | no | no | 80 | ||
30.30 € | 1 | 7 Days | 158 | 80.01 to 140.00 | - | 125 | 32 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 133 | 508 | 100 | 32 | grey | yes | yes | 110 | ||
24.92 € | 1 | 7 Days | 158 | 80.01 to 140.00 | - | 125 | 32 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 158 | 490 | 125 | 25 | grey | yes | yes | 100 | ||
30.75 € | 1 | 7 Days | 158 | 80.01 to 140.00 | - | 125 | 32 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 158 | 535 | 125 | 25 | grey | yes | yes | 100 | ||
28.23 € | 1 | 7 Days | 158 | 80.01 to 140.00 | Conductivity | 125 | 32 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 158 | 541 | 125 | 25 | grey | yes | yes | 100 | ||
35.65 € | 1 | 7 Days | 158 | 35.01 to 80.00 | Conductivity | 125 | 32 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 158 | 500 | 125 | 25 | black | no | no | 75 | ||
41.48 € | 1 | 7 Days | 158 | 35.01 to 80.00 | - | 125 | 32 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 158 | 549 | 125 | 25 | black | no | no | 75 | ||
34.06 € | 1 | 7 Days | 182 | 80.01 to 140.00 | - | 150 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 158 | 584 | 125 | 25 | grey | yes | yes | 100 | ||
25.75 € | 1 | 7 Days | 182 | 80.01 to 140.00 | - | 150 | 30 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 158 | 552 | 125 | 32 | grey | yes | yes | 120 | ||
31.58 € | 1 | 7 Days | 182 | 80.01 to 140.00 | - | 150 | 30 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 158 | 540 | 125 | 32 | grey | yes | yes | 120 | ||
29.48 € | 1 | 7 Days | 182 | 80.01 to 140.00 | Conductivity | 150 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 158 | 577 | 125 | 32 | grey | yes | yes | 120 | ||
37.52 € | 1 | 7 Days | 182 | 80.01 to 140.00 | Conductivity | 150 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 158 | 551 | 125 | 32 | black | no | no | 95 | ||
43.35 € | 1 | 7 Days | 182 | 80.01 to 140.00 | - | 150 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 158 | 610 | 125 | 32 | black | no | no | 95 | ||
35.32 € | 1 | 7 Days | 108 | 80.01 to 140.00 | - | 80 | 25 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 158 | 645 | 125 | 32 | grey | yes | yes | 120 | ||
37.80 € | 1 | 7 Days | 108 | 80.01 to 140.00 | - | 80 | 25 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 182 | 678 | 150 | 30 | grey | yes | yes | 110 | ||
45.25 € | 1 | 7 Days | 108 | 80.01 to 140.00 | - | 80 | 25 | plain bore | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 182 | 764 | 150 | 30 | grey | yes | yes | 110 | ||
43.27 € | 1 | 7 Days | 108 | 80.01 to 140.00 | Conductivity | 80 | 25 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 182 | 724 | 150 | 30 | grey | yes | yes | 110 | ||
62.81 € | 1 | 7 Days | 108 | 80.01 to 140.00 | Conductivity | 80 | 25 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 182 | 661 | 150 | 30 | black | no | no | 100 | ||
70.27 € | 1 | 7 Days | 108 | 80.01 to 140.00 | - | 80 | 25 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality polypropylene | 182 | 753 | 150 | 30 | black | no | no | 100 | ||
50.71 € | 1 | 7 Days | 130 | 80.01 to 140.00 | - | 100 | 30 | Ball bearing | Tread material: Rubber, Wheel body material: high-quality nylon 6 | 182 | 850 | 150 | 30 | grey | yes | yes | 110 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Material | Rubber |
|---|---|---|---|---|---|
| Product type | fixed castor | Suitable for autoclaves | no | Mounting type | bolt hole |
| Tread and tyre hardness | 80 Shore A | Wheel body color | black | Tread hydrolysis-resistant | no |
| Rustproof | no | Maximum temperature resistance(°C) | 60 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
-
Wheel Characteristics
- Conductivity
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing
- plain bore
-
Material (details)
- Tread material: Rubber, Wheel body material: high-quality nylon 6
- Tread material: Rubber, Wheel body material: high-quality polypropylene
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Tread color
-
Non-staining
- no
- yes
-
Non-marking
- no
- yes
-
Load capacity at 3 km/h(kg)
-
Type
- BKRA-VPA
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
