Stainless Steel Light Duty Fixed Castor, BKRXA-PO Series
Stainless Steel Light Duty Fixed Castor, with Bolt Hole, Nylon Wheel, BKRXA-PO Series
Bracket: BKRXA series
Bracket: BKRXA series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
Wheel: PO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| BKRXA-PO 80G |
| BKRXA-PO 101G |
| BKRXA-PO 126G |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel Characteristics | Total height (mm) | Weight (g) | Wheel diameter (mm) | |
|---|---|---|---|---|---|---|---|---|
33.65 € | 1 | 7 Days | - | 108 | 259 | 80 | ||
36.23 € | 1 | 7 Days | - | 133 | 294 | 100 | ||
46.44 € | 1 | 7 Days | Conductivity | 158 | 360 | 125 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Mounting Height H(mm) | 158 | Load Range(daN) | 80.01 to 140.00 |
|---|---|---|---|---|---|
| Wheel Material | Engineering Plastics | Wheel Dia. D(mm) | 125 | Wheel Width B(mm) | 32 |
| Bearing type | plain bore | Material (details) | Tread material: Synthetic, Wheel body material: high-quality nylon 6 | Material | Synthetic |
| Product type | fixed castor | Wheel width(mm) | 32 | Suitable for autoclaves | no |
| Mounting type | bolt hole | Tread and tyre hardness | 70 Shore D | Tread color | natural white |
| Wheel body color | natural white | Tread hydrolysis-resistant | no | Non-staining | yes |
| Rustproof | yes | Non-marking | yes | Maximum temperature resistance(°C) | 80 |
| Minimum temperature resistance(°C) | -25 | Load capacity at 3 km/h(kg) | 120 |

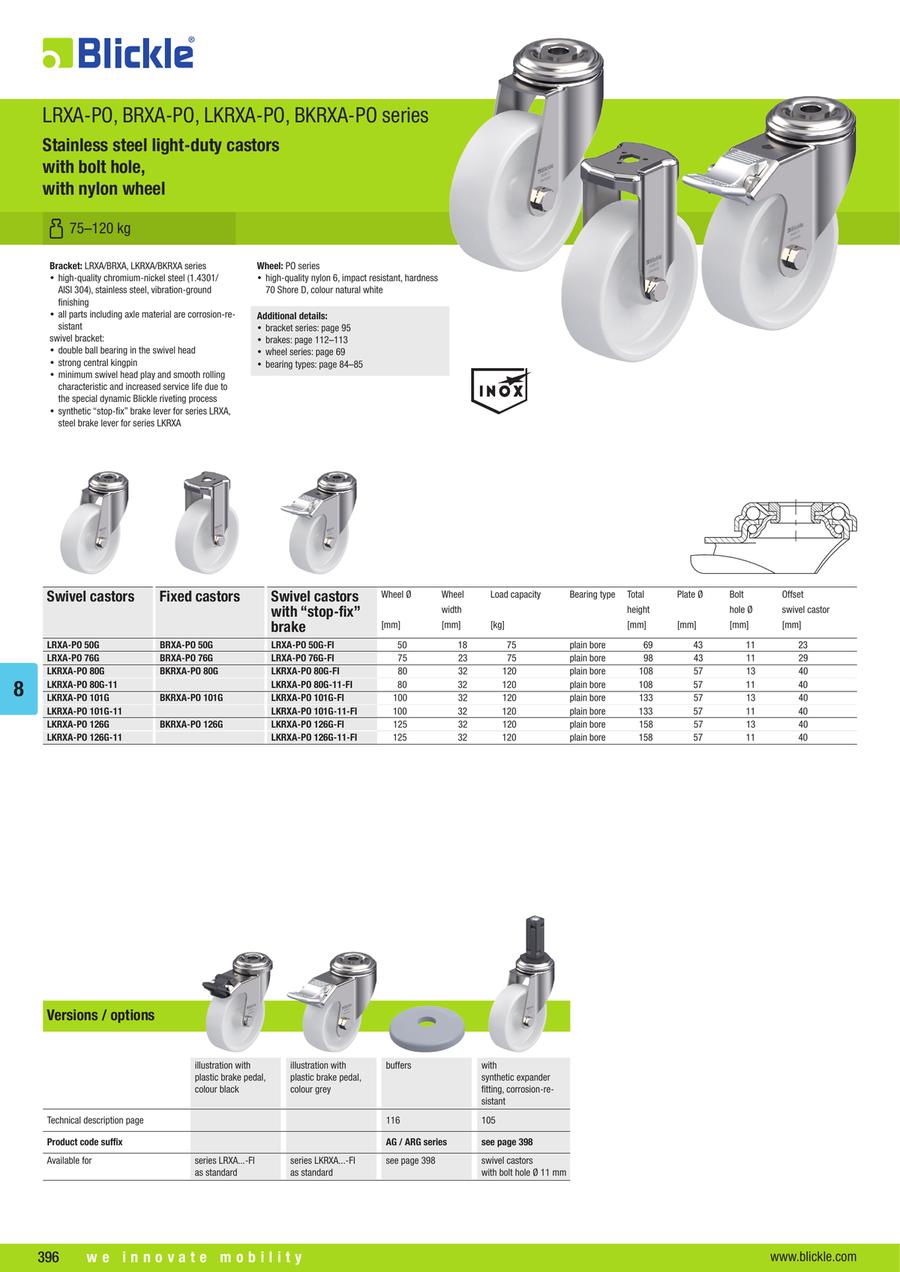

- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
