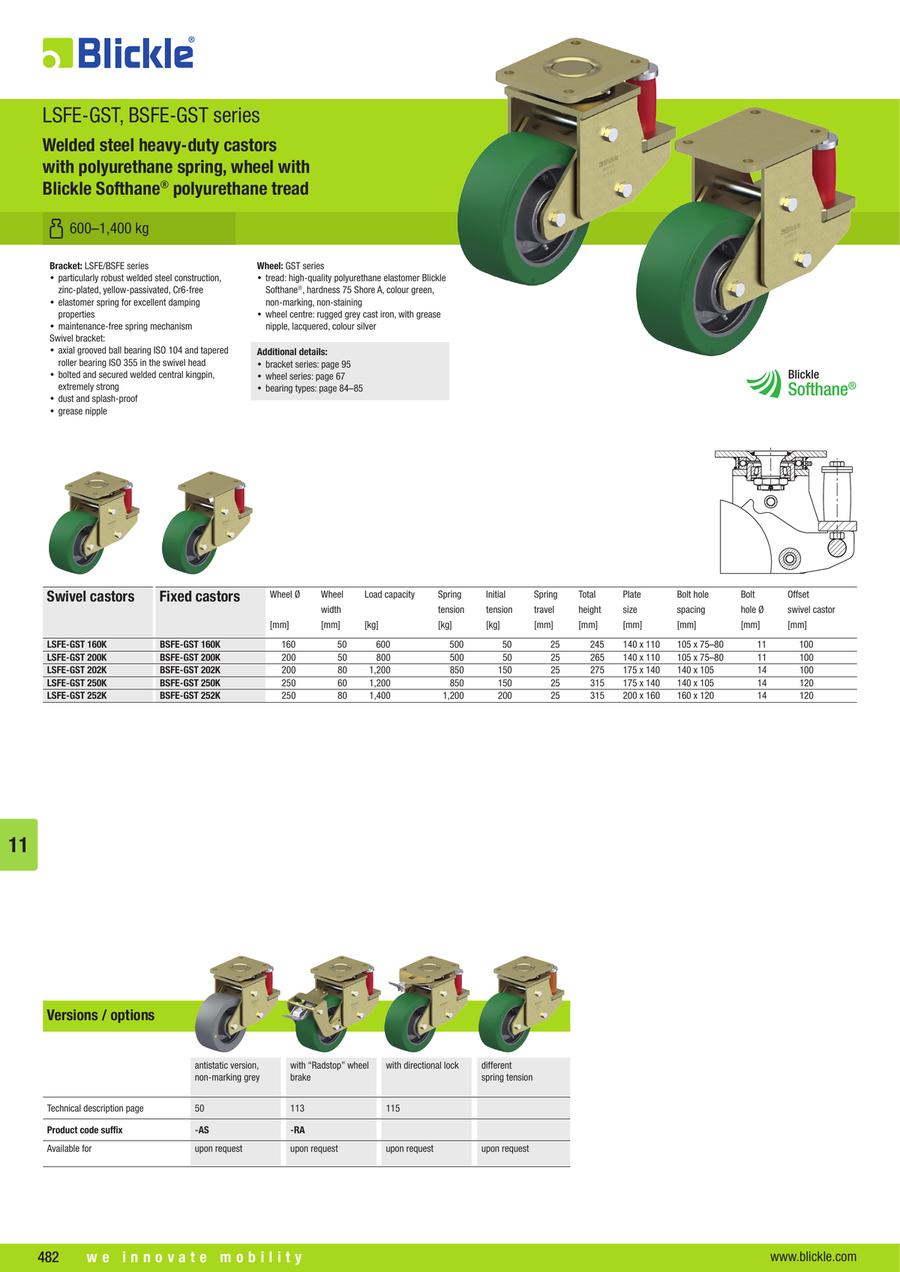

Heavy Duty Welded Steel Fixed Castor, BSFE-GST Series
Bracket: BSFE series
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- elastomer spring for excellent damping properties
- maintenance-free spring mechanism
Wheel: GST series
- tread: high-quality polyurethane elastomer Blickle Softhane®, hardness 75 Shore A, colour green, non-marking, non-staining
- wheel centre: rugged grey cast iron, with grease nipple from wheel Ø 160 mm, lacquered, colour silver
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| BSFE-GST 160K |
| BSFE-GST 200K |
| BSFE-GST 202K |
| BSFE-GST 250K |
| BSFE-GST 252K |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
381.95 € | 1 | 7 Days | 275 | 485.01 to 750.00 | 140 | 110 | 200 | 80 | 245 | 9140 | 160 | 50 | 600 | ||
383.83 € | 1 | 7 Days | 315 | 750.01 or More | 140 | 110 | 250 | 60 | 265 | 10210 | 200 | 50 | 800 | ||
753.57 € | 1 | 7 Days | 315 | Up to 35.00 | 175 | 140 | 250 | 80 | 275 | 16500 | 200 | 80 | 1200 | ||
837.29 € | 1 | 7 Days | 245 | Up to 35.00 | 175 | 140 | 160 | 50 | 315 | 17000 | 250 | 60 | 1200 | ||
1,248.50 € | 1 | 23 Days | 245 | Up to 35.00 | 200 | 160 | 160 | 50 | 315 | 24670 | 250 | 80 | 1400 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Others | Bearing type | Ball bearing |
|---|---|---|---|---|---|
| Material (details) | Tread material: Polyurethane, Wheel body material: rugged grey cast iron | Material | Polyurethane | Product type | spring-loaded fixed castor |
| Suitable for autoclaves | no | Mounting type | top plate | Tread and tyre hardness | 75 Shore A |
| Tread color | green | Wheel body color | silver | Tread hydrolysis-resistant | no |
| Non-staining | yes | Rustproof | no | Non-marking | yes |
| Maximum temperature resistance(°C) | 70 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- Up to 35.00
- 485.01 to 750.00
- 750.01 or More
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity at 4 km/h(kg)
-
Type
- BSFE-GST
Filter by standard shipping days
-
- All
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
