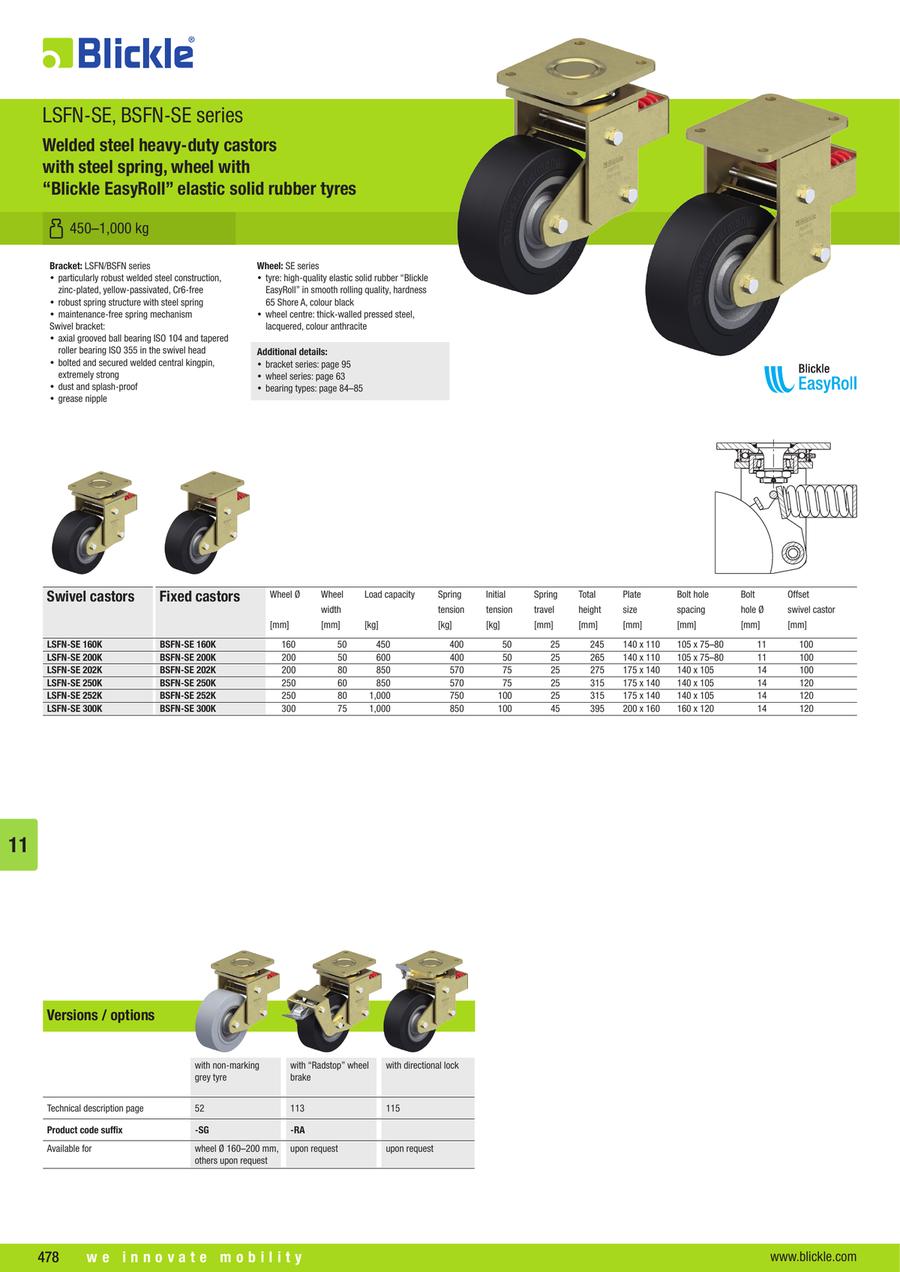

Heavy Duty Welded Steel Fixed Castor, BSFN-SE Series
Bracket: BSFN series
- particularly robust welded steel construction, zinc-plated, yellow-passivated, Cr6-free
- robust spring structure with steel spring
- maintenance-free spring mechanism
Wheel: SE series
- tyre: high-quality elastic solid rubber "Blickle EasyRoll" in smooth rolling quality, hardness 65 Shore A, colour black
- wheel centre: thick-walled pressed steel, with tubular steel hub, lacquered, colour anthracite
- chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +80 °C, temporarily up to +100 °C, reduced load capacity over +60 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| BSFN-SE 160K |
| BSFN-SE 160K-SG |
| BSFN-SE 200K |
| BSFN-SE 200K-SG |
| BSFN-SE 202K |
| BSFN-SE 202K-SG |
| BSFN-SE 250K |
| BSFN-SE 252K |
| BSFN-SE 300K |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread color | Wheel body color | Non-staining | Non-marking | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
328.77 € | 1 | 7 Days | 315 | 320.01 to 485.00 | 140 | 110 | 250 | 80 | 245 | 7960 | 160 | 50 | black | anthracite | no | no | 450 | ||
335.35 € | 1 | 7 Days | 395 | 320.01 to 485.00 | 140 | 110 | 300 | 75 | 245 | 7960 | 160 | 50 | grey | silver | yes | yes | 450 | ||
343.64 € | 1 | 5 Days | 170 | 485.01 to 750.00 | 140 | 110 | 125 | 50 | 265 | 8172 | 200 | 50 | black | anthracite | no | no | 600 | ||
351.85 € | 1 | 7 Days | 170 | 485.01 to 750.00 | 140 | 110 | 125 | 50 | 265 | 8360 | 200 | 50 | grey | silver | yes | yes | 600 | ||
553.73 € | 1 | 7 Days | 170 | 750.01 or More | 175 | 140 | 125 | 50 | 275 | 11990 | 200 | 80 | black | anthracite | no | no | 850 | ||
565.43 € | 1 | 7 Days | 170 | 750.01 or More | 175 | 140 | 125 | 50 | 275 | 11990 | 200 | 80 | grey | anthracite | yes | yes | 850 | ||
602.28 € | 1 | 23 Days | 200 | 750.01 or More | 175 | 140 | 150 | 50 | 315 | 11700 | 250 | 63 | black | anthracite | no | no | 850 | ||
670.07 € | 1 | 7 Days | 200 | Up to 35.00 | 175 | 140 | 150 | 50 | 315 | 13948 | 250 | 80 | black | anthracite | no | no | 1000 | ||
1,433.35 € | 1 | 23 Days | 200 | Up to 35.00 | 200 | 160 | 150 | 50 | 395 | 30000 | 300 | 75 | black | anthracite | no | no | 1000 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Steel | Bearing type | Ball bearing |
|---|---|---|---|---|---|
| Material (details) | Tread material: Rubber, Wheel body material: thick-walled pressed steel | Material | Rubber | Product type | spring-loaded fixed castor |
| Suitable for autoclaves | no | Mounting type | top plate | Tread and tyre hardness | 65 Shore A |
| Tread hydrolysis-resistant | no | Rustproof | no | Maximum temperature resistance(°C) | 80 |
| Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- Up to 35.00
- 320.01 to 485.00
- 485.01 to 750.00
- 750.01 or More
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Tread color
-
Wheel body color
-
Non-staining
- no
- yes
-
Non-marking
- no
- yes
-
Load capacity at 4 km/h(kg)
-
Type
- BSFN-SE
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
