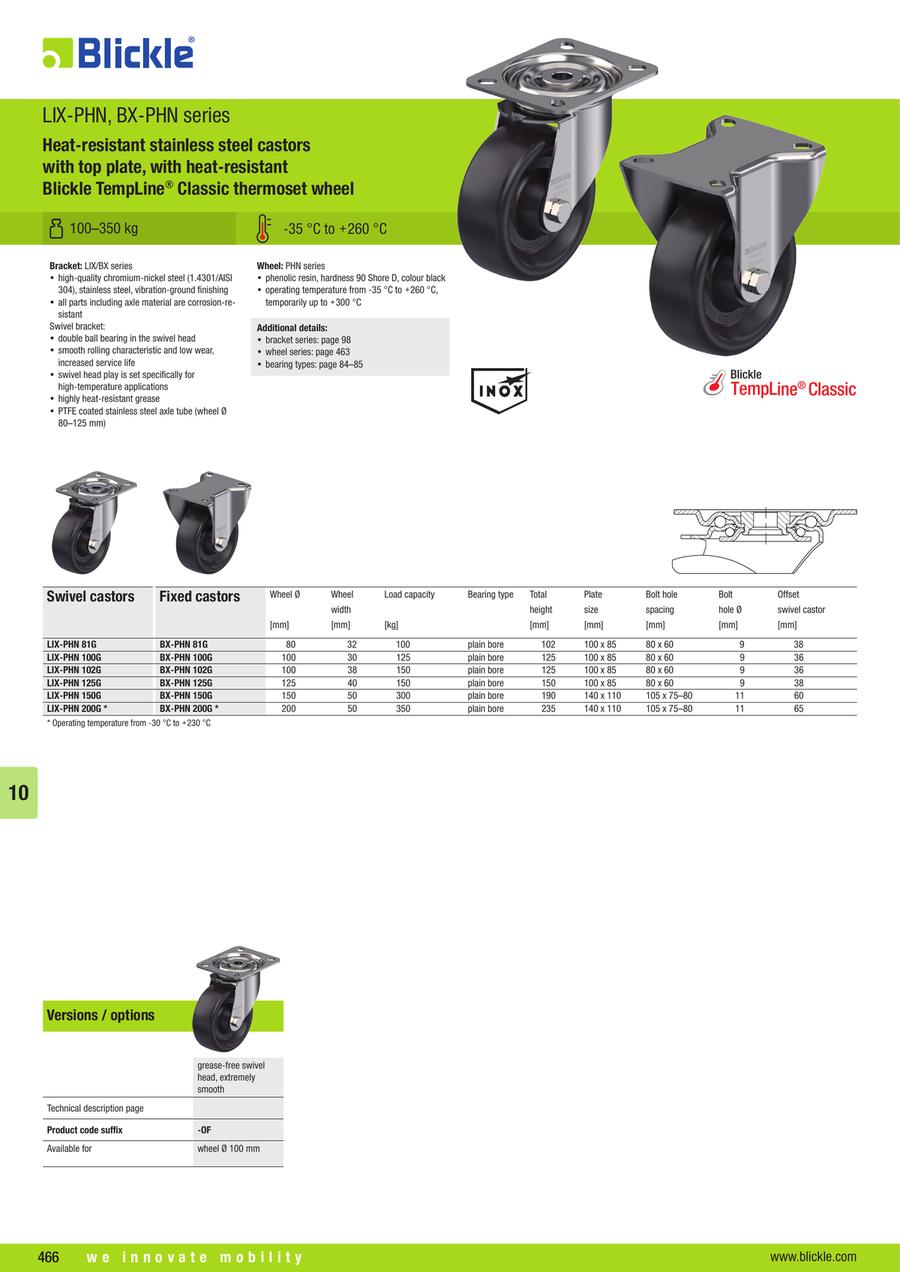

Stainless Steel Fixed Castor, BX-PHN Series
Bracket: BX series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
Wheel: PHN series
- phenolic resin, hardness 90 Shore D, colour black
- high chemical resistance to many aggressive substances
- operating temperature: -35 °C to +260 °C
- wheels are only conditionally suitable for uneven floors and crossing thresholds
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| BX-PHN 81G |
| BX-PHN 100G |
| BX-PHN 102G |
| BX-PHN 125G |
| BX-PHN 150G |
| BX-PHN 200G |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Maximum temperature resistance (°C) | Minimum temperature resistance (°C) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
59.24 € | 1 | 7 Days | 150 | 80.01 to 140.00 | - | 100 | 85 | 125 | 40 | 102 | 386 | 80 | 32 | 300 | -35 | 100 | ||
73.50 € | 1 | 7 Days | 125 | 80.01 to 140.00 | Conductivity | 100 | 85 | 100 | 37 | 125 | 610 | 100 | 30 | 300 | -35 | 125 | ||
82.51 € | 1 | 5 Days | 125 | 140.01 to 220.00 | - | 100 | 85 | 100 | 37 | 125 | 710 | 100 | 38 | 300 | -35 | 200 | ||
102.53 € | 1 | 7 Days | 125 | 140.01 to 220.00 | - | 100 | 85 | 100 | 37 | 150 | 872 | 125 | 40 | 300 | -35 | 200 | ||
179.12 € | 1 | 7 Days | 150 | 220.01 to 320.00 | - | 140 | 110 | 125 | 40 | 190 | 2133 | 150 | 50 | 300 | -35 | 300 | ||
251.48 € | 1 | 7 Days | 150 | 320.01 to 485.00 | Conductivity | 140 | 110 | 125 | 40 | 235 | 3426 | 200 | 50 | 230 | -30 | 400 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Bearing type | plain bore |
|---|---|---|---|---|---|
| Material (details) | Tread material: Synthetic, Wheel body material: Blickle TempLine® Classic phenolic resin | Material | Synthetic | Product type | fixed castor |
| Suitable for autoclaves | no | Mounting type | top plate | Tread and tyre hardness | 90 Shore D |
| Tread color | black | Wheel body color | black | Tread hydrolysis-resistant | no |
| Non-staining | yes | Rustproof | yes | Non-marking | no |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 80.01 to 140.00
- 140.01 to 220.00
- 220.01 to 320.00
- 320.01 to 485.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Maximum temperature resistance(°C)
-
Minimum temperature resistance(°C)
- -35
- -30
-
Load capacity at 4 km/h(kg)
-
Type
- BX-PHN
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
