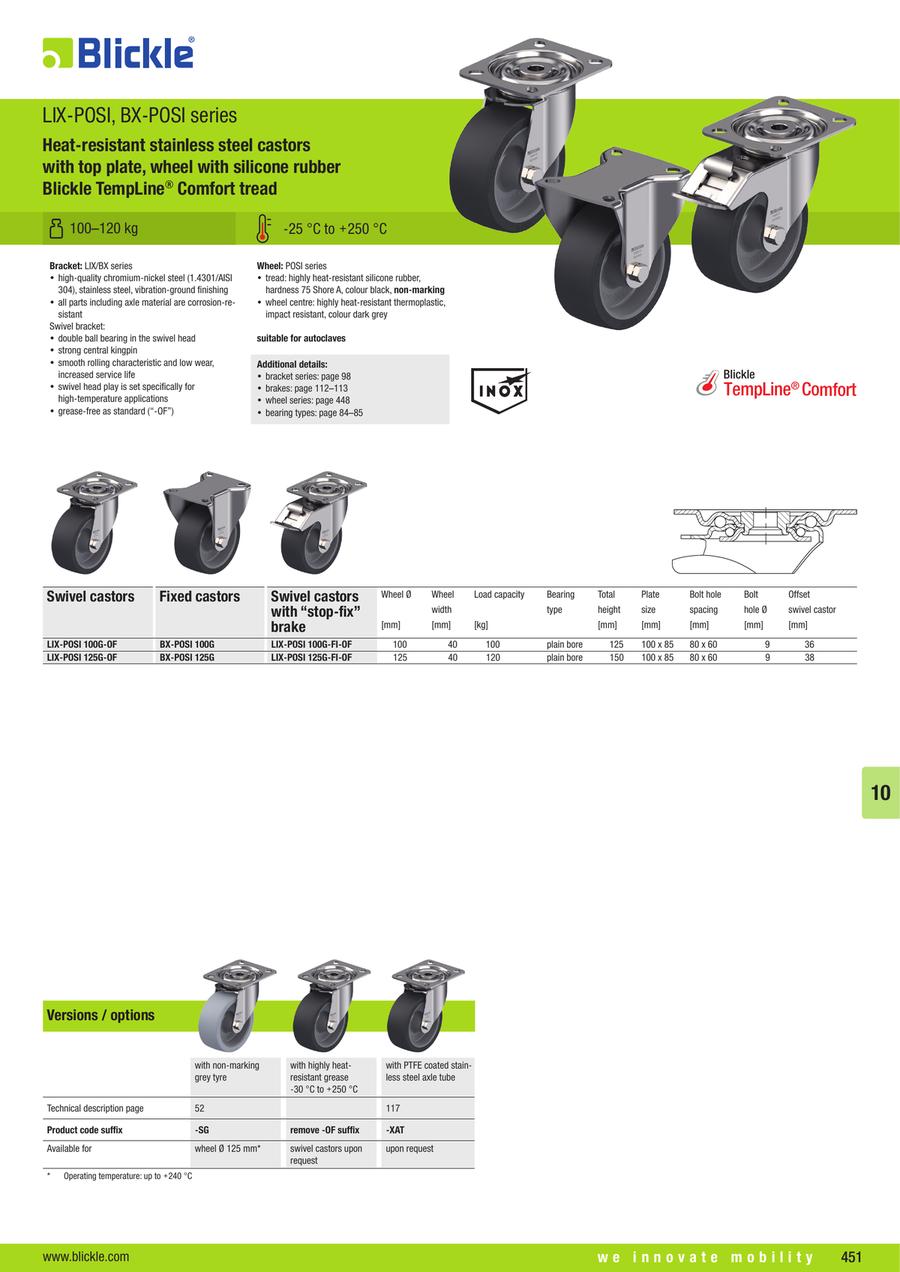

Stainless Steel Fixed Castor, BX-POSI Series
Bracket: BX series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
Wheel: POSI series
- tread: highly heat-resistant silicone rubber, hardness 75 Shore A, colour black
- wheel centre: highly heat-resistant thermoplastic, impact resistant, colour dark grey
- very high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +250 °C
- oven temperature temporarily up to +300 °C, wheel temperature must not exceed +250 °C
- suitable for autoclaves
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| BX-POSI 100G |
| BX-POSI 125G |
| BX-POSI 125G-SG |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Total height (mm) | Weight (g) | Wheel diameter (mm) | Tread color | Non-staining | Non-marking | Maximum temperature resistance (°C) | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
88.13 € | 1 | 7 Days | 150 | 125 | 40 | 125 | 644 | 100 | black | no | no | 250 | 100 | ||
125.65 € | 1 | 7 Days | 150 | 125 | 40 | 150 | 832 | 125 | black | no | no | 250 | 120 | ||
129.11 € | 1 | 7 Days | 190 | 150 | 45 | 150 | 854 | 125 | dark grey | yes | yes | 240 | 120 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Load Range(daN) | 80.01 to 140.00 | Wheel Material | Engineering Plastics |
|---|---|---|---|---|---|
| Plate Length L(mm) | 100 | Plate Width W(mm) | 85 | Bearing type | plain bore |
| Material (details) | Tread material: Rubber, Wheel body material: highly heat-resistant thermoplastic | Material | Rubber | Product type | fixed castor |
| Wheel width(mm) | 40 | Suitable for autoclaves | yes | Mounting type | top plate |
| Tread and tyre hardness | 75 Shore A | Wheel body color | dark grey | Tread hydrolysis-resistant | no |
| Rustproof | yes | Minimum temperature resistance(°C) | -25 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Tread color
-
Non-staining
- no
- yes
-
Non-marking
- no
- yes
-
Maximum temperature resistance(°C)
-
Load capacity at 4 km/h(kg)
-
Type
- BX-POSI
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
