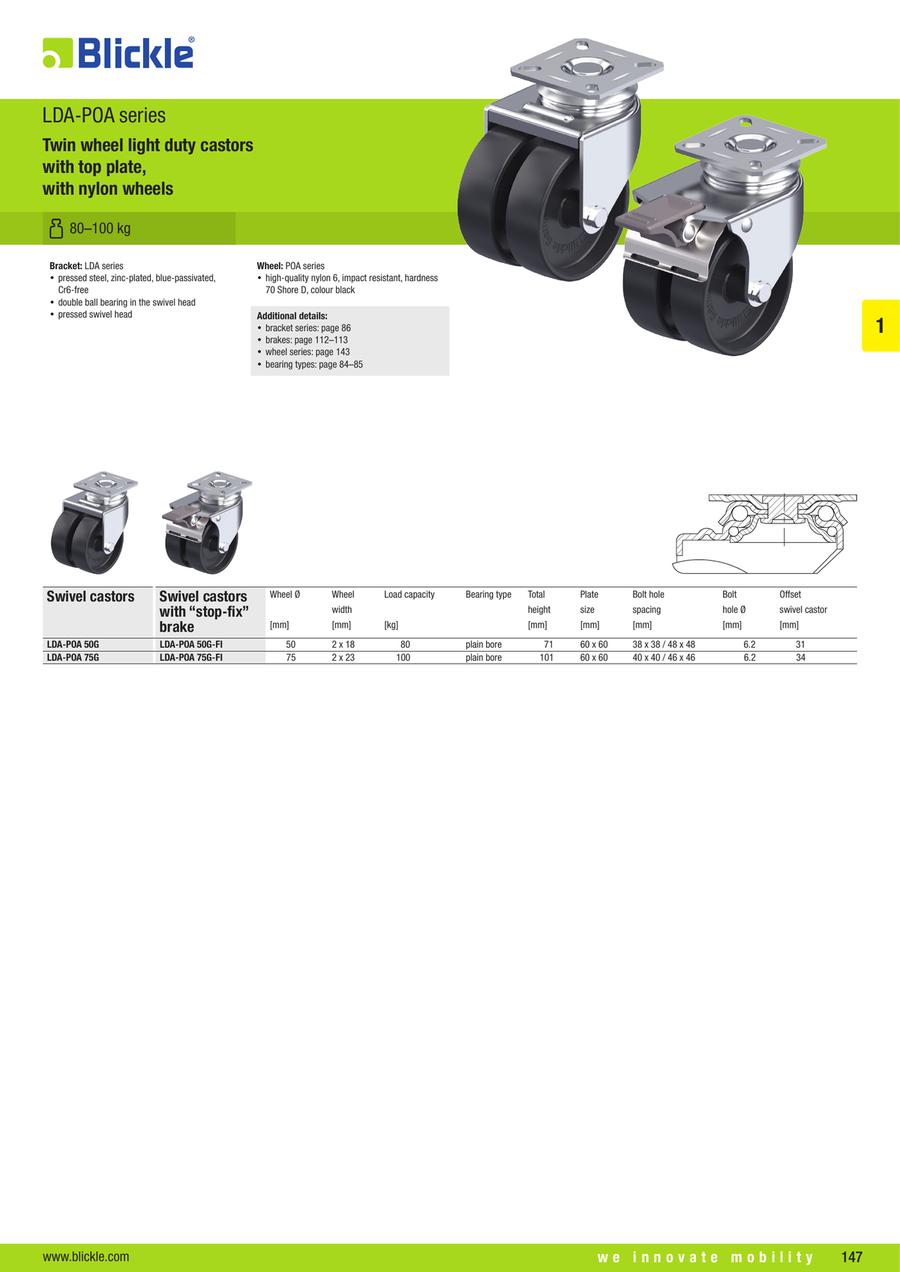

Light Duty Twin Wheel Swivel Castor, LDA-POA Series
Bracket: LDA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- pressed swivel head
Wheel: POA series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour black
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| LDA-POA 50G |
| LDA-POA 50G-FI |
| LDA-POA 75G |
| LDA-POA 75G-FI |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Wheel Dia. D (mm) | Wheel Width B (mm) | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Load capacity at 3 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
12.05 € | 1 | 5 Days | 101 | 35.01 to 80.00 | Conductivity | 75 | 25 | 71 | 237 | 50 | 18 | 80 | ||
16.35 € | 1 | 5 Days | 71 | 35.01 to 80.00 | - | 50 | 18 | 71 | 286 | 50 | 18 | 80 | ||
21.01 € | 1 | 7 Days | 71 | 80.01 to 140.00 | - | 50 | 18 | 101 | 459 | 75 | 23 | 100 | ||
27.75 € | 1 | 7 Days | 71 | 80.01 to 140.00 | - | 50 | 18 | 101 | 531 | 75 | 23 | 100 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Plate Length L(mm) | 60 |
|---|---|---|---|---|---|
| Plate Width W(mm) | 60 | Bearing type | plain bore | Material (details) | Tread material: Synthetic, Wheel body material: high-quality nylon 6 |
| Material | Synthetic | Product type | twin wheel swivel castor | Suitable for autoclaves | no |
| Mounting type | top plate | Tread and tyre hardness | 70 Shore D | Tread color | black |
| Wheel body color | black | Tread hydrolysis-resistant | no | Non-staining | yes |
| Rustproof | no | Non-marking | yes | Maximum temperature resistance(°C) | 80 |
| Minimum temperature resistance(°C) | -25 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
-
Wheel Characteristics
- Conductivity
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity at 3 km/h(kg)
-
Type
- LDA-POA
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
