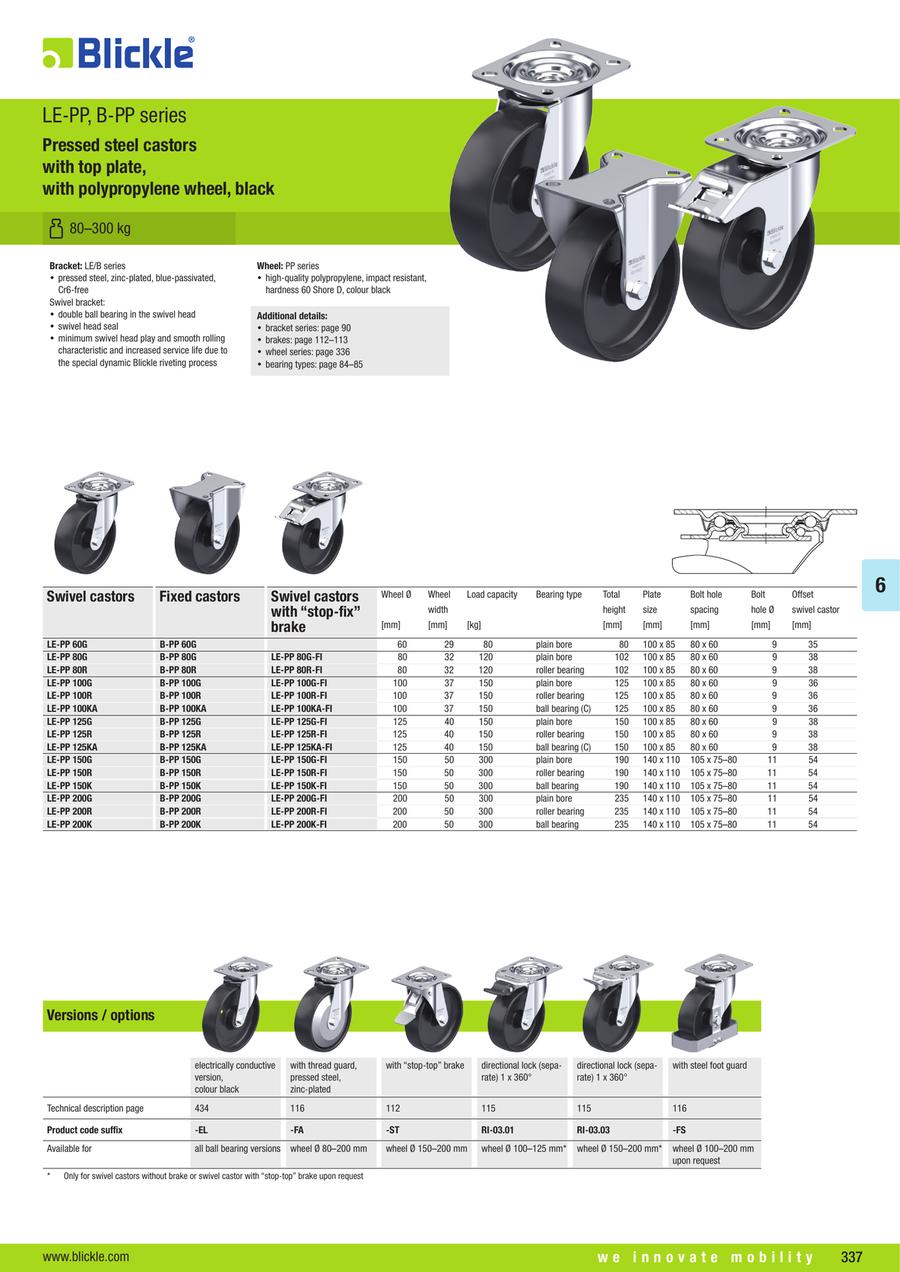

Pressed Steel Swivel Castor, LE-PP Series
Bracket: LE series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: PP series
- high-quality polypropylene, impact resistant, hardness 60 Shore D, colour black
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Plate Width W (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Non-marking | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
20.18 € | 1 | 23 Days | 150 | 35.01 to 80.00 | - | 100 | 85 | 125 | 40 | plain bore | swivel castor | 80 | 437 | 60 | 29 | yes | 80 | ||
19.43 € | 1 | 5 Days | 150 | 80.01 to 140.00 | - | 100 | 85 | 125 | 40 | plain bore | swivel castor | 102 | 473 | 80 | 32 | yes | 120 | ||
26.35 € | 1 | 7 Days | 150 | 80.01 to 140.00 | - | 100 | 85 | 125 | 40 | plain bore | swivel castor | 102 | 479 | 80 | 32 | yes | 120 | ||
28.37 € | 1 | 7 Days | 150 | 80.01 to 140.00 | - | 100 | 85 | 125 | 40 | plain bore | swivel castor with brake | 102 | 575 | 80 | 32 | yes | 120 | ||
35.27 € | 1 | 23 Days | 150 | 80.01 to 140.00 | - | 100 | 85 | 125 | 40 | plain bore | swivel castor with brake | 102 | 608 | 80 | 32 | yes | 120 | ||
22.68 € | 1 | 7 Days | 150 | 80.01 to 140.00 | - | 100 | 85 | 125 | 40 | roller bearing | swivel castor | 102 | 501 | 80 | 32 | yes | 120 | ||
29.59 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor | 102 | 500 | 80 | 32 | yes | 120 | ||
31.60 € | 1 | 7 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor with brake | 102 | 594 | 80 | 32 | yes | 120 | ||
38.52 € | 1 | 23 Days | 190 | 80.01 to 140.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor with brake | 102 | 634 | 80 | 32 | yes | 120 | ||
22.96 € | 1 | 5 Days | 150 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | plain bore | swivel castor | 125 | 556 | 100 | 37 | yes | 150 | ||
31.75 € | 1 | 7 Days | 150 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | plain bore | swivel castor | 125 | 640 | 100 | 37 | yes | 150 | ||
32.68 € | 1 | 5 Days | 150 | 140.01 to 220.00 | Conductivity | 100 | 85 | 125 | 40 | plain bore | swivel castor with brake | 125 | 681 | 100 | 37 | yes | 150 | ||
41.46 € | 1 | 7 Days | 150 | 140.01 to 220.00 | Conductivity | 100 | 85 | 125 | 40 | plain bore | swivel castor with brake | 125 | 759 | 100 | 37 | yes | 150 | ||
29.25 € | 1 | 23 Days | 150 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | Ball bearing (C) | swivel castor | 125 | 597 | 100 | 37 | yes | 150 | ||
35.78 € | 1 | 23 Days | 150 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | Ball bearing (C) | swivel castor | 125 | 603 | 100 | 37 | no | 150 | ||
44.55 € | 1 | 23 Days | 150 | 140.01 to 220.00 | Conductivity | 100 | 85 | 125 | 40 | Ball bearing (C) | swivel castor | 125 | 675 | 100 | 37 | no | 150 | ||
38.03 € | 1 | 23 Days | 150 | 140.01 to 220.00 | Conductivity | 100 | 85 | 125 | 40 | Ball bearing (C) | swivel castor | 125 | 677 | 100 | 37 | yes | 150 | ||
38.98 € | 1 | 23 Days | 150 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 125 | 710 | 100 | 37 | yes | 150 | ||
45.52 € | 1 | 23 Days | 150 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 125 | 720 | 100 | 37 | no | 150 | ||
54.30 € | 1 | 23 Days | 150 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 125 | 792 | 100 | 37 | no | 150 | ||
47.76 € | 1 | 23 Days | 150 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | Ball bearing (C) | swivel castor with brake | 125 | 790 | 100 | 37 | yes | 150 | ||
26.31 € | 1 | 7 Days | 150 | 140.01 to 220.00 | - | 100 | 85 | 125 | 40 | roller bearing | swivel castor | 125 | 592 | 100 | 37 | yes | 150 | ||
35.09 € | 1 | 7 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor | 125 | 556 | 100 | 37 | yes | 150 | ||
36.02 € | 1 | 7 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor with brake | 125 | 709 | 100 | 37 | yes | 150 | ||
44.80 € | 1 | 7 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor with brake | 125 | 780 | 100 | 37 | yes | 150 | ||
25.18 € | 1 | 5 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | plain bore | swivel castor | 150 | 639 | 125 | 40 | yes | 150 | ||
34.87 € | 1 | 7 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | plain bore | swivel castor | 150 | 805 | 125 | 40 | yes | 150 | ||
35.55 € | 1 | 7 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | plain bore | swivel castor with brake | 150 | 779 | 125 | 40 | yes | 150 | ||
45.23 € | 1 | 7 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | plain bore | swivel castor with brake | 150 | 942 | 125 | 40 | yes | 150 | ||
33.86 € | 1 | 23 Days | 190 | 140.01 to 220.00 | Conductivity | 100 | 85 | 150 | 50 | Ball bearing (C) | swivel castor | 150 | 682 | 125 | 40 | yes | 150 | ||
40.83 € | 1 | 23 Days | 190 | 140.01 to 220.00 | Conductivity | 100 | 85 | 150 | 50 | Ball bearing (C) | swivel castor | 150 | 688 | 125 | 40 | no | 150 | ||
50.51 € | 1 | 23 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | Ball bearing (C) | swivel castor | 150 | 826 | 125 | 40 | no | 150 | ||
43.55 € | 1 | 23 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | Ball bearing (C) | swivel castor | 150 | 856 | 125 | 40 | yes | 150 | ||
44.26 € | 1 | 23 Days | 190 | 140.01 to 220.00 | Conductivity | 100 | 85 | 150 | 50 | Ball bearing (C) | swivel castor with brake | 150 | 812 | 125 | 40 | yes | 150 | ||
51.23 € | 1 | 23 Days | 190 | 140.01 to 220.00 | Conductivity | 100 | 85 | 150 | 50 | Ball bearing (C) | swivel castor with brake | 150 | 782 | 125 | 40 | no | 150 | ||
60.91 € | 1 | 23 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | Ball bearing (C) | swivel castor with brake | 150 | 956 | 125 | 40 | no | 150 | ||
53.95 € | 1 | 23 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | Ball bearing (C) | swivel castor with brake | 150 | 986 | 125 | 40 | yes | 150 | ||
28.79 € | 1 | 7 Days | 190 | 140.01 to 220.00 | Conductivity | 100 | 85 | 150 | 50 | roller bearing | swivel castor | 150 | 679 | 125 | 40 | yes | 150 | ||
38.47 € | 1 | 7 Days | 190 | 140.01 to 220.00 | Conductivity | 100 | 85 | 150 | 50 | roller bearing | swivel castor | 150 | 853 | 125 | 40 | yes | 150 | ||
39.15 € | 1 | 7 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor with brake | 150 | 824 | 125 | 40 | yes | 150 | ||
48.83 € | 1 | 7 Days | 190 | 140.01 to 220.00 | - | 100 | 85 | 150 | 50 | roller bearing | swivel castor with brake | 150 | 983 | 125 | 40 | yes | 150 | ||
42.85 € | 1 | 23 Days | 190 | 220.01 to 320.00 | - | 140 | 110 | 150 | 50 | plain bore | swivel castor | 190 | 1451 | 150 | 50 | yes | 300 | ||
53.90 € | 1 | 23 Days | 190 | 220.01 to 320.00 | - | 140 | 110 | 150 | 50 | plain bore | swivel castor | 190 | 1700 | 150 | 50 | yes | 300 | ||
63.77 € | 1 | 23 Days | 190 | 220.01 to 320.00 | - | 140 | 110 | 150 | 50 | plain bore | swivel castor with brake | 190 | 1889 | 150 | 50 | yes | 300 | ||
74.82 € | 1 | 23 Days | 190 | 220.01 to 320.00 | - | 140 | 110 | 150 | 50 | plain bore | swivel castor with brake | 190 | 2300 | 150 | 50 | yes | 300 | ||
67.21 € | 1 | 23 Days | 190 | 220.01 to 320.00 | - | 140 | 110 | 150 | 50 | plain bore | swivel castor with brake | 190 | 1746 | 150 | 50 | yes | 300 | ||
78.25 € | 1 | 23 Days | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | plain bore | swivel castor with brake | 190 | 1994 | 150 | 50 | yes | 300 | ||
64.34 € | 1 | 23 Days | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | Ball bearing | swivel castor | 190 | 1723 | 150 | 50 | yes | 300 | ||
73.90 € | 1 | 23 Days | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | Ball bearing | swivel castor | 190 | 1723 | 150 | 50 | no | 300 | ||
84.95 € | 1 | 23 Days | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | Ball bearing | swivel castor | 190 | 1944 | 150 | 50 | no | 300 | ||
75.37 € | 1 | 23 Days | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | Ball bearing | swivel castor | 190 | 1944 | 150 | 50 | yes | 300 | ||
84.50 € | 1 | 23 Days | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | Ball bearing | swivel castor with brake | 190 | 2125 | 150 | 50 | yes | 300 | ||
94.09 € | 1 | 23 Days | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | Ball bearing | swivel castor with brake | 190 | 2125 | 150 | 50 | no | 300 | ||
105.12 € | 1 | 23 Days | 235 | 220.01 to 320.00 | Conductivity | 140 | 110 | 200 | 50 | Ball bearing | swivel castor with brake | 190 | 2346 | 150 | 50 | no | 300 | ||
95.55 € | 1 | 23 Days | 235 | 220.01 to 320.00 | Conductivity | 140 | 110 | 200 | 50 | Ball bearing | swivel castor with brake | 190 | 2346 | 150 | 50 | yes | 300 | ||
88.69 € | 1 | 23 Days | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | Ball bearing | swivel castor with brake | 190 | 2034 | 150 | 50 | yes | 300 | ||
98.27 € | 1 | 23 Days | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | Ball bearing | swivel castor with brake | 190 | 1943 | 150 | 50 | no | 300 | ||
109.30 € | 1 | 23 Days | 235 | 220.01 to 320.00 | Conductivity | 140 | 110 | 200 | 50 | Ball bearing | swivel castor with brake | 190 | 2164 | 150 | 50 | no | 300 | ||
99.73 € | 1 | 23 Days | 235 | 220.01 to 320.00 | Conductivity | 140 | 110 | 200 | 50 | Ball bearing | swivel castor with brake | 190 | 2164 | 150 | 50 | yes | 300 | ||
48.45 € | 1 | 23 Days | 235 | 220.01 to 320.00 | - | 140 | 110 | 200 | 50 | roller bearing | swivel castor | 190 | 1539 | 150 | 50 | yes | 300 |
Loading...
Basic information
| Caster Type | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | Wheel Material | Engineering Plastics | Material (details) | Tread material: Synthetic, Wheel body material: high-quality polypropylene |
|---|---|---|---|---|---|
| Material | Synthetic | Suitable for autoclaves | no | Mounting type | top plate |
| Tread and tyre hardness | 60 Shore D | Tread color | black | Wheel body color | black |
| Tread hydrolysis-resistant | no | Non-staining | yes | Rustproof | no |
| Maximum temperature resistance(°C) | 60 | Minimum temperature resistance(°C) | -20 |
Configure
Basic Attributes
-
Mounting Height H(mm)
-
Load Range(daN)
- 35.01 to 80.00
- 80.01 to 140.00
- 140.01 to 220.00
- 220.01 to 320.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Plate Width W(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing
- Ball bearing (C)
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
- 437
- 473
- 479
- 500
- 501
- 556
- 575
- 592
- 594
- 597
- 603
- 608
- 634
- 639
- 640
- 675
- 677
- 679
- 681
- 682
- 688
- 709
- 710
- 720
- 759
- 779
- 780
- 782
- 790
- 792
- 805
- 812
- 824
- 826
- 853
- 856
- 942
- 956
- 983
- 986
- 1451
- 1539
- 1700
- 1723
- 1724
- 1746
- 1800
- 1889
- 1900
- 1943
- 1944
- 1955
- 1957
- 1969
- 1994
- 2000
- 2034
- 2079
- 2113
- 2125
- 2164
- 2168
- 2203
- 2250
- 2294
- 2300
- 2309
- 2346
- 2350
- 2412
- 2462
- 2471
- 2493
- 2521
- 2578
- 2687
- 2702
- 2752
- 2798
- 2914
- 2964
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Non-marking
- no
- yes
-
Load capacity at 4 km/h(kg)
-
Type
- LE-PP
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
