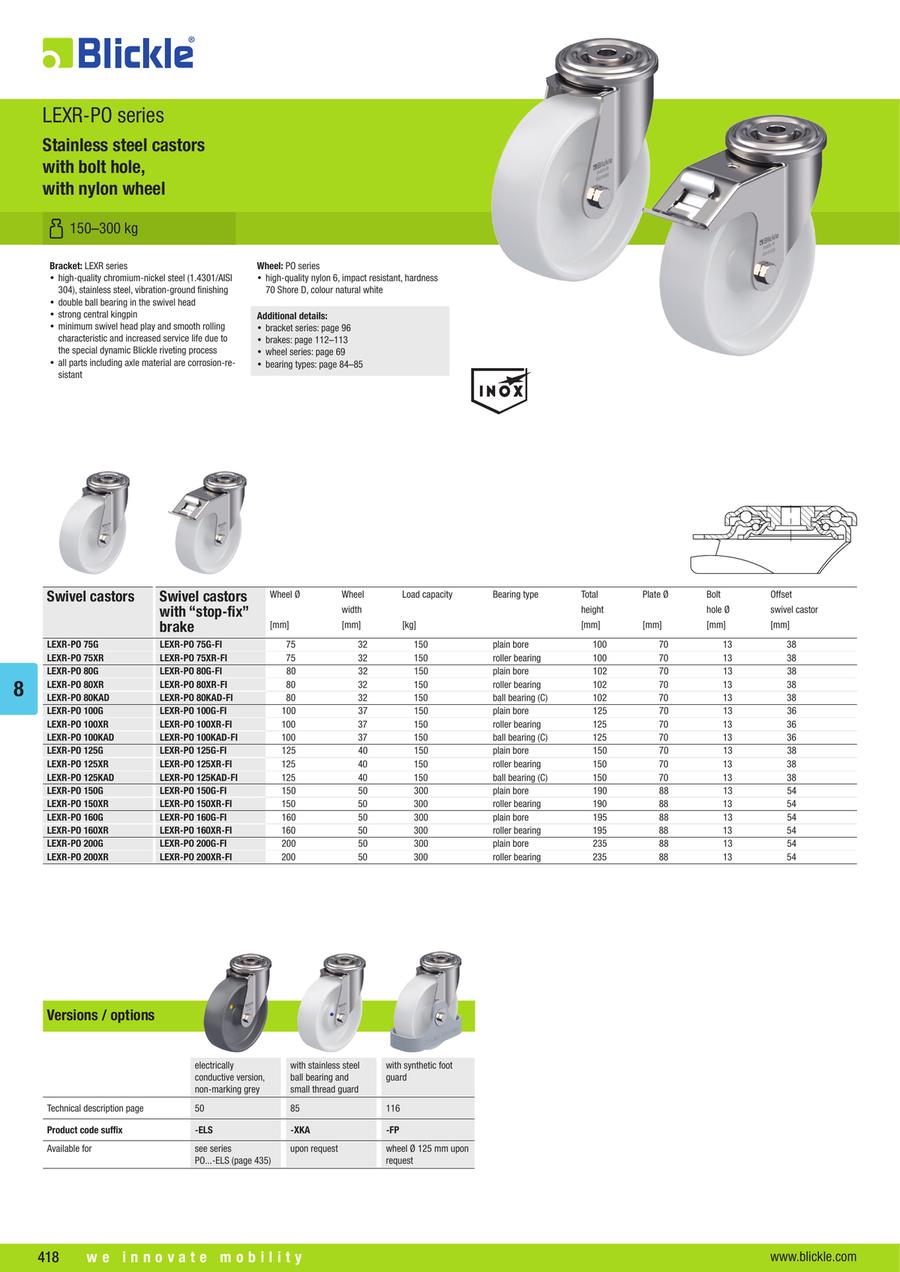

Stainless Steel Swivel Castor, LEXR-PO Series
Bracket: LEXR series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
- all parts including axle material are corrosion-resistant
Wheel: PO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Plate Length L (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | Bearing type | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread color | Wheel body color | Rustproof | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
64.57 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 140.01 to 220.00 | - | 70 | 100 | 32 | plain bore | swivel castor | 100 | 430 | 75 | 32 | natural white | natural white | yes | 150 | ||
86.72 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 70 | 125 | 37 | plain bore | swivel castor with brake | 100 | 524 | 75 | 32 | natural white | natural white | yes | 150 | ||
74.33 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 70 | 125 | 37 | roller bearing | swivel castor | 100 | 458 | 75 | 32 | natural white | natural white | yes | 150 | ||
96.47 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 70 | 125 | 37 | roller bearing | swivel castor with brake | 100 | 558 | 75 | 32 | natural white | natural white | yes | 150 | ||
65.57 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 70 | 125 | 37 | plain bore | swivel castor | 102 | 441 | 80 | 32 | natural white | natural white | yes | 150 | ||
79.10 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 70 | 125 | 37 | plain bore | swivel castor | 102 | 438 | 80 | 32 | grey | grey | yes | 150 | ||
87.72 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 70 | 125 | 37 | plain bore | swivel castor with brake | 102 | 541 | 80 | 32 | natural white | natural white | yes | 150 | ||
101.25 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 70 | 125 | 37 | plain bore | swivel castor with brake | 102 | 543 | 80 | 32 | grey | grey | yes | 150 | ||
73.20 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 70 | 125 | 37 | Ball bearing (C) | swivel castor | 102 | 475 | 80 | 32 | natural white | natural white | no | 150 | ||
95.52 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | - | 70 | 160 | 50 | Ball bearing (C) | swivel castor with brake | 102 | 571 | 80 | 32 | natural white | natural white | no | 150 | ||
74.70 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | - | 70 | 160 | 50 | roller bearing | swivel castor | 102 | 465 | 80 | 32 | natural white | natural white | yes | 150 | ||
96.85 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | - | 70 | 160 | 50 | roller bearing | swivel castor with brake | 102 | 568 | 80 | 32 | natural white | natural white | yes | 150 | ||
72.37 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 70 | 150 | 50 | plain bore | swivel castor | 125 | 538 | 100 | 37 | natural white | natural white | yes | 150 | ||
87.94 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 70 | 150 | 50 | plain bore | swivel castor | 125 | 556 | 100 | 37 | grey | grey | yes | 150 | ||
91.34 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 70 | 150 | 50 | plain bore | swivel castor with brake | 125 | 648 | 100 | 37 | natural white | natural white | yes | 150 | ||
106.90 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | - | 70 | 160 | 50 | plain bore | swivel castor with brake | 125 | 670 | 100 | 37 | grey | grey | yes | 150 | ||
79.27 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | Conductivity | 70 | 160 | 50 | Ball bearing (C) | swivel castor | 125 | 567 | 100 | 37 | natural white | natural white | no | 150 | ||
98.40 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | - | 70 | 160 | 50 | Ball bearing (C) | swivel castor with brake | 125 | 680 | 100 | 37 | natural white | natural white | no | 150 | ||
78.73 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | Conductivity | 70 | 160 | 50 | roller bearing | swivel castor | 125 | 580 | 100 | 37 | natural white | natural white | yes | 150 | ||
97.70 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | - | 70 | 160 | 50 | roller bearing | swivel castor with brake | 125 | 688 | 100 | 37 | natural white | natural white | yes | 150 | ||
79.80 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | - | 70 | 160 | 50 | plain bore | swivel castor | 150 | 638 | 125 | 40 | natural white | natural white | yes | 150 | ||
98.55 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | plain bore | swivel castor | 150 | 671 | 125 | 40 | grey | grey | yes | 150 | ||
98.98 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | Conductivity | 70 | 200 | 50 | plain bore | swivel castor with brake | 150 | 760 | 125 | 40 | natural white | natural white | yes | 150 | ||
117.73 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | plain bore | swivel castor with brake | 150 | 799 | 125 | 40 | grey | grey | yes | 150 | ||
88.95 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | Conductivity | 70 | 200 | 50 | Ball bearing (C) | swivel castor | 150 | 650 | 125 | 40 | natural white | natural white | no | 150 | ||
108.30 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | Ball bearing (C) | swivel castor with brake | 150 | 798 | 125 | 40 | natural white | natural white | no | 150 | ||
87.92 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 140.01 to 220.00 | - | 70 | 200 | 50 | roller bearing | swivel castor | 150 | 678 | 125 | 40 | natural white | natural white | yes | 150 | ||
107.10 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 100 | 140.01 to 220.00 | - | 70 | 75 | 32 | roller bearing | swivel castor with brake | 150 | 805 | 125 | 40 | natural white | natural white | yes | 150 | ||
156.79 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 100 | 220.01 to 320.00 | - | 88 | 75 | 32 | plain bore | swivel castor | 190 | 1267 | 150 | 50 | natural white | natural white | yes | 300 | ||
184.21 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 100 | 220.01 to 320.00 | - | 88 | 75 | 32 | plain bore | swivel castor | 190 | 1342 | 150 | 50 | grey | grey | yes | 300 | ||
203.30 € | 1 | 5 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 100 | 220.01 to 320.00 | - | 88 | 75 | 32 | plain bore | swivel castor with brake | 190 | 1638 | 150 | 50 | natural white | natural white | yes | 300 | ||
230.73 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | plain bore | swivel castor with brake | 190 | 1654 | 150 | 50 | grey | grey | yes | 300 | ||
170.39 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | Conductivity | 88 | 80 | 32 | roller bearing | swivel castor | 190 | 1360 | 150 | 50 | natural white | natural white | yes | 300 | ||
216.90 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | roller bearing | swivel castor with brake | 190 | 1739 | 150 | 50 | natural white | natural white | yes | 300 | ||
161.18 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | Conductivity | 88 | 80 | 32 | plain bore | swivel castor | 195 | 1350 | 160 | 50 | natural white | natural white | yes | 300 | ||
191.12 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | plain bore | swivel castor | 195 | 1340 | 160 | 50 | grey | grey | yes | 300 | ||
207.68 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | plain bore | swivel castor with brake | 195 | 1718 | 160 | 50 | natural white | natural white | yes | 300 | ||
237.62 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | plain bore | swivel castor with brake | 195 | 1720 | 160 | 50 | grey | grey | yes | 300 | ||
175.77 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 102 | 220.01 to 320.00 | - | 88 | 80 | 32 | roller bearing | swivel castor | 195 | 1434 | 160 | 50 | natural white | natural white | yes | 300 | ||
222.28 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | roller bearing | swivel castor with brake | 195 | 1800 | 160 | 50 | natural white | natural white | yes | 300 | ||
194.61 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | plain bore | swivel castor | 235 | 1584 | 200 | 50 | natural white | natural white | yes | 300 | ||
235.95 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | plain bore | swivel castor | 235 | 1584 | 200 | 50 | grey | grey | yes | 300 | ||
239.70 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | plain bore | swivel castor with brake | 235 | 2005 | 200 | 50 | natural white | natural white | yes | 300 | ||
281.03 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | plain bore | swivel castor with brake | 235 | 2005 | 200 | 50 | grey | grey | yes | 300 | ||
206.95 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | roller bearing | swivel castor | 235 | 1684 | 200 | 50 | natural white | natural white | yes | 300 | ||
252.03 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 125 | 220.01 to 320.00 | - | 88 | 100 | 32 | roller bearing | swivel castor with brake | 235 | 2099 | 200 | 50 | natural white | natural white | yes | 300 |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Material (details) | Tread material: Synthetic, Wheel body material: high-quality nylon 6 | Material | Synthetic |
|---|---|---|---|---|---|
| Suitable for autoclaves | no | Mounting type | bolt hole | Tread and tyre hardness | 70 Shore D |
| Tread hydrolysis-resistant | no | Non-staining | yes | Non-marking | yes |
| Maximum temperature resistance(°C) | 80 | Minimum temperature resistance(°C) | -25 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 140.01 to 220.00
- 220.01 to 320.00
-
Wheel Characteristics
- Conductivity
-
Plate Length L(mm)
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Bearing type
- Ball bearing (C)
- plain bore
- roller bearing
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Tread color
-
Wheel body color
-
Rustproof
- no
- yes
-
Load capacity at 4 km/h(kg)
-
Type
- LEXR-PO
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
