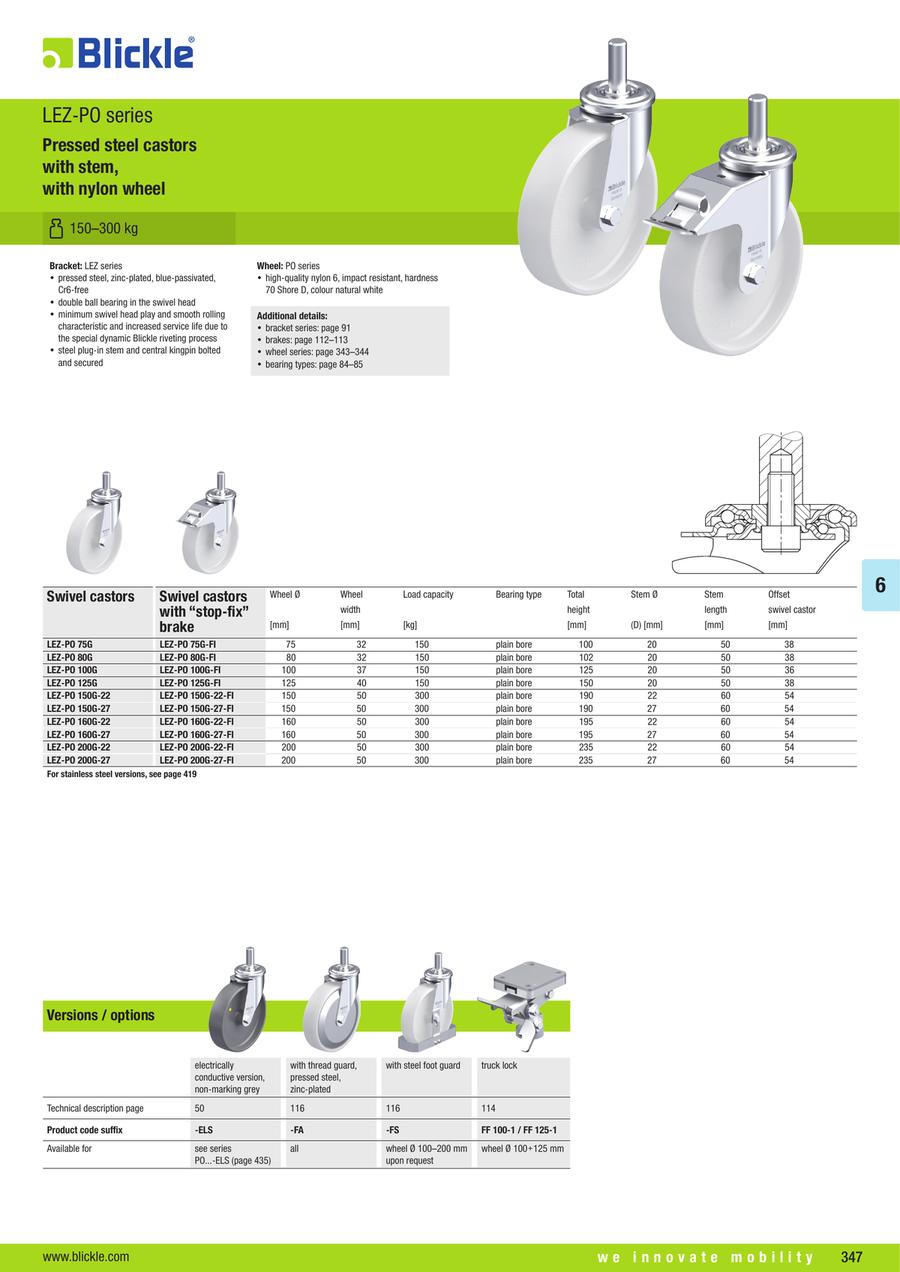

Pressed Steel Swivel Castor, LEZ-PO Series
Bracket: LEZ series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
- steel plug-in stem and central kingpin bolted and secured
Wheel: PO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Caster Type | Mounting Height H (mm) | Load Range (daN) | Wheel Characteristics | Wheel Dia. D (mm) | Wheel Width B (mm) | Product type | Total height (mm) | Weight (g) | Wheel diameter (mm) | Wheel width (mm) | Tread color | Wheel body color | Load capacity at 4 km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30.68 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | Conductivity | 125 | 38 | swivel castor | 100 | 571 | 75 | 32 | natural white | natural white | 150 | ||
37.60 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 125 | 38 | swivel castor | 100 | 640 | 75 | 32 | natural white | natural white | 150 | ||
47.37 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | Conductivity | 125 | 38 | swivel castor with brake | 100 | 670 | 75 | 32 | natural white | natural white | 150 | ||
54.29 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 125 | 38 | swivel castor with brake | 100 | 710 | 75 | 32 | natural white | natural white | 150 | ||
31.70 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 150 | 140.01 to 220.00 | - | 125 | 38 | swivel castor | 102 | 574 | 80 | 32 | natural white | natural white | 150 | ||
45.23 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 40 | swivel castor | 102 | 591 | 80 | 32 | grey | grey | 150 | ||
52.13 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 150 | 40 | swivel castor | 102 | 627 | 80 | 32 | grey | grey | 150 | ||
38.60 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 40 | swivel castor | 102 | 619 | 80 | 32 | natural white | natural white | 150 | ||
48.38 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 150 | 40 | swivel castor with brake | 102 | 686 | 80 | 32 | natural white | natural white | 150 | ||
61.90 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 40 | swivel castor with brake | 102 | 703 | 80 | 32 | grey | grey | 150 | ||
68.82 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 40 | swivel castor with brake | 102 | 739 | 80 | 32 | grey | grey | 150 | ||
55.28 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 40 | swivel castor with brake | 102 | 712 | 80 | 32 | natural white | natural white | 150 | ||
37.59 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 50 | swivel castor | 125 | 688 | 100 | 37 | natural white | natural white | 150 | ||
53.17 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 50 | swivel castor | 125 | 696 | 100 | 37 | grey | grey | 150 | ||
61.93 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 150 | 50 | swivel castor | 125 | 778 | 100 | 37 | grey | grey | 150 | ||
46.36 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 150 | 50 | swivel castor | 125 | 769 | 100 | 37 | natural white | natural white | 150 | ||
55.10 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 50 | swivel castor with brake | 125 | 795 | 100 | 37 | natural white | natural white | 150 | ||
70.67 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 50 | swivel castor with brake | 125 | 803 | 100 | 37 | grey | grey | 150 | ||
79.43 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 150 | 50 | swivel castor with brake | 125 | 885 | 100 | 37 | grey | grey | 150 | ||
63.87 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 150 | 50 | swivel castor with brake | 125 | 882 | 100 | 37 | natural white | natural white | 150 | ||
42.92 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 50 | swivel castor | 150 | 781 | 125 | 40 | natural white | natural white | 150 | ||
61.67 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 50 | swivel castor | 150 | 808 | 125 | 40 | grey | grey | 150 | ||
71.35 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 150 | 50 | swivel castor | 150 | 979 | 125 | 40 | grey | grey | 150 | ||
52.60 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | Conductivity | 150 | 50 | swivel castor | 150 | 880 | 125 | 40 | natural white | natural white | 150 | ||
61.05 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 190 | 140.01 to 220.00 | - | 150 | 50 | swivel castor with brake | 150 | 920 | 125 | 40 | natural white | natural white | 150 | ||
79.80 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | - | 160 | 50 | swivel castor with brake | 150 | 950 | 125 | 40 | grey | grey | 150 | ||
89.48 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | Conductivity | 160 | 50 | swivel castor with brake | 150 | 1118 | 125 | 40 | grey | grey | 150 | ||
70.74 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 140.01 to 220.00 | Conductivity | 160 | 50 | swivel castor with brake | 150 | 1083 | 125 | 40 | natural white | natural white | 150 | ||
72.24 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | - | 160 | 50 | swivel castor | 190 | 1588 | 150 | 50 | natural white | natural white | 300 | ||
99.68 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | - | 160 | 50 | swivel castor | 190 | 1664 | 150 | 50 | grey | grey | 300 | ||
110.72 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | Conductivity | 160 | 50 | swivel castor | 190 | 1873 | 150 | 50 | grey | grey | 300 | ||
83.28 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | Conductivity | 160 | 50 | swivel castor | 190 | 1800 | 150 | 50 | natural white | natural white | 300 | ||
102.63 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | - | 160 | 50 | swivel castor with brake | 190 | 2000 | 150 | 50 | natural white | natural white | 300 | ||
130.07 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | - | 160 | 50 | swivel castor with brake | 190 | 2076 | 150 | 50 | grey | grey | 300 | ||
141.10 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | Conductivity | 160 | 50 | swivel castor with brake | 190 | 2285 | 150 | 50 | grey | grey | 300 | ||
113.67 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | Conductivity | 160 | 50 | swivel castor with brake | 190 | 2221 | 150 | 50 | natural white | natural white | 300 | ||
72.24 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | - | 160 | 50 | swivel castor | 190 | 1669 | 150 | 50 | natural white | natural white | 300 | ||
99.68 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | - | 160 | 50 | swivel castor | 190 | 1745 | 150 | 50 | grey | grey | 300 | ||
110.72 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | Conductivity | 160 | 50 | swivel castor | 190 | 1954 | 150 | 50 | grey | grey | 300 | ||
83.28 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | Conductivity | 160 | 50 | swivel castor | 190 | 1904 | 150 | 50 | natural white | natural white | 300 | ||
102.63 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 195 | 220.01 to 320.00 | - | 160 | 50 | swivel castor with brake | 190 | 2110 | 150 | 50 | natural white | natural white | 300 | ||
130.07 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 200 | 50 | swivel castor with brake | 190 | 2186 | 150 | 50 | grey | grey | 300 | ||
141.10 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | Conductivity | 200 | 50 | swivel castor with brake | 190 | 2395 | 150 | 50 | grey | grey | 300 | ||
113.67 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | Conductivity | 200 | 50 | swivel castor with brake | 190 | 2310 | 150 | 50 | natural white | natural white | 300 | ||
76.63 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 200 | 50 | swivel castor | 195 | 1704 | 160 | 50 | natural white | natural white | 300 | ||
106.57 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 200 | 50 | swivel castor | 195 | 1797 | 160 | 50 | grey | grey | 300 | ||
118.28 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | Conductivity | 200 | 50 | swivel castor | 195 | 2051 | 160 | 50 | grey | grey | 300 | ||
88.35 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | Conductivity | 200 | 50 | swivel castor | 195 | 1943 | 160 | 50 | natural white | natural white | 300 | ||
107.02 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 200 | 50 | swivel castor with brake | 195 | 2120 | 160 | 50 | natural white | natural white | 300 | ||
136.95 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 200 | 50 | swivel castor with brake | 195 | 2213 | 160 | 50 | grey | grey | 300 | ||
148.67 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | Conductivity | 200 | 50 | swivel castor with brake | 195 | 2467 | 160 | 50 | grey | grey | 300 | ||
118.74 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | Conductivity | 200 | 50 | swivel castor with brake | 195 | 2260 | 160 | 50 | natural white | natural white | 300 | ||
76.63 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 200 | 50 | swivel castor | 195 | 1757 | 160 | 50 | natural white | natural white | 300 | ||
106.57 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 200 | 50 | swivel castor | 195 | 1850 | 160 | 50 | grey | grey | 300 | ||
118.28 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | Conductivity | 200 | 50 | swivel castor | 195 | 2104 | 160 | 50 | grey | grey | 300 | ||
88.35 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | Conductivity | 200 | 50 | swivel castor | 195 | 2030 | 160 | 50 | natural white | natural white | 300 | ||
107.02 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 235 | 220.01 to 320.00 | - | 200 | 50 | swivel castor with brake | 195 | 2210 | 160 | 50 | natural white | natural white | 300 | ||
136.95 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 100 | 220.01 to 320.00 | - | 75 | 32 | swivel castor with brake | 195 | 2303 | 160 | 50 | grey | grey | 300 | ||
148.67 € | 1 | 23 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 100 | 220.01 to 320.00 | - | 75 | 32 | swivel castor with brake | 195 | 2557 | 160 | 50 | grey | grey | 300 | ||
118.74 € | 1 | 7 Days | Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type | 100 | 220.01 to 320.00 | - | 75 | 32 | swivel castor with brake | 195 | 2426 | 160 | 50 | natural white | natural white | 300 |
Loading...
Basic information
| Wheel Material | Engineering Plastics | Bearing type | plain bore | Material (details) | Tread material: Synthetic, Wheel body material: high-quality nylon 6 |
|---|---|---|---|---|---|
| Material | Synthetic | Suitable for autoclaves | no | Mounting type | stem |
| Tread and tyre hardness | 70 Shore D | Tread hydrolysis-resistant | no | Non-staining | yes |
| Rustproof | no | Non-marking | yes | Maximum temperature resistance(°C) | 80 |
| Minimum temperature resistance(°C) | -25 |
Configure
Basic Attributes
-
Caster Type
- Plate Type Swivel
- Screw-In Type
- Resin
- Through Hole Type
- Rotation Type
-
Mounting Height H(mm)
-
Load Range(daN)
- 140.01 to 220.00
- 220.01 to 320.00
-
Wheel Characteristics
- Conductivity
-
Wheel Dia. D(mm)
-
Wheel Width B(mm)
-
Product type
- swivel castor
- swivel castor with brake
-
Total height(mm)
-
Weight(g)
- 571
- 574
- 591
- 619
- 627
- 640
- 670
- 686
- 688
- 696
- 703
- 710
- 712
- 739
- 769
- 778
- 781
- 795
- 803
- 808
- 880
- 882
- 885
- 920
- 950
- 979
- 1083
- 1118
- 1588
- 1664
- 1669
- 1704
- 1745
- 1757
- 1797
- 1800
- 1850
- 1873
- 1904
- 1943
- 1954
- 1990
- 2000
- 2014
- 2030
- 2051
- 2076
- 2104
- 2110
- 2120
- 2186
- 2210
- 2213
- 2221
- 2252
- 2260
- 2276
- 2285
- 2303
- 2310
- 2385
- 2395
- 2426
- 2430
- 2467
- 2474
- 2476
- 2557
- 2692
- 2736
- 2738
- 2760
- 2829
- 2918
- 3176
- 3222
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Tread color
-
Wheel body color
-
Load capacity at 4 km/h(kg)
-
Type
- LEZ-PO
Filter by standard shipping days
-
- All
- 7 Days or Less
- 23 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
