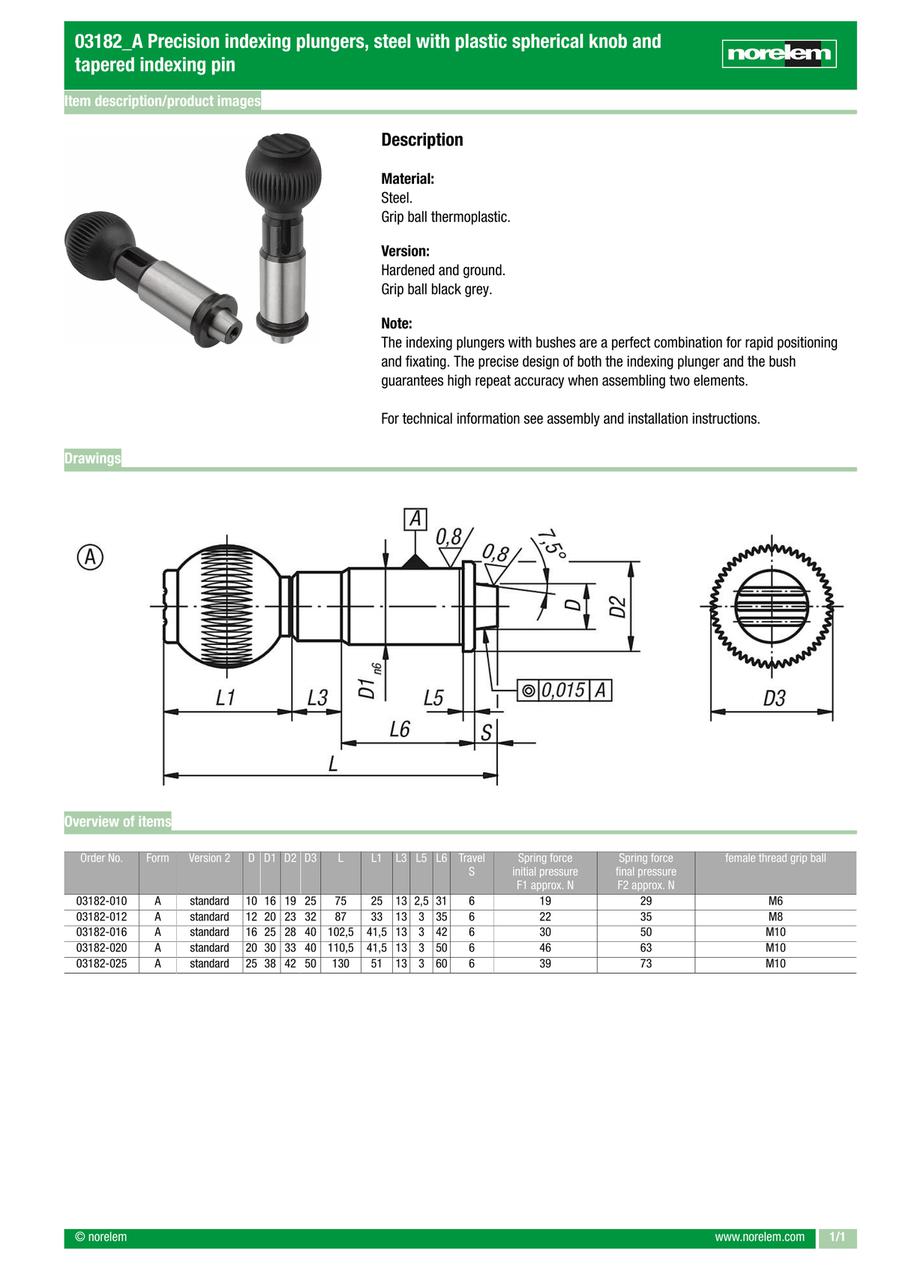

Precision indexing plungers, steel with plastic spherical knob and tapered indexing pin (03182)
· Quick positioning and fixating
· High stability
· High repeat accuracy
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 03182-010 |
| 03182-012 |
| 03182-016 |
| 03182-020 |
| 03182-025 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Length L (mm) | D=pin diameter (mm) | D1=Outside diameter (mm) | D2 (mm) | D3 (mm) | L1 (mm) | L5 (mm) | L6 (mm) | Internal thread grip ball | Spring force final pressure F2 approx. (N) | Spring force initial pressure F1 approx. (N) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
104.12 € | 1 | 4 Days | 75 | 10 | 16 | 19 | 25 | 25 | 2.5 | 31 | M6 | 29 | 19 | ||
123.14 € | 1 | 4 Days | 87 | 12 | 20 | 23 | 32 | 33 | 3 | 35 | M8 | 35 | 22 | ||
135.01 € | 1 | 4 Days | 102.5 | 16 | 25 | 28 | 40 | 41.5 | 3 | 42 | M10 | 50 | 30 | ||
158.02 € | 1 | 4 Days | 110.5 | 20 | 30 | 33 | 40 | 41.5 | 3 | 50 | M10 | 63 | 46 | ||
181.44 € | 1 | 4 Days | 130 | 25 | 38 | 42 | 50 | 51 | 3 | 60 | M10 | 73 | 39 |
Loading...
Basic information
| Type | Special Knobs | Body Material | Steel | Travel S(mm) | 6 |
|---|---|---|---|---|---|
| Surface finish body | Hardened and ground | Component material | Thermoplastic | Component colour | Black grey RAL 7021 |
| Form | A | L3(mm) | 13 |
