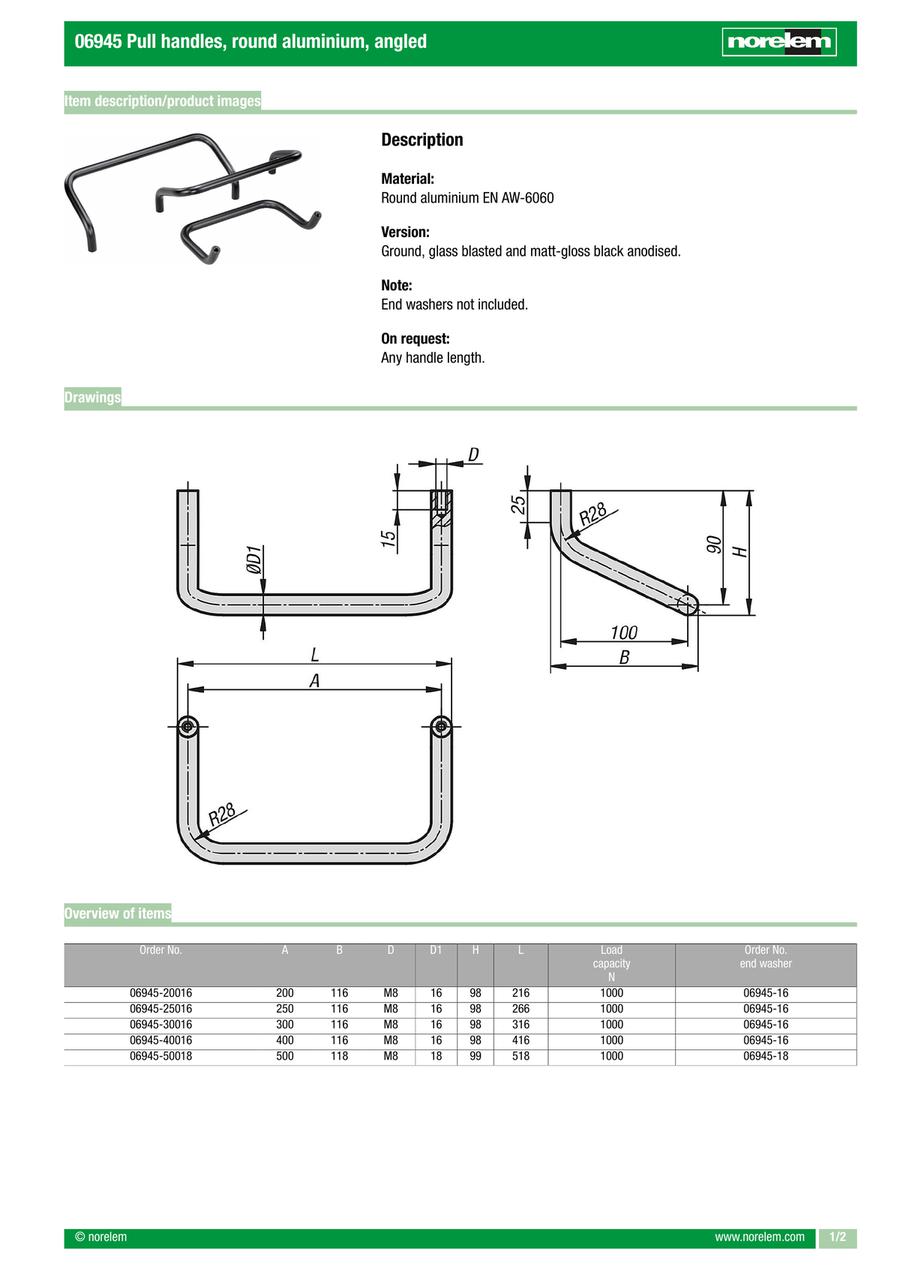

Pull handles angled (06945)
· Retaining element to open and close lids, panels and hoods
· Application fields: machine and plant construction, toolmaking, furniture industry, rehabilitation and medical technology
· Cross section, round
· Mounted: from the rear
· Application fields: machine and plant construction, toolmaking, furniture industry, rehabilitation and medical technology
· Cross section, round
· Mounted: from the rear
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06945-20016 |
| 06945-25016 |
| 06945-30016 |
| 06945-40016 |
| 06945-50018 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Hole spacing (mm) | B (mm) | D1 (mm) | H (mm) | L=Length (mm) | Order No. end washer | |
|---|---|---|---|---|---|---|---|---|---|---|
47.20 € | 1 | 4 Days | 200 | 116 | 16 | 98 | 216 | 06945-16 | ||
51.05 € | 1 | 4 Days | 250 | 116 | 16 | 98 | 266 | 06945-16 | ||
54.32 € | 1 | 4 Days | 300 | 116 | 16 | 98 | 316 | 06945-16 | ||
61.18 € | 1 | 4 Days | 400 | 116 | 16 | 98 | 416 | 06945-16 | ||
73.65 € | 1 | 4 Days | 500 | 118 | 18 | 99 | 518 | 06945-18 |
Loading...
Basic information
| Main Body Material | Aluminum | Load capacity(N) | 1000 | Assembly | from the rear |
|---|---|---|---|---|---|
| Pull handle: cross section | round | D=Fastening hole | M8 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
