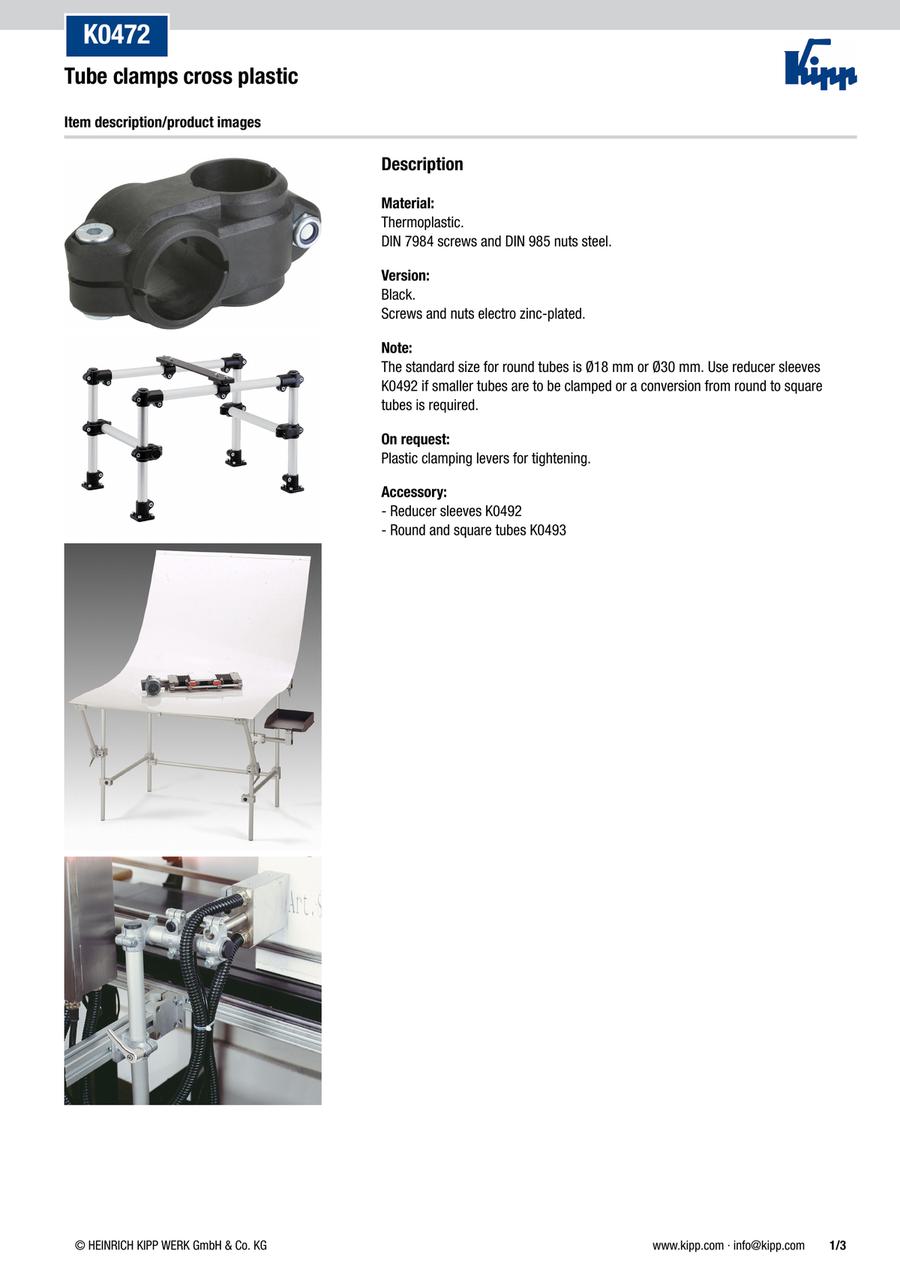

Tube clamps, cross, Plastic (K0472)
· Application sectors: machine construction, safety equipment, housings, structures
· On request: plastic clamping levers for fastening
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0472.1818 |
| K0472.3030 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | K (mm) | L (mm) | R (mm) | A=Internal diameter (mm) | B=Internal diameter (mm) | C (mm) | D (mm) | P (mm) | S (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2.30 € | 1 | 4 Days | 48 | 63 | 48 | 18 | 18 | 20 | 30 | 21 | M6x18 | 0.0408 | ||
4.98 € | 1 | 4 Days | 72 | 99 | 77 | 30 | 30 | 33 | 45 | 28.5 | M8x25 | 0.0800 |
Loading...
Basic information
| Main material | Thermoplastic | Component material | Steel | Version 2 | for round tubes |
|---|---|---|---|---|---|
| Version 1 | 4-way flat | Item | Tube Clamp | Surface finish component | galvanized |
| RoHS | true |
Configure
Basic Attributes
-
K(mm)
-
L(mm)
-
R(mm)
-
A=Internal diameter(mm)
-
B=Internal diameter(mm)
-
C(mm)
-
D(mm)
-
P(mm)
-
S(mm)
-
Weight(kg)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
