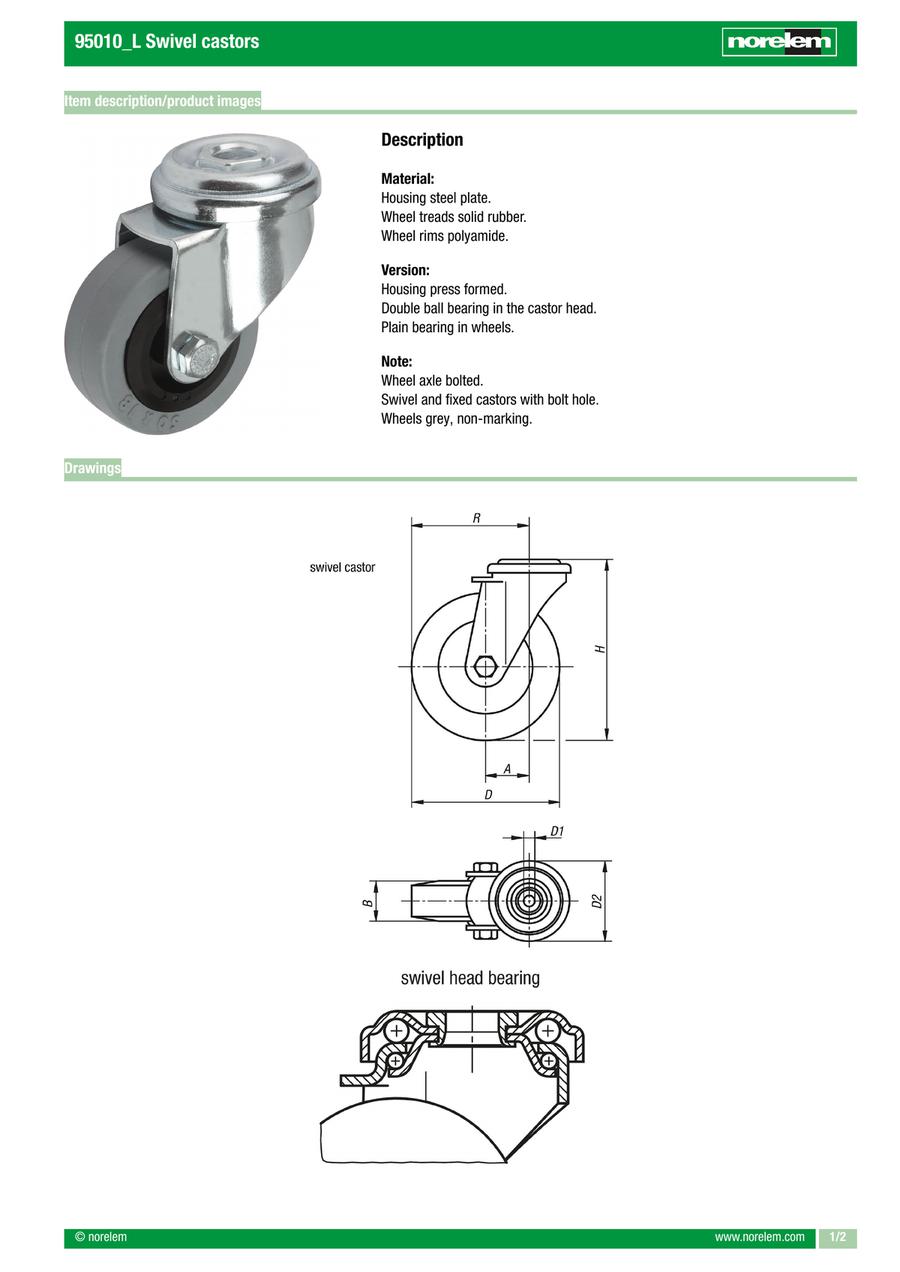

Swivel Castors (95010)
· Swivel castor housing with double ball bearing
· Sprockets with plain bearing
· Steel plate housing
· Polyamide rim
· Solid rubber tread, trackless
· Sprockets with plain bearing
· Steel plate housing
· Polyamide rim
· Solid rubber tread, trackless
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 95010-05018 |
| 95010-07525 |
| 95010-10025 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Height H (mm) | Wheel Dia. D (mm) | Wheel Width B (mm) | A (mm) | R (mm) | Permissible load (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
9.14 € | 1 | 4 Days | 69 | 50 | 18 | 25 | 50 | 40 | ||
11.55 € | 1 | 4 Days | 98 | 75 | 25 | 28 | 65.5 | 60 | ||
16.66 € | 1 | 4 Days | 121 | 100 | 25 | 33 | 83 | 70 |
Loading...
Basic information
| Main material | Rubber | Component material | Steel | Wheel bearing | plain bearing |
|---|---|---|---|---|---|
| D1(mm) | 11 | D2(mm) | 43 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
