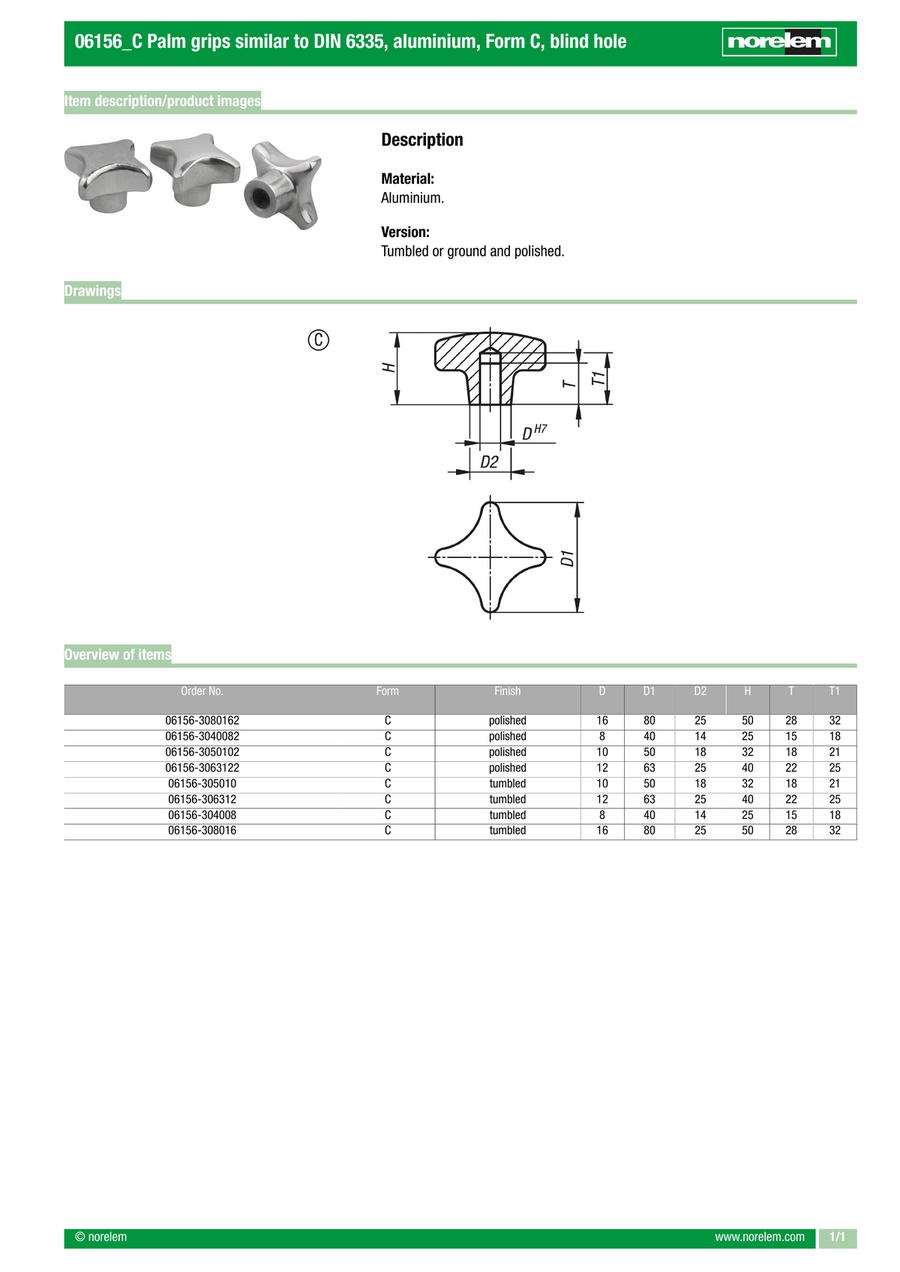

Palm grips similar to DIN 6335 aluminium, Form C, blind hole (06156)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Universally applicable
· Version: vibratory ground or polished
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06156-304008 |
| 06156-3040082 |
| 06156-305010 |
| 06156-3050102 |
| 06156-306312 |
| 06156-3063122 |
| 06156-308016 |
| 06156-3080162 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main Body Outer Diameter D (φ) | Surface finish body | D=bore (mm) | D2 (mm) | H=Height (mm) | H3 | T=bore depth (mm) | T1 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.11 € | 1 | 4 Days | 40 | tumbled | 8 | 14 | 25 | 14 | 15 | 18 | ||
10.52 € | 1 | 4 Days | 40 | polished | 8 | 14 | 25 | 14 | 15 | 18 | ||
7.11 € | 1 | 4 Days | 50 | tumbled | 10 | 18 | 32 | 20 | 18 | 21 | ||
11.95 € | 1 | 4 Days | 50 | polished | 10 | 18 | 32 | 20 | 18 | 21 | ||
9.92 € | 1 | 4 Days | 63 | tumbled | 12 | 25 | 40 | 25 | 22 | 25 | ||
15.47 € | 1 | 4 Days | 63 | polished | 12 | 25 | 40 | 25 | 22 | 25 | ||
14.81 € | 1 | 4 Days | 80 | tumbled | 16 | 25 | 50 | 30 | 28 | 32 | ||
20.93 € | 1 | 4 Days | 80 | polished | 16 | 25 | 50 | 30 | 28 | 32 |
Loading...
Basic information
| Main Body Material | Aluminum | Form | C |
|---|
Configure
Basic Attributes
-
Main Body Outer Diameter D(φ)
-
Surface finish body
- polished
- tumbled
-
D=bore(mm)
- 8
- 10
- 12
- 16
-
D2(mm)
-
H=Height(mm)
-
H3
-
T=bore depth(mm)
-
T1(mm)
- 18
- 21
- 25
- 32
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
