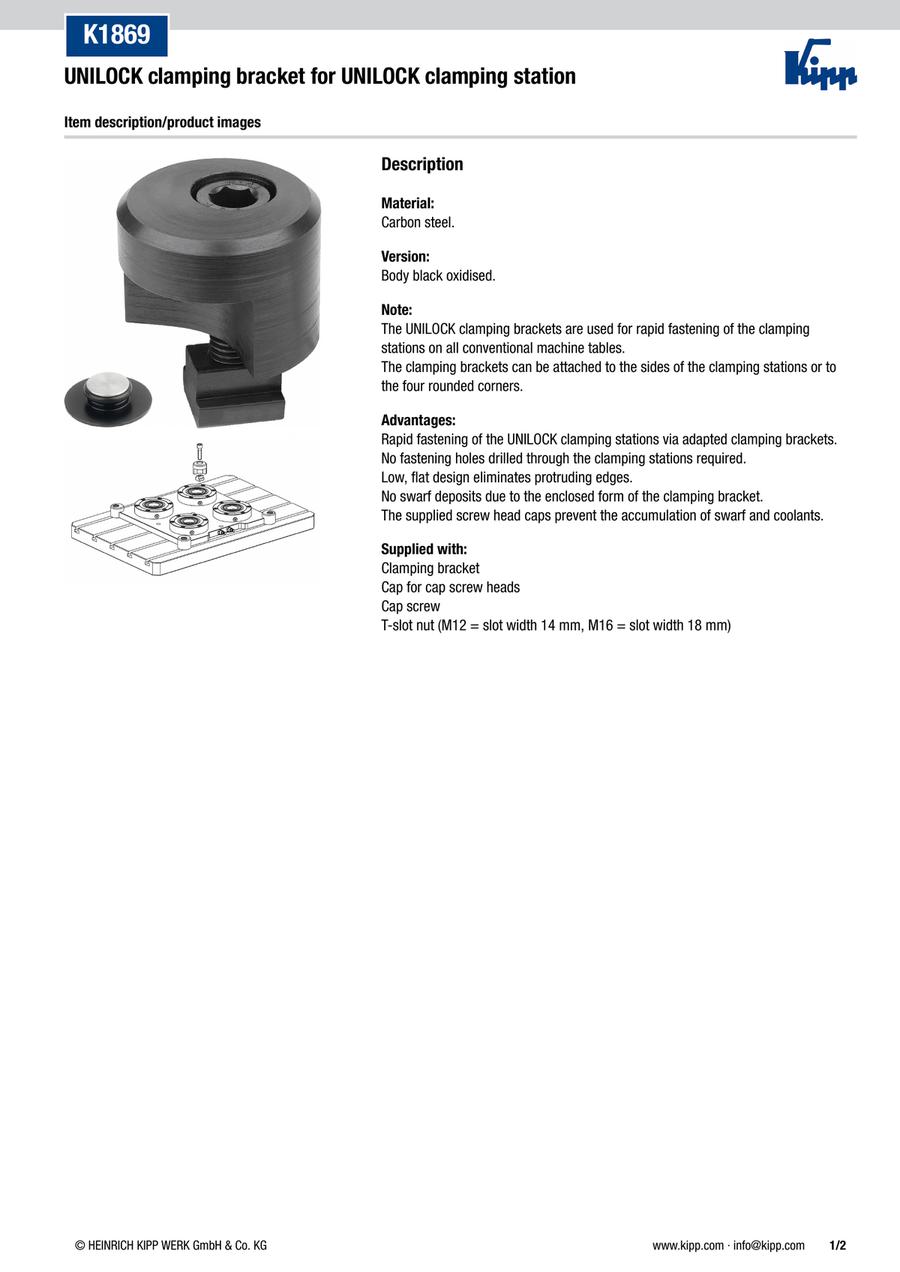

UNILOCK clamping bracket for UNILOCK clamping station (K1869)

UNILOCK clamping bracket for UNILOCK clamping station (K1869)

KIPP

KIPP

· clamping brackets for small space requirement

· compact design

· no swarf deposits

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
K1869.482212
K1869.482216
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Slot width
(mm) 		Fastening hole F Hole for ISO 4762 cap screw Weight
(kg)

41.62 €

1 4 Days 14M12M120.5200

44.00 €

1 4 Days 18M16M160.5400

Loading...

  1. 1

Basic information

Main material Mild steel Surface finish body black oxidized H(mm) 38
Version 1 for UNILOCK clamping station Item Clamping Bracket D=Pin diameter(mm) 48
PL Edelstahl false RoHS false
