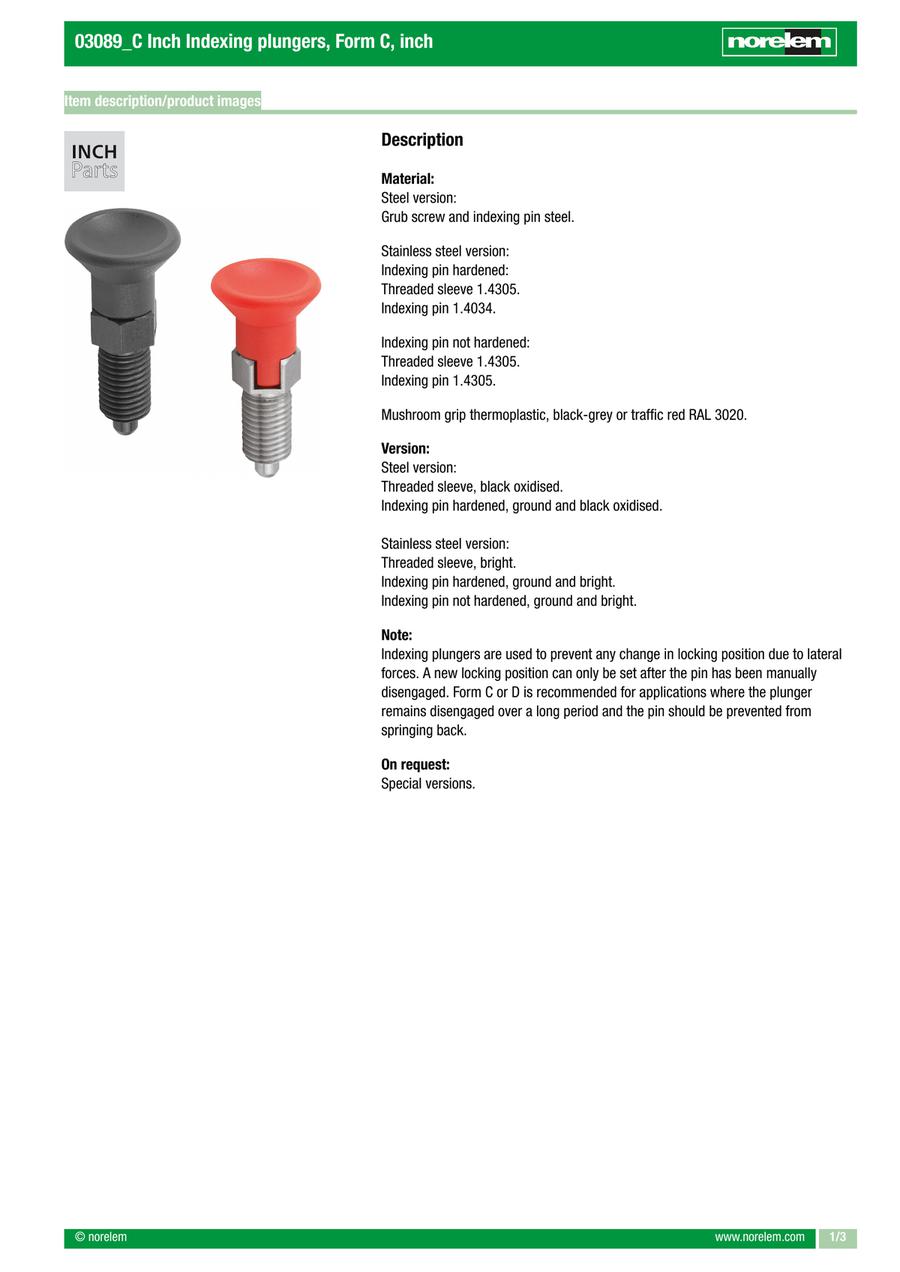

Indexing plunger, form C with locking slot without locknut, steel or stainless steel, inch (03089)
· Application sectors: machine, instrument and fixture construction, measuring technology, domestic use
· High stability
· Easy handling
· Material: steel or stainless steel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Main material | Steel code | Surface finish body | Component colour | Size | D1=Thread | Spring force final pressure F2 approx. (N) | Spring force initial pressure F1 approx. (N) | Fx30° | L=Length | D=pin diameter | L2 | SW1 | D2 | Travel S | L1 | L3 | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
19.76 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | black grey RAL 7021 | 0 | 5/16-24 | 12 | 6 | 1 | 38.5 | 4 | 6 | 10 | 18 | 4 | 15 | 13 | 0.0094 | ||
19.76 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | traffic red RAL 3020 | 0 | 5/16-24 | 12 | 6 | 1 | 38.5 | 4 | 6 | 10 | 18 | 4 | 15 | 13 | 0.0094 | ||
20.92 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | black grey RAL 7021 | 1 | 3/8-24 | 12 | 5 | 1.3 | 43.5 | 5 | 7 | 13 | 21 | 5 | 17 | 15 | 0.0180 | ||
20.92 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | traffic red RAL 3020 | 1 | 3/8-24 | 12 | 5 | 1.3 | 43.5 | 5 | 7 | 13 | 21 | 5 | 17 | 15 | 0.0180 | ||
24.70 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | black grey RAL 7021 | 2 | 1/2-13 | 14 | 6 | 1.8 | 51.7 | 6 | 8 | 14 | 25 | 6 | 20 | 16 | 0.0295 | ||
24.70 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | traffic red RAL 3020 | 2 | 1/2-13 | 14 | 6 | 1.8 | 51.7 | 6 | 8 | 14 | 25 | 6 | 20 | 16 | 0.0295 | ||
33.56 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | black grey RAL 7021 | 3 | 5/8-11 | 35 | 15 | 2.3 | 68 | 8 | 10 | 19 | 33 | 8 | 26 | 21 | 0.0664 | ||
33.56 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | traffic red RAL 3020 | 3 | 5/8-11 | 35 | 15 | 2.3 | 68 | 8 | 10 | 19 | 33 | 8 | 26 | 21 | 0.0664 | ||
38.81 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | black grey RAL 7021 | 4 | 3/4-10 | 40 | 15 | 2.8 | 74 | 10 | 12 | 22 | 33 | 10 | 28 | 23 | 0.1025 | ||
38.81 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | traffic red RAL 3020 | 4 | 3/4-10 | 40 | 15 | 2.8 | 74 | 10 | 12 | 22 | 33 | 10 | 28 | 23 | 0.1025 | ||
56.93 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | black grey RAL 7021 | 4 | 3/4-16 | 39 | 15 | 2.8 | 78 | 12 | 14 | 22 | 33 | 12 | 28 | 25 | 0.1050 | ||
56.93 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | traffic red RAL 3020 | 4 | 3/4-16 | 39 | 15 | 2.8 | 78 | 12 | 14 | 22 | 33 | 12 | 28 | 25 | 0.1050 | ||
80.88 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | black grey RAL 7021 | 5 | 1-8 | 46 | 20 | 3.2 | 96 | 16 | 18 | 27 | 40 | 16 | 32 | 28 | 0.1982 | ||
80.88 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | traffic red RAL 3020 | 5 | 1-8 | 46 | 20 | 3.2 | 96 | 16 | 18 | 27 | 40 | 16 | 32 | 28 | 0.1982 | ||
21.87 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | black grey RAL 7021 | 9 | 1/4-28 | 10 | 4.5 | 0.8 | 31.5 | 3 | 5 | 8 | 14 | 3.5 | 12 | 10 | 0.0047 | ||
21.87 € | 1 | 4 Days | Stainless steel | 1.4034 | hardened | traffic red RAL 3020 | 9 | 1/4-28 | 10 | 4.5 | 0.8 | 31.5 | 3 | 5 | 8 | 14 | 3.5 | 12 | 10 | 0.0047 | ||
19.76 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | black grey RAL 7021 | 0 | 5/16-24 | 12 | 6 | 1 | 38.5 | 4 | 6 | 10 | 18 | 4 | 15 | 13 | 0.0095 | ||
19.76 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | traffic red RAL 3020 | 0 | 5/16-24 | 12 | 6 | 1 | 38.5 | 4 | 6 | 10 | 18 | 4 | 15 | 13 | 0.0095 | ||
20.92 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | black grey RAL 7021 | 1 | 3/8-24 | 12 | 5 | 1.3 | 43.5 | 5 | 7 | 13 | 21 | 5 | 17 | 15 | 0.0170 | ||
20.92 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | traffic red RAL 3020 | 1 | 3/8-24 | 12 | 5 | 1.3 | 43.5 | 5 | 7 | 13 | 21 | 5 | 17 | 15 | 0.0170 | ||
24.70 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | black grey RAL 7021 | 2 | 1/2-13 | 14 | 6 | 1.8 | 51.7 | 6 | 8 | 14 | 25 | 6 | 20 | 16 | 0.0285 | ||
24.70 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | traffic red RAL 3020 | 2 | 1/2-13 | 14 | 6 | 1.8 | 51.7 | 6 | 8 | 14 | 25 | 6 | 20 | 16 | 0.0285 | ||
33.56 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | black grey RAL 7021 | 3 | 5/8-11 | 35 | 15 | 2.3 | 68 | 8 | 10 | 19 | 33 | 8 | 26 | 21 | 0.0640 | ||
33.56 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | traffic red RAL 3020 | 3 | 5/8-11 | 35 | 15 | 2.3 | 68 | 8 | 10 | 19 | 33 | 8 | 26 | 21 | 0.0640 | ||
38.81 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | black grey RAL 7021 | 4 | 3/4-10 | 40 | 15 | 2.8 | 74 | 10 | 12 | 22 | 33 | 10 | 28 | 23 | 0.1023 | ||
38.81 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | traffic red RAL 3020 | 4 | 3/4-10 | 40 | 15 | 2.8 | 74 | 10 | 12 | 22 | 33 | 10 | 28 | 23 | 0.1023 | ||
56.93 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | black grey RAL 7021 | 4 | 3/4-16 | 39 | 15 | 2.8 | 78 | 12 | 14 | 22 | 33 | 12 | 28 | 25 | 0.1065 | ||
56.93 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | traffic red RAL 3020 | 4 | 3/4-16 | 39 | 15 | 2.8 | 78 | 12 | 14 | 22 | 33 | 12 | 28 | 25 | 0.1065 | ||
80.88 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | black grey RAL 7021 | 5 | 1-8 | 46 | 20 | 3.2 | 96 | 16 | 18 | 27 | 40 | 16 | 32 | 28 | 0.1996 | ||
80.88 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | traffic red RAL 3020 | 5 | 1-8 | 46 | 20 | 3.2 | 96 | 16 | 18 | 27 | 40 | 16 | 32 | 28 | 0.1996 | ||
21.87 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | black grey RAL 7021 | 9 | 1/4-28 | 10 | 4.5 | 0.8 | 31.5 | 3 | 5 | 8 | 14 | 3.5 | 12 | 10 | 0.0047 | ||
21.87 € | 1 | 4 Days | Stainless steel | 1.4305 | not hardened | traffic red RAL 3020 | 9 | 1/4-28 | 10 | 4.5 | 0.8 | 31.5 | 3 | 5 | 8 | 14 | 3.5 | 12 | 10 | 0.0047 | ||
13.59 € | 1 | 4 Days | Steel | - | hardened | black grey RAL 7021 | 0 | 5/16-24 | 12 | 6 | 1 | 38.5 | 4 | 6 | 10 | 18 | 4 | 15 | 13 | 0.0092 | ||
13.59 € | 1 | 4 Days | Steel | - | hardened | traffic red RAL 3020 | 0 | 5/16-24 | 12 | 6 | 1 | 38.5 | 4 | 6 | 10 | 18 | 4 | 15 | 13 | 0.0092 | ||
14.35 € | 1 | 4 Days | Steel | - | hardened | black grey RAL 7021 | 1 | 3/8-24 | 12 | 5 | 1.3 | 43.5 | 5 | 7 | 13 | 21 | 5 | 17 | 15 | 0.0187 | ||
14.35 € | 1 | 4 Days | Steel | - | hardened | traffic red RAL 3020 | 1 | 3/8-24 | 12 | 5 | 1.3 | 43.5 | 5 | 7 | 13 | 21 | 5 | 17 | 15 | 0.0187 | ||
15.95 € | 1 | 4 Days | Steel | - | hardened | black grey RAL 7021 | 2 | 1/2-13 | 14 | 6 | 1.8 | 51.7 | 6 | 8 | 14 | 25 | 6 | 20 | 16 | 0.0302 | ||
15.95 € | 1 | 4 Days | Steel | - | hardened | traffic red RAL 3020 | 2 | 1/2-13 | 14 | 6 | 1.8 | 51.7 | 6 | 8 | 14 | 25 | 6 | 20 | 16 | 0.0302 | ||
19.07 € | 1 | 4 Days | Steel | - | hardened | black grey RAL 7021 | 3 | 5/8-11 | 35 | 15 | 2.3 | 68 | 8 | 10 | 19 | 33 | 8 | 26 | 21 | 0.0659 | ||
19.07 € | 1 | 4 Days | Steel | - | hardened | traffic red RAL 3020 | 3 | 5/8-11 | 35 | 15 | 2.3 | 68 | 8 | 10 | 19 | 33 | 8 | 26 | 21 | 0.0657 | ||
21.68 € | 1 | 4 Days | Steel | - | hardened | black grey RAL 7021 | 4 | 3/4-10 | 40 | 15 | 2.8 | 74 | 10 | 12 | 22 | 33 | 10 | 28 | 23 | 0.1048 | ||
21.68 € | 1 | 4 Days | Steel | - | hardened | traffic red RAL 3020 | 4 | 3/4-10 | 40 | 15 | 2.8 | 74 | 10 | 12 | 22 | 33 | 10 | 28 | 23 | 0.1048 | ||
30.64 € | 1 | 4 Days | Steel | - | hardened | black grey RAL 7021 | 4 | 3/4-16 | 39 | 15 | 2.8 | 78 | 12 | 14 | 22 | 33 | 12 | 28 | 25 | 0.1054 | ||
30.64 € | 1 | 4 Days | Steel | - | hardened | traffic red RAL 3020 | 4 | 3/4-16 | 39 | 15 | 2.8 | 78 | 12 | 14 | 22 | 33 | 12 | 28 | 25 | 0.1054 | ||
42.55 € | 1 | 4 Days | Steel | - | hardened | black grey RAL 7021 | 5 | 1-8 | 46 | 20 | 3.2 | 96 | 16 | 18 | 27 | 40 | 16 | 32 | 28 | 0.1987 | ||
42.55 € | 1 | 4 Days | Steel | - | hardened | traffic red RAL 3020 | 5 | 1-8 | 46 | 20 | 3.2 | 96 | 16 | 18 | 27 | 40 | 16 | 32 | 28 | 0.1987 | ||
15.07 € | 1 | 4 Days | Steel | - | hardened | black grey RAL 7021 | 9 | 1/4-28 | 10 | 4.5 | 0.8 | 31.5 | 3 | 5 | 8 | 14 | 3.5 | 12 | 10 | 0.0048 | ||
15.07 € | 1 | 4 Days | Steel | - | hardened | traffic red RAL 3020 | 9 | 1/4-28 | 10 | 4.5 | 0.8 | 31.5 | 3 | 5 | 8 | 14 | 3.5 | 12 | 10 | 0.0048 |
Loading...
Basic information
| Component material | Thermoplastic | Form | C | Locknut | without locknut |
|---|---|---|---|---|---|
| Version 1 | with locking slot | Item | Indexing Plunger | Product type | standard |
| Form definition | with locking slot, without locknut | RoHS | yes |
Configure
Basic Attributes
-
Main material
- Stainless steel
- Steel
-
Steel code
- 1.4034
- 1.4305
-
Surface finish body
- hardened
- not hardened
-
Component colour
-
Size
- 0
- 1
- 2
- 3
- 4
- 5
- 9
-
D1=Thread
-
Spring force final pressure F2 approx.(N)
-
Spring force initial pressure F1 approx.(N)
-
Fx30°
-
L=Length
-
D=pin diameter
-
L2
-
SW1
-
D2
-
Travel S
-
L1
-
L3
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
