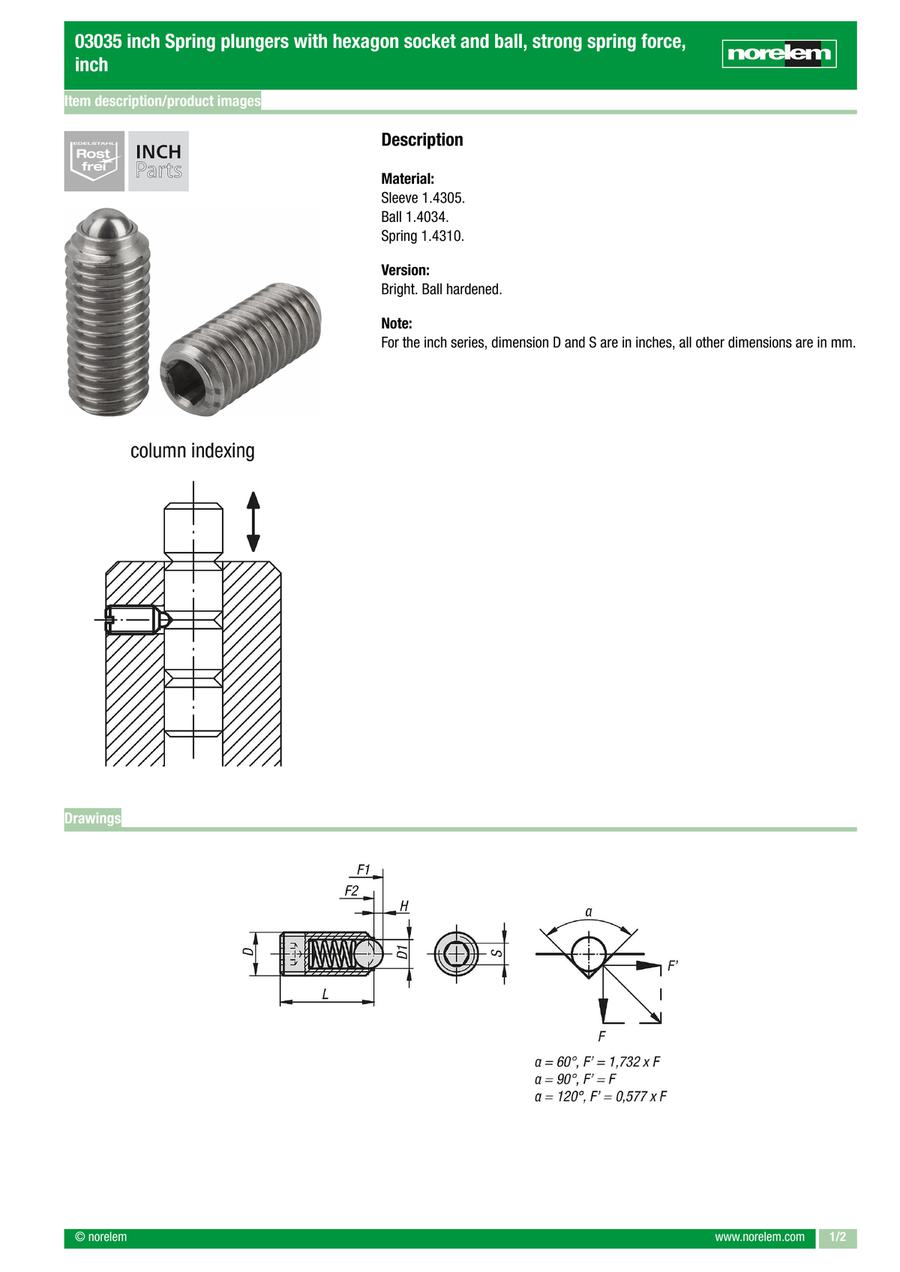

Spring plunger intensified spring force, stainless steel, inch (03035)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 03035-2A2 |
| 03035-2A3 |
| 03035-2A4 |
| 03035-2A5 |
| 03035-2A6 |
| 03035-2AJ |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D1 | D=thread | Spring force initial pressure F1 approx. (N) | Spring force final pressure F2 approx. (N) | H | S | L=Length | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.13 € | 1 | 4 Days | 3.5 | 1/4-20 | 28 | 40 | 1 | 1/8 | 15 | 0.0019 | ||
7.73 € | 1 | 4 Days | 5 | 5/16-18 | 47 | 73 | 1.5 | 5/32 | 18 | 0.0037 | ||
8.91 € | 1 | 4 Days | 6 | 3/8-16 | 66 | 100 | 2 | 3/16 | 23 | 0.0067 | ||
11.94 € | 1 | 4 Days | 8 | 1/2-13 | 66 | 120 | 2.5 | 7/32 | 26 | 0.0147 | ||
18.86 € | 1 | 4 Days | 10 | 5/8-11 | 90 | 180 | 3.5 | 5/16 | 33 | 0.0291 | ||
7.13 € | 1 | 4 Days | 3.5 | 1/4-28 | 28 | 40 | 1 | 1/8 | 15 | 0.0021 |
Loading...
Basic information
| Main material | stainless steel | Component material | ball stainless steel | pin material | stainless steel |
|---|---|---|---|---|---|
| pin form | ball | carrier form | hexagon socket | Item | Spring Plunger |
| Spring strength | intensified | RoHS | yes | PL Edelstahl | yes |
Configure
Basic Attributes
-
D1
-
D=thread
-
Spring force initial pressure F1 approx.(N)
-
Spring force final pressure F2 approx.(N)
-
H
-
S
-
L=Length
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
