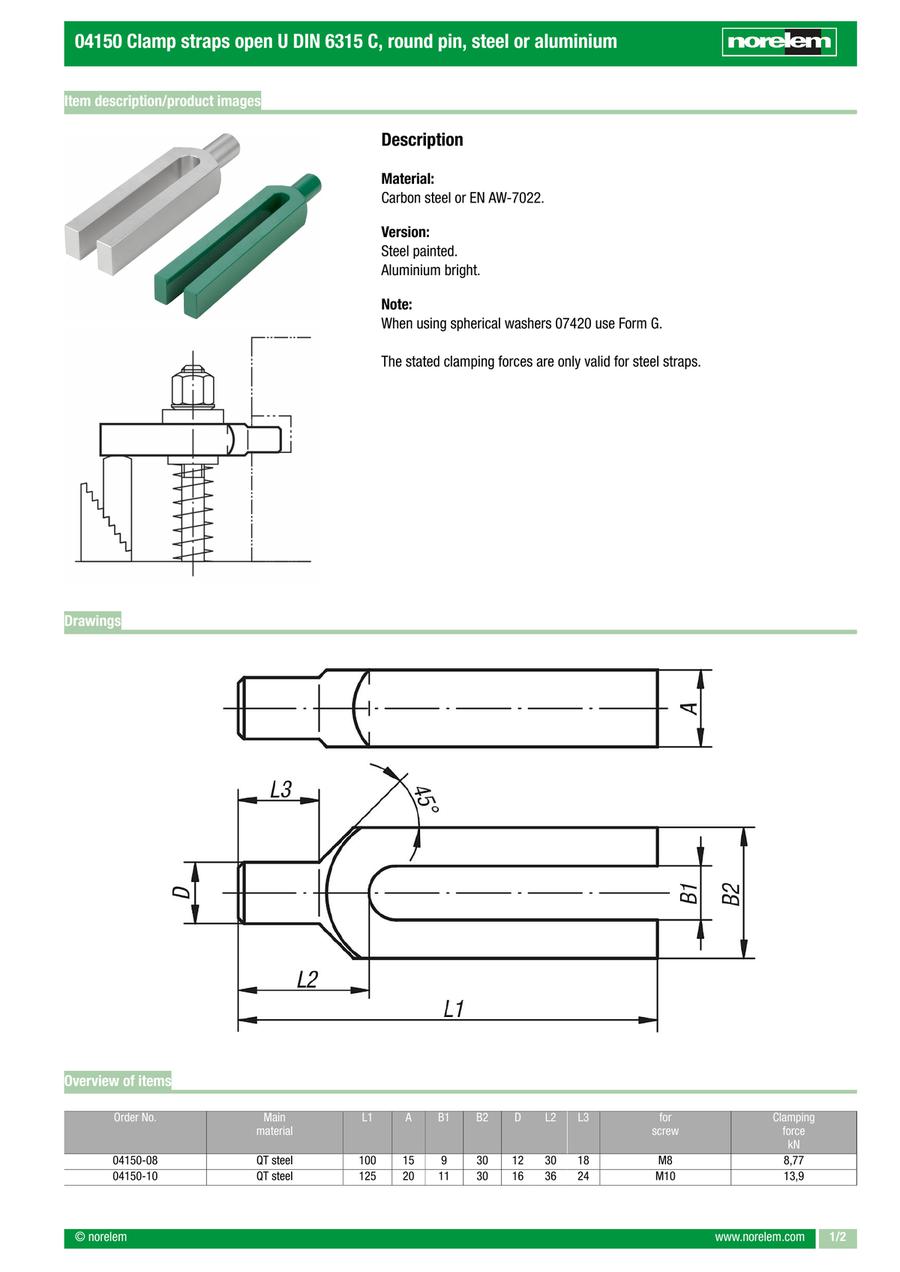

Clamp straps open U DIN 6315 C, round pin, steel or aluminium (04150)
· Flexible application
· Application sectors: machine construction, toolmaking, fixture construction
· For clamping any workpiece and component
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 04150-08 |
| 04150-10 |
| 04150-12 |
| 04150-16 |
| 04150-20 |
| 04150-121 |
| 04150-161 |
| 04150-201 |
| 04150-208 |
| 04150-210 |
| 04150-220 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Material | Main material | A=Height (mm) | B1 (mm) | B2=Width (mm) | Clamping force (kN) | D (mm) | for screw | L1= length (mm) | L2 (mm) | L3 (mm) | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
51.90 € | 1 | 4 Days | Steel | High carbon steel | 15 | 9 | 30 | 8.77 | 12 | M8 | 100 | 30 | 18 | 0.2140 | ||
50.05 € | 1 | 4 Days | Steel | High carbon steel | 20 | 11 | 30 | 13.9 | 16 | M10 | 125 | 36 | 24 | 0.3500 | ||
52.96 € | 1 | 4 Days | Steel | High carbon steel | 25 | 14 | 40 | 20.2 | 20 | M12/M14 | 160 | 45 | 30 | 0.7297 | ||
80.43 € | 1 | 4 Days | Steel | High carbon steel | 30 | 18 | 50 | 37.8 | 24 | M16/M18 | 200 | 55 | 36 | 1.3990 | ||
131.45 € | 1 | 4 Days | Steel | High carbon steel | 40 | 22 | 60 | 58.8 | 30 | M20/M22 | 250 | 65 | 45 | 2.6760 | ||
53.75 € | 1 | 4 Days | Steel | High carbon steel | 25 | 14 | 40 | 20.2 | 20 | M12/M14 | 200 | 45 | 30 | 0.9336 | ||
79.75 € | 1 | 4 Days | Steel | High carbon steel | 30 | 18 | 50 | 37.8 | 24 | M16/M18 | 250 | 55 | 36 | 1.7500 | ||
164.34 € | 1 | 4 Days | Steel | High carbon steel | 40 | 22 | 60 | 58.8 | 30 | M20/M22 | 315 | 65 | 45 | 3.4000 | ||
34.18 € | 1 | 4 Days | - | Aluminium | 15 | 9 | 30 | - | 12 | M8 | 100 | 30 | 18 | 0.0770 | ||
36.45 € | 1 | 4 Days | - | Aluminium | 20 | 11 | 30 | - | 16 | M10 | 125 | 36 | 24 | 0.1207 | ||
108.44 € | 1 | 4 Days | - | Aluminium | 40 | 22 | 60 | - | 30 | M20/M22 | 250 | 65 | 45 | 0.9563 |
Loading...
Basic information
| Type | Main Body | Version 1 | Open-u | Item | Clamp strap |
|---|---|---|---|---|---|
| RoHS | Yes |
Configure
Basic Attributes
-
Material
- Steel
-
Main material
- Aluminium
- High carbon steel
-
A=Height(mm)
-
B1(mm)
-
B2=Width(mm)
-
Clamping force(kN)
-
D(mm)
-
for screw
-
L1= length(mm)
-
L2(mm)
- 30
- 36
- 45
- 55
- 65
-
L3(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
