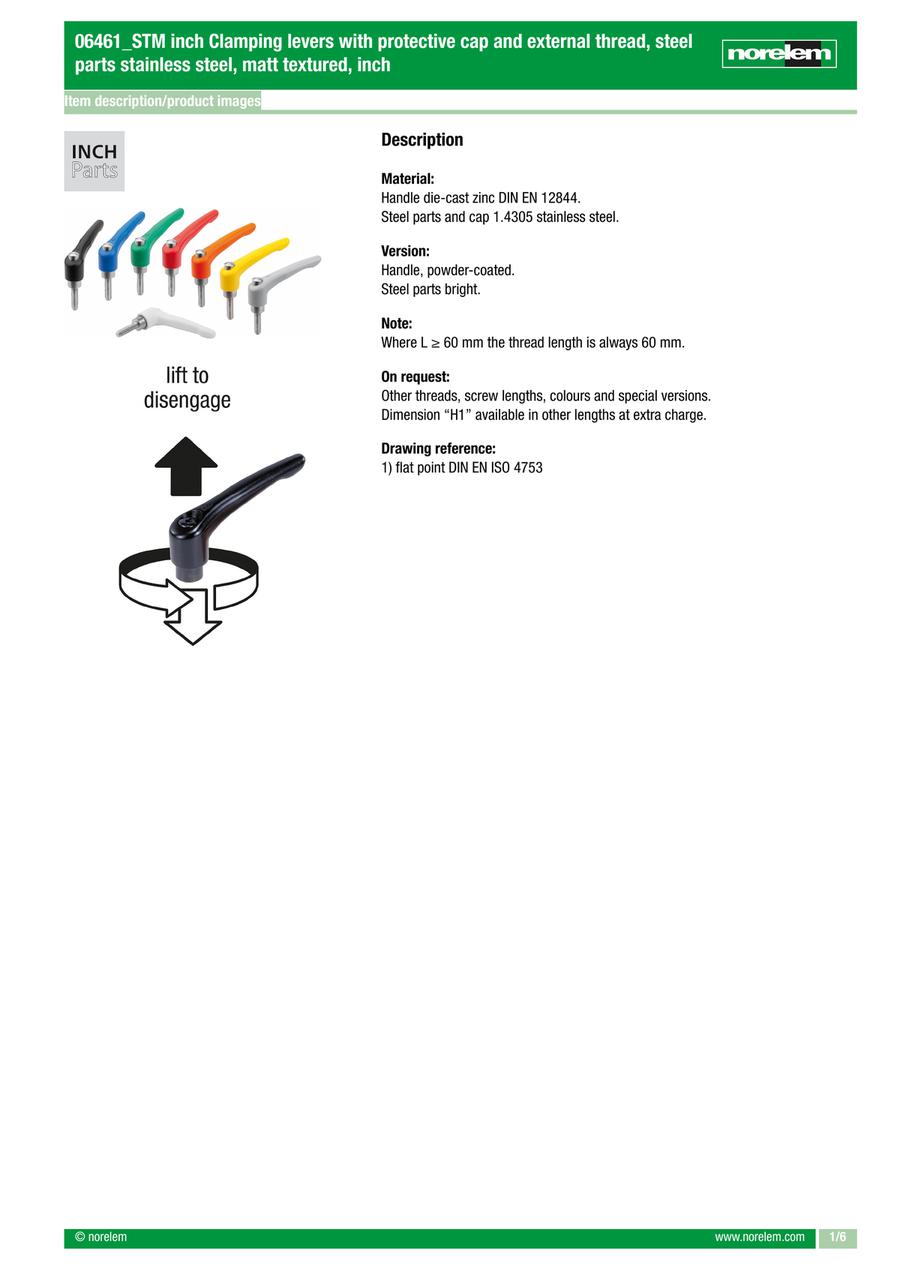

Clamping lever with protective cap, zinc, matt textured, inch (06461)
· Makes it easier to clamp individual components and complete machine parts
· Application fields: machine construction, plant construction, rehabilitation and medical technology, furniture industry
· Cap to protect against dust and dirt
· Different thread sizes and handle lengths
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle length (mm) | H | B | D | Main colour | Size | X=thread | D1 (mm) | No. of teeth | A1=Handle length | D2 | H1 | H2 | H3=handle height | H4 | L=thread length | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0880 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0890 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 40 | 0.0900 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 50 | 0.0920 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 60 | 0.0930 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | orange RAL 2004 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | orange RAL 2004 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | orange RAL 2004 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0880 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | orange RAL 2004 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0890 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | orange RAL 2004 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 40 | 0.0900 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | orange RAL 2004 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 50 | 0.0920 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | orange RAL 2004 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 60 | 0.0930 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | colza yellow RAL 1021 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | colza yellow RAL 1021 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | colza yellow RAL 1021 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0880 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | colza yellow RAL 1021 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0890 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | colza yellow RAL 1021 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 40 | 0.0900 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | colza yellow RAL 1021 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 50 | 0.0920 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | colza yellow RAL 1021 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 60 | 0.0930 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic red RAL 3020 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic red RAL 3020 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic red RAL 3020 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0880 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic red RAL 3020 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0890 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic red RAL 3020 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 40 | 0.0900 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic red RAL 3020 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 50 | 0.0920 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic red RAL 3020 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 60 | 0.0930 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | signal green RAL 6032 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | signal green RAL 6032 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | signal green RAL 6032 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0880 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | signal green RAL 6032 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0890 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | signal green RAL 6032 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 40 | 0.0900 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | signal green RAL 6032 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 50 | 0.0920 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | signal green RAL 6032 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 60 | 0.0930 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic blue RAL 5017 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic blue RAL 5017 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic blue RAL 5017 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0880 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic blue RAL 5017 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0890 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic blue RAL 5017 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 40 | 0.0900 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic blue RAL 5017 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 50 | 0.0920 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | traffic blue RAL 5017 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 60 | 0.0930 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | light grey RAL 7035 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | light grey RAL 7035 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | light grey RAL 7035 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0880 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | light grey RAL 7035 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0890 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | light grey RAL 7035 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 40 | 0.0900 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | light grey RAL 7035 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 50 | 0.0920 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | light grey RAL 7035 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 60 | 0.0930 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | window grey RAL 7040 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | window grey RAL 7040 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0870 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | window grey RAL 7040 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0880 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | window grey RAL 7040 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0890 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | window grey RAL 7040 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 40 | 0.0900 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | window grey RAL 7040 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 50 | 0.0920 | ||
18.81 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | window grey RAL 7040 | 2 | 1/4-20 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 60 | 0.0930 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 5/16-18 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 15 | 0.0880 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 5/16-18 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 20 | 0.0890 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 5/16-18 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 25 | 0.0910 | ||
17.69 € | 1 | 4 Days | 65 | 32 | 9.5 | 13.5 | jet black RAL 9005 | 2 | 5/16-18 | 18.5 | 20 | 74.5 | 19 | 6.5 | 17.5 | 42.5 | 45.5 | 30 | 0.0920 |
Loading...
Basic information
| Main material | Zinc | Surface finish body | textured matt | Component material | Stainless steel |
|---|---|---|---|---|---|
| Surface finish component | bright | Item | Clamping Lever | Thread type | external thread |
| Version 1 | with protective cap | RoHS | yes | PL Edelstahl | no |
Configure
Basic Attributes
-
Handle length(mm)
-
H
-
B
-
D
-
Main colour
-
Size
-
X=thread
-
D1(mm)
-
No. of teeth
-
A1=Handle length
-
D2
-
H1
-
H2
-
H3=handle height
-
H4
-
L=thread length
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
