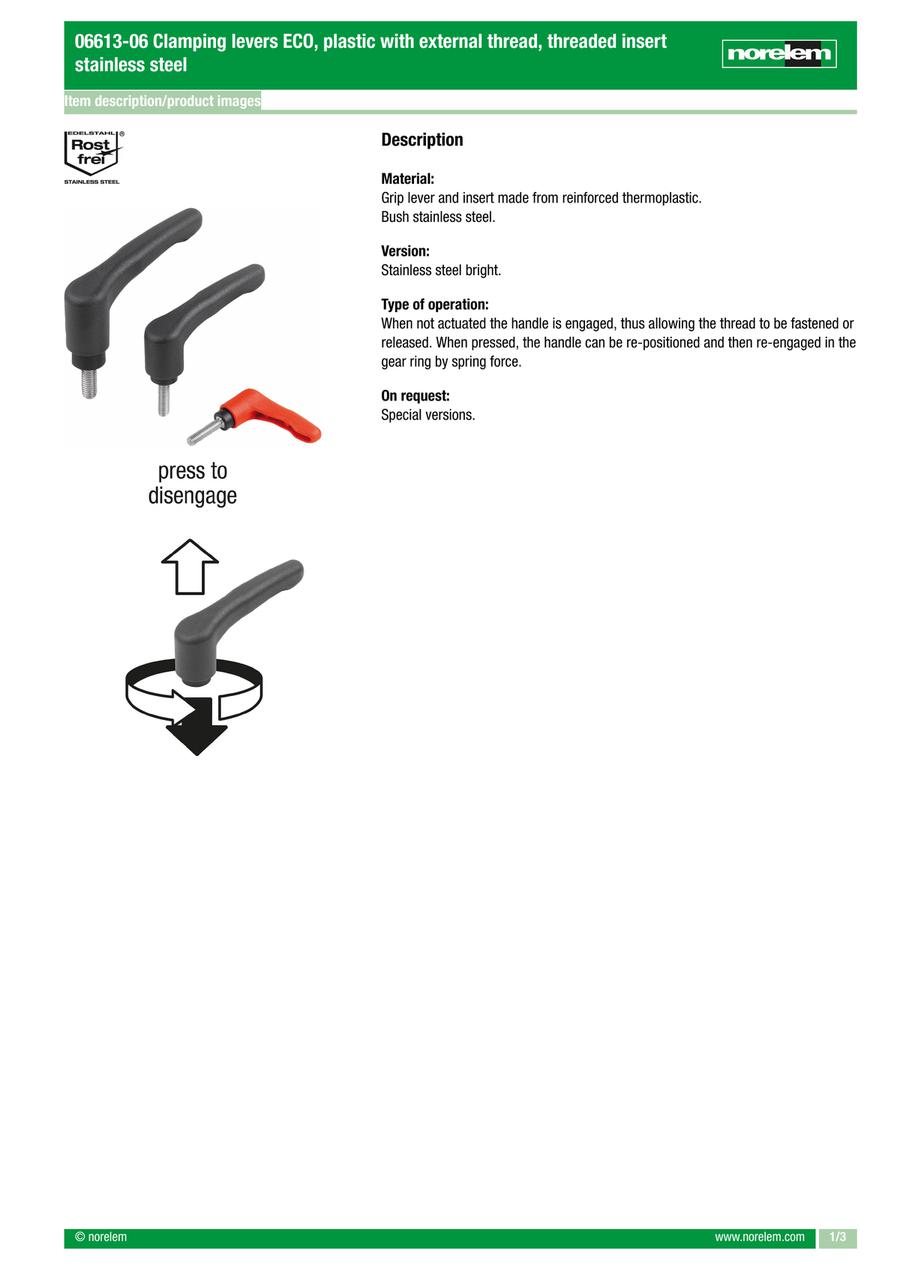

Clamping lever ECO, with external thread, threaded insert stainless steel (06613)
· Closed grip contour without protruding edges
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Handle length (mm) | H | B | D | Main colour | Size | X=thread | D1 (mm) | A1=Handle length | D2 | H1 | H2 | H3=handle height | H4 | L=thread length | Weight in kg (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | black grey RAL 7021 | 1 | M4 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 10 | 0.0070 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | black grey RAL 7021 | 1 | M4 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 15 | 0.0075 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | black grey RAL 7021 | 1 | M4 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 20 | 0.0090 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | traffic red RAL 3020 | 1 | M4 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 10 | 0.0070 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | traffic red RAL 3020 | 1 | M4 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 15 | 0.0075 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | traffic red RAL 3020 | 1 | M4 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 20 | 0.0090 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | black grey RAL 7021 | 1 | M5 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 10 | 0.0120 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | black grey RAL 7021 | 1 | M5 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 15 | 0.0130 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | black grey RAL 7021 | 1 | M5 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 20 | 0.0095 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | black grey RAL 7021 | 1 | M5 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 25 | 0.0101 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | traffic red RAL 3020 | 1 | M5 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 10 | 0.0120 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | traffic red RAL 3020 | 1 | M5 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 15 | 0.0130 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | traffic red RAL 3020 | 1 | M5 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 20 | 0.0095 | ||
4.98 € | 1 | 4 Days | 39.9 | 22.7 | 7.9 | 10 | traffic red RAL 3020 | 1 | M5 | 13.2 | 46.8 | 13.8 | 5 | 15.2 | 31.8 | 28.9 | 25 | 0.0101 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 10 | 0.0200 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 15 | 0.0210 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 20 | 0.0220 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 25 | 0.0180 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 30 | 0.0240 | ||
5.98 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 40 | 0.0250 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 10 | 0.0200 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 15 | 0.0210 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 20 | 0.0220 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 25 | 0.0180 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 30 | 0.0240 | ||
5.98 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M5 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 40 | 0.0250 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 10 | 0.0175 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 15 | 0.0180 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 20 | 0.0300 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 25 | 0.0200 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 30 | 0.0205 | ||
5.98 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 40 | 0.0224 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 10 | 0.0175 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 15 | 0.0180 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 20 | 0.0300 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 25 | 0.0200 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 30 | 0.0205 | ||
5.98 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M6 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 40 | 0.0224 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 10 | 0.0210 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 15 | 0.0220 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 20 | 0.0240 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 25 | 0.0250 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 30 | 0.0260 | ||
5.98 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | black grey RAL 7021 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 40 | 0.0300 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 10 | 0.0210 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 15 | 0.0220 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 20 | 0.0240 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 25 | 0.0250 | ||
5.91 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 30 | 0.0260 | ||
5.98 € | 1 | 4 Days | 65.2 | 27.4 | 10.5 | 13.5 | traffic red RAL 3020 | 2 | M8 | 18.8 | 75 | 19.5 | 5.5 | 20.7 | 41.9 | 38 | 40 | 0.0300 | ||
7.48 € | 1 | 4 Days | 80.3 | 40 | 11.7 | 17 | black grey RAL 7021 | 3 | M8 | 21.2 | 91.3 | 22.2 | 10 | 31.4 | 58.1 | 53.3 | 20 | 0.0460 | ||
7.48 € | 1 | 4 Days | 80.3 | 40 | 11.7 | 17 | black grey RAL 7021 | 3 | M8 | 21.2 | 91.3 | 22.2 | 10 | 31.4 | 58.1 | 53.3 | 25 | 0.0390 | ||
7.48 € | 1 | 4 Days | 80.3 | 40 | 11.7 | 17 | black grey RAL 7021 | 3 | M8 | 21.2 | 91.3 | 22.2 | 10 | 31.4 | 58.1 | 53.3 | 30 | 0.0340 | ||
7.81 € | 1 | 4 Days | 80.3 | 40 | 11.7 | 17 | black grey RAL 7021 | 3 | M8 | 21.2 | 91.3 | 22.2 | 10 | 31.4 | 58.1 | 53.3 | 40 | 0.0440 | ||
7.81 € | 1 | 4 Days | 80.3 | 40 | 11.7 | 17 | black grey RAL 7021 | 3 | M8 | 21.2 | 91.3 | 22.2 | 10 | 31.4 | 58.1 | 53.3 | 50 | 0.0470 | ||
7.81 € | 1 | 4 Days | 80.3 | 40 | 11.7 | 17 | black grey RAL 7021 | 3 | M8 | 21.2 | 91.3 | 22.2 | 10 | 31.4 | 58.1 | 53.3 | 60 | 0.0360 | ||
7.48 € | 1 | 4 Days | 80.3 | 40 | 11.7 | 17 | traffic red RAL 3020 | 3 | M8 | 21.2 | 91.3 | 22.2 | 10 | 31.4 | 58.1 | 53.3 | 20 | 0.0460 | ||
7.48 € | 1 | 4 Days | 80.3 | 40 | 11.7 | 17 | traffic red RAL 3020 | 3 | M8 | 21.2 | 91.3 | 22.2 | 10 | 31.4 | 58.1 | 53.3 | 25 | 0.0390 | ||
7.48 € | 1 | 4 Days | 80.3 | 40 | 11.7 | 17 | traffic red RAL 3020 | 3 | M8 | 21.2 | 91.3 | 22.2 | 10 | 31.4 | 58.1 | 53.3 | 30 | 0.0340 | ||
7.81 € | 1 | 4 Days | 80.3 | 40 | 11.7 | 17 | traffic red RAL 3020 | 3 | M8 | 21.2 | 91.3 | 22.2 | 10 | 31.4 | 58.1 | 53.3 | 40 | 0.0440 |
Loading...
Basic information
| Main material | Plastic | Steel code | 1.4305 | Component material | Stainless steel |
|---|---|---|---|---|---|
| Surface finish component | bright | No. of teeth | 12 | Item | Clamping Lever |
| Thread type | external thread | Version 1 | eco | RoHS | yes |
| PL Edelstahl | yes |
Configure
Basic Attributes
-
Handle length(mm)
-
H
-
B
-
D
-
Main colour
-
Size
-
X=thread
-
D1(mm)
-
A1=Handle length
-
D2
-
H1
-
H2
-
H3=handle height
-
H4
-
L=thread length
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
