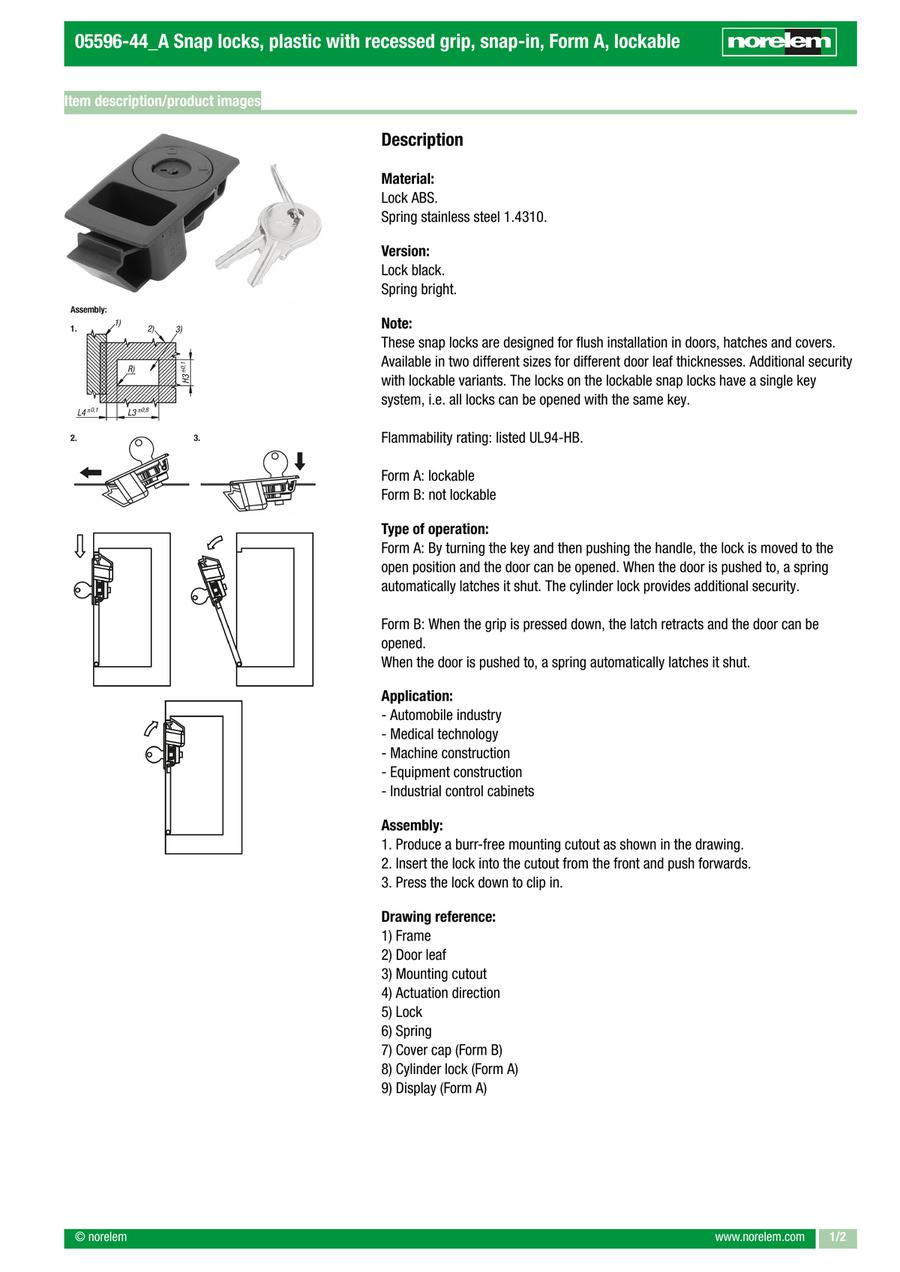

Snap lock schale, snap-in, form A lockable (05596)
· Easy to operate
· For door leaf thickness 0.9 - 1.6 mm
· Lockable variants
· Quick and easy mounting without tools
· Flush installation
· For door leaf thickness 0.9 - 1.6 mm
· Lockable variants
· Quick and easy mounting without tools
· Flush installation
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 05596-44-10926340 |
| 05596-44-11326340 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | S = Door thickness in | |
|---|---|---|---|---|---|
14.46 € | 1 | 4 Days | 0.9-1.2 | ||
14.46 € | 1 | 4 Days | 1.3-1.6 |
Loading...
Basic information
| Component material | Stainless steel | Form | A | Form definition | Lockable |
|---|---|---|---|---|---|
| Item | Snap lock | Main colour | Black | Version 2 | Snap-in |
| B=Width(mm) | 34 | B1(mm) | 30.2 | B2(mm) | 17 |
| H=Height(mm) | 24.6 | H1 = Total holding area(mm) | 6.7 | H2(mm) | 2 |
| H3(mm) | 30.5 | L=Length(mm) | 61 | L1(mm) | 67.4 |
| L2(mm) | 6.7 | L3(mm) | 12.5 | L4(mm) | 49 |
| R(mm) | Max. 0.25 | Temperature range(°C) | -40 To 60 | Steel code | 1.4310 |
| RoHS | Yes | PL Edelstahl | No | Weight (ERP)(kg) | 0.0250 |
