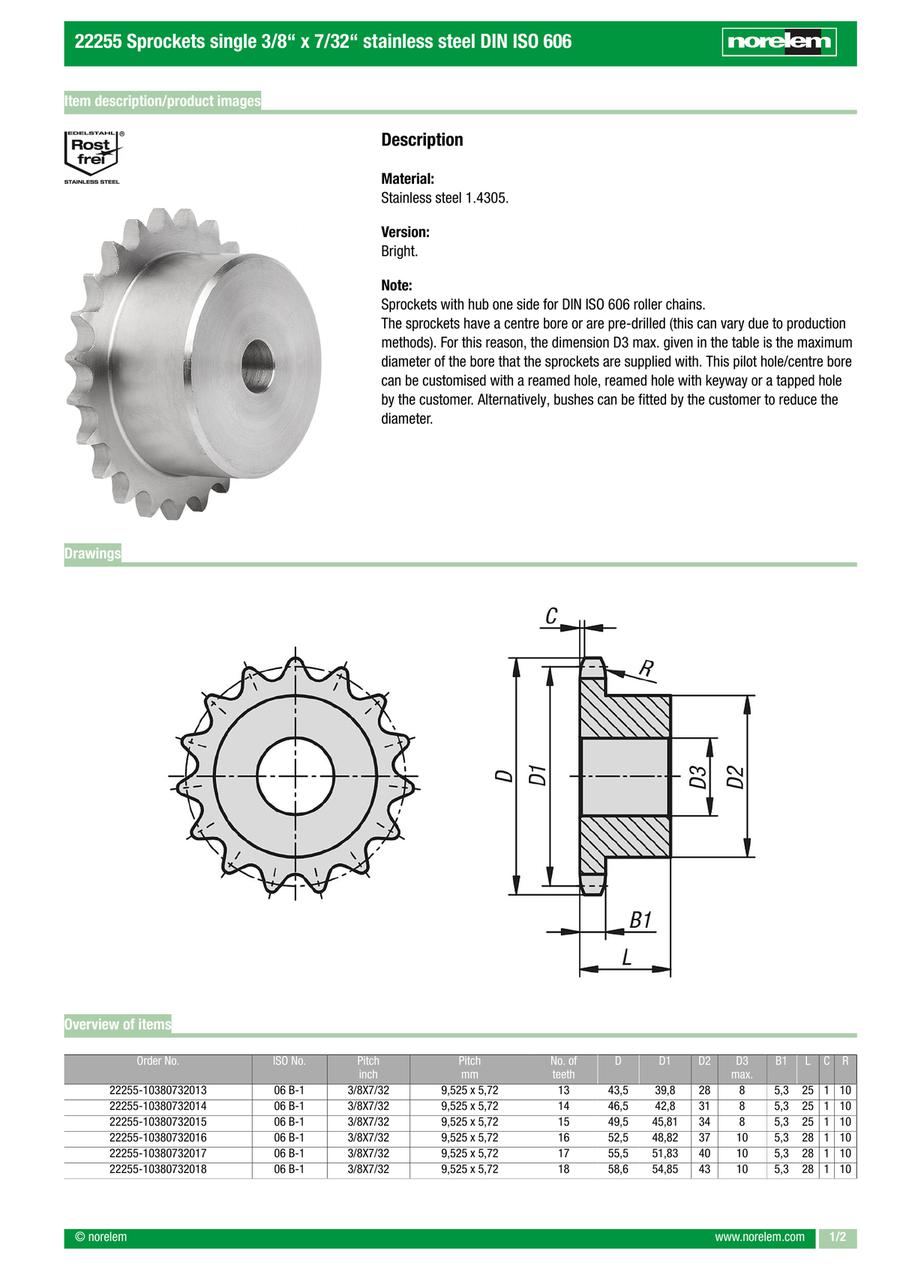

Sprocket single, stainless steel, pre-drilled, ISO=06B-1 (22255)
· Pre-drilled
· With hub on one side
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D | D2 | L | N=No. of teeth | D3 | D1=Pitch circle diameter | D3 max. | |
|---|---|---|---|---|---|---|---|---|---|---|---|
18.40 € | 1 | 4 Days | 43.5 | 28 | 25 | 13 | 8 | 39.8 | 8 | ||
22.83 € | 1 | 4 Days | 46.5 | 31 | 25 | 14 | 8 | 42.8 | 8 | ||
26.01 € | 1 | 4 Days | 49.5 | 34 | 25 | 15 | 8 | 45.81 | 8 | ||
29.34 € | 1 | 4 Days | 52.5 | 37 | 28 | 16 | 10 | 48.82 | 10 | ||
35.42 € | 1 | 4 Days | 55.5 | 40 | 28 | 17 | 10 | 51.83 | 10 | ||
36.67 € | 1 | 4 Days | 58.6 | 43 | 28 | 18 | 10 | 54.85 | 10 | ||
38.99 € | 1 | 4 Days | 61.6 | 45 | 28 | 19 | 10 | 57.87 | 10 | ||
39.77 € | 1 | 4 Days | 64.6 | 46 | 28 | 20 | 10 | 60.89 | 10 | ||
39.99 € | 1 | 4 Days | 67.6 | 48 | 28 | 21 | 12 | 63.91 | 12 | ||
45.58 € | 1 | 4 Days | 73.7 | 52 | 28 | 23 | 12 | 69.95 | 12 | ||
48.88 € | 1 | 4 Days | 79.7 | 57 | 28 | 25 | 12 | 76 | 12 | ||
57.75 € | 1 | 4 Days | 94.8 | 60 | 30 | 30 | 12 | 91.12 | 12 |
Loading...
Basic information
| B1 | 5.3 | R | 10 | C | 1 |
|---|---|---|---|---|---|
| ISO No. | 06 B-1 | Version 2 | pre-drilled | Version 1 | single |
| Main material | stainless steel | Item | Sprocket | Division inches (PxB1) | 3/8X7/32 |
| Pitch(mm) | 9.525 x 5.72 | Surface finish body | bright | DIN ISO | DIN ISO 606 |
| RoHS | yes | PL Edelstahl | yes |
Configure
Basic Attributes
-
D
-
D2
-
L
-
N=No. of teeth
-
D3
-
D1=Pitch circle diameter
-
D3 max.
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
