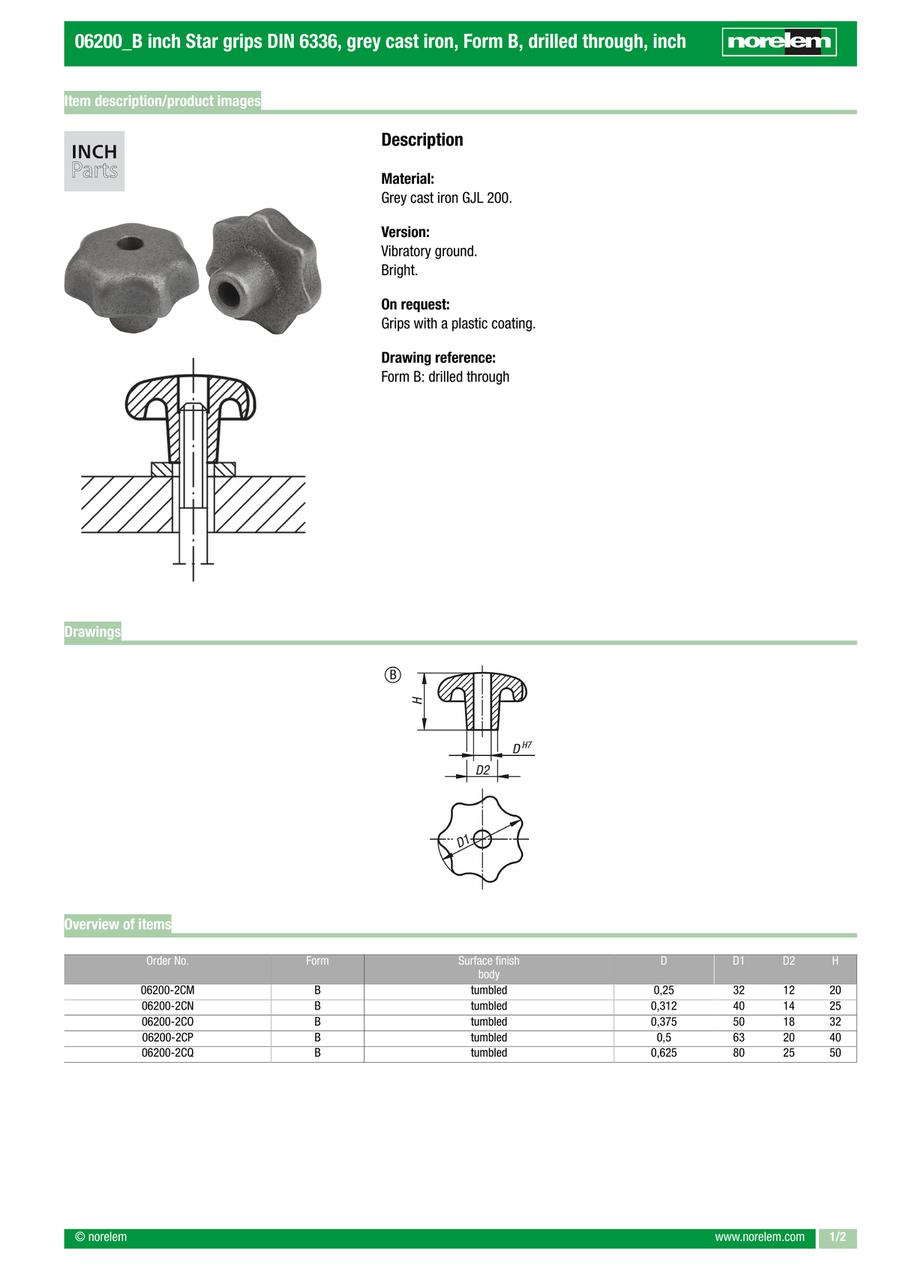

Star grip, form B, grey cast iron, inch (06200)
· Can be used as a clamping, retaining and fastening element
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Form B: drilled through
· Version: vibratory ground
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Form B: drilled through
· Version: vibratory ground
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 06200-2CM |
| 06200-2CN |
| 06200-2CO |
| 06200-2CP |
| 06200-2CQ |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D2 | H3 | D=bore | D1=Outside diameter | H=Height | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
3.67 € | 1 | 4 Days | 12 | 10 | 0.25 | 32 | 20 | 0.0480 | ||
3.86 € | 1 | 4 Days | 14 | 13 | 0.312 | 40 | 25 | 0.0659 | ||
5.49 € | 1 | 4 Days | 18 | 17 | 0.375 | 50 | 32 | 0.1294 | ||
8.02 € | 1 | 4 Days | 20 | 21 | 0.5 | 63 | 40 | 0.2584 | ||
14.39 € | 1 | 4 Days | 25 | 25 | 0.625 | 80 | 50 | 0.4346 |
Loading...
Basic information
| DIN | DIN 6336 | Form | B | Item | Star Grip |
|---|---|---|---|---|---|
| Main material | Grey cast iron | Thread type | reamed hole | RoHS | yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
