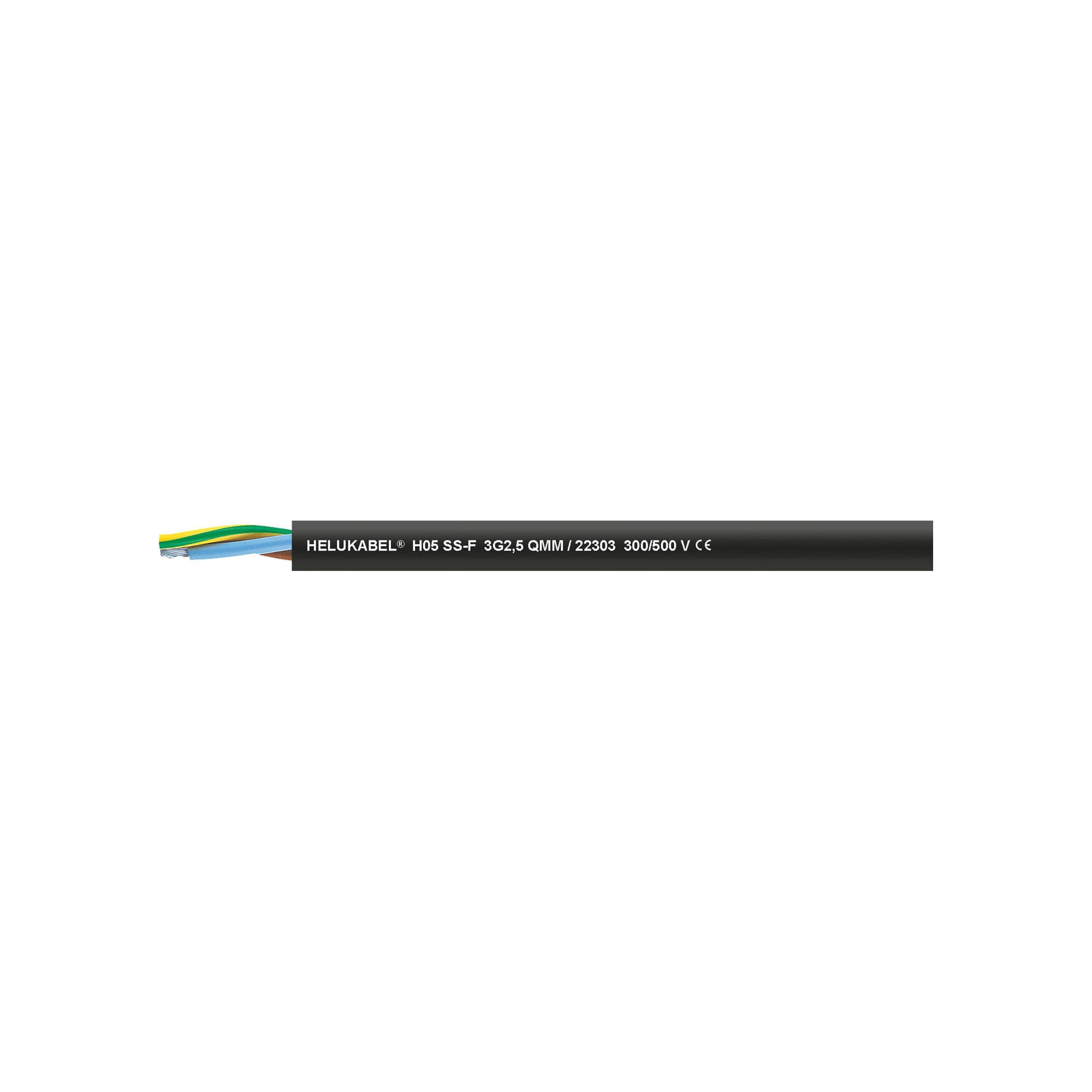

Heat & Cold resistant Rubber / Neoprene H05SS-F
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 22291/1000 |
| 22291/500 |
| 22295/1000 |
| 22295/500 |
| 22299/1000 |
| 22299/500 |
| 22303/1000 |
| 22303/500 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Overall Length (m) | Finished outer diameter (mm) | Conductor Nominal cross-section | |
|---|---|---|---|---|---|---|---|---|---|
2,135.35 € | 1 | 5 Days | 10 | 1000 | 7 | 0.75 | |||
1,067.67 € | 1 | 5 Days | 10 | 500 | 7 | 0.75 | |||
2,480.94 € | 1 | 5 Days | 10 | 1000 | 7.4 | 1 | |||
1,240.48 € | 1 | 5 Days | 10 | 500 | 7.4 | 1 | |||
3,231.64 € | 1 | 5 Days | 10 | 1000 | 8.9 | 1.5 | |||
1,615.83 € | 1 | 5 Days | 10 | 500 | 8.9 | 1.5 | |||
5,365.86 € | 1 | 5 Days | 10 | 1000 | 10.4 | 2.5 | |||
2,682.94 € | 1 | 5 Days | 10 | 500 | 10.4 | 2.5 |
Loading...
Basic information
| Number Of Cores(Core) | 3 | Sheath (outer coating) color | Black | Core insulation | vernetzten SiR (Rubber-mixture) EI2 |
|---|---|---|---|---|---|
| Coat Material | vernetztem EM9 (Rubber-mixture) | Rated voltage U(kV) | 0.5 | Conductor class | fine wired |
| Stranding | Core | Core identification | colored | protective conductor | yes |
| Halogen-free according to EN 50267-2-3 | no | oil resistance | no |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
