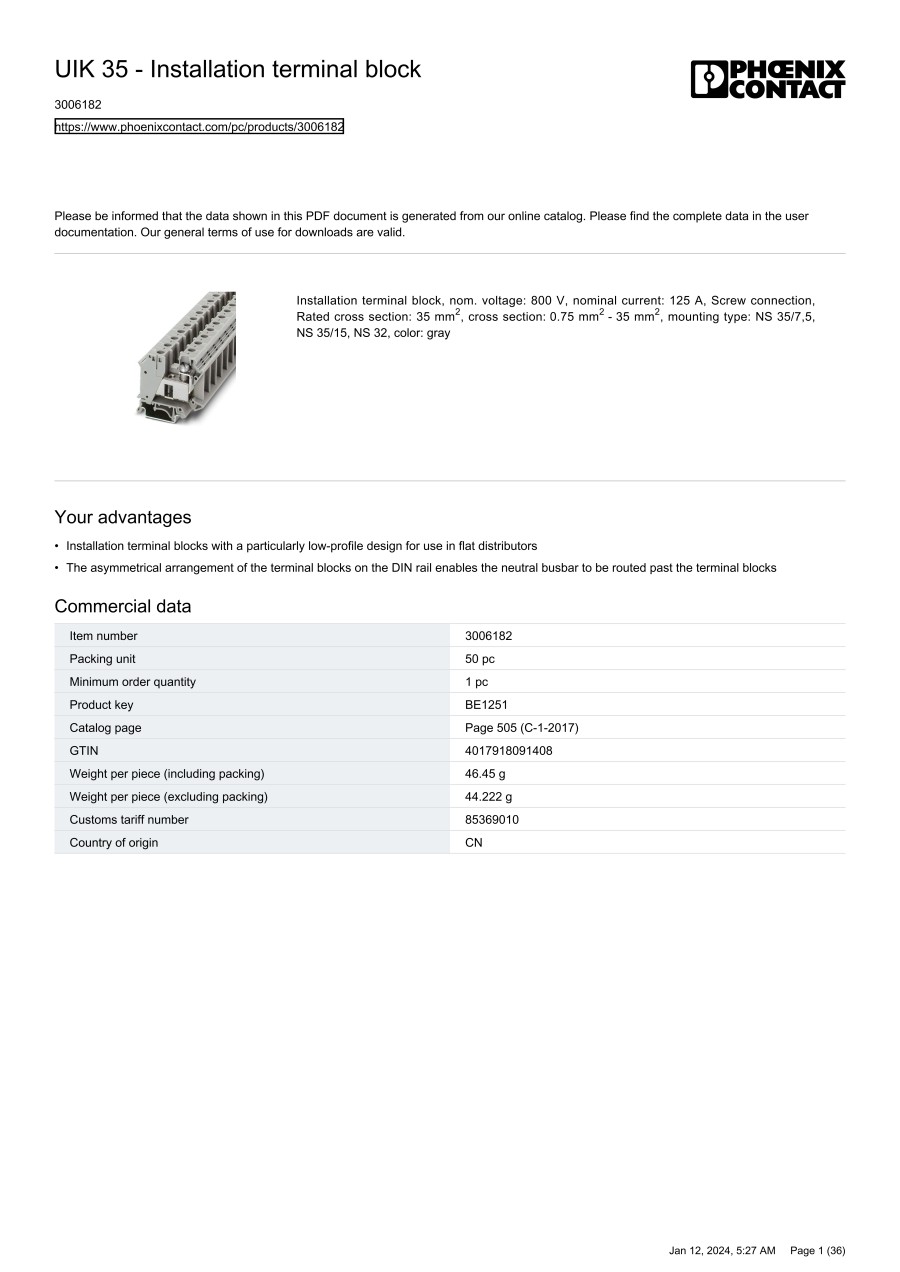

Installation terminal block UIK 35
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
3006182
Basic information
| Total number of pins(Pole) | 2 | Color | Grey | AWG | 18 - 2 |
|---|---|---|---|---|---|
| Clamp width(mm) | 15.2 | Connector cross section (fixed)(mm²) | 0.75 - 35 | Connector cross-section (flexible)(mm²) | 0.75 - 35 |
| Nominal voltage(V) | 800 | Nominal voltage (details)(V) | 800 V (at 35 mm²) | Nominal current(A) | 125 |
| Nominal current (details)(A) | 125 | No. of rows | 1 | Product size (height)(mm) | 51 |
| Product size (length)(mm) | 55 | Product size (width)(mm) | 15.2 | Stripping length(mm) | 16(max.) |
| Flammability rating | V2 | Connection (components) | Screws | Connector type (category) | Terminal |
| Insulation material | PA | Industrial goods | No |
This page is Installation terminal block UIK 35, part number 3006182.
You can find the detail information about specifications and dimensions on part number 3006182.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
