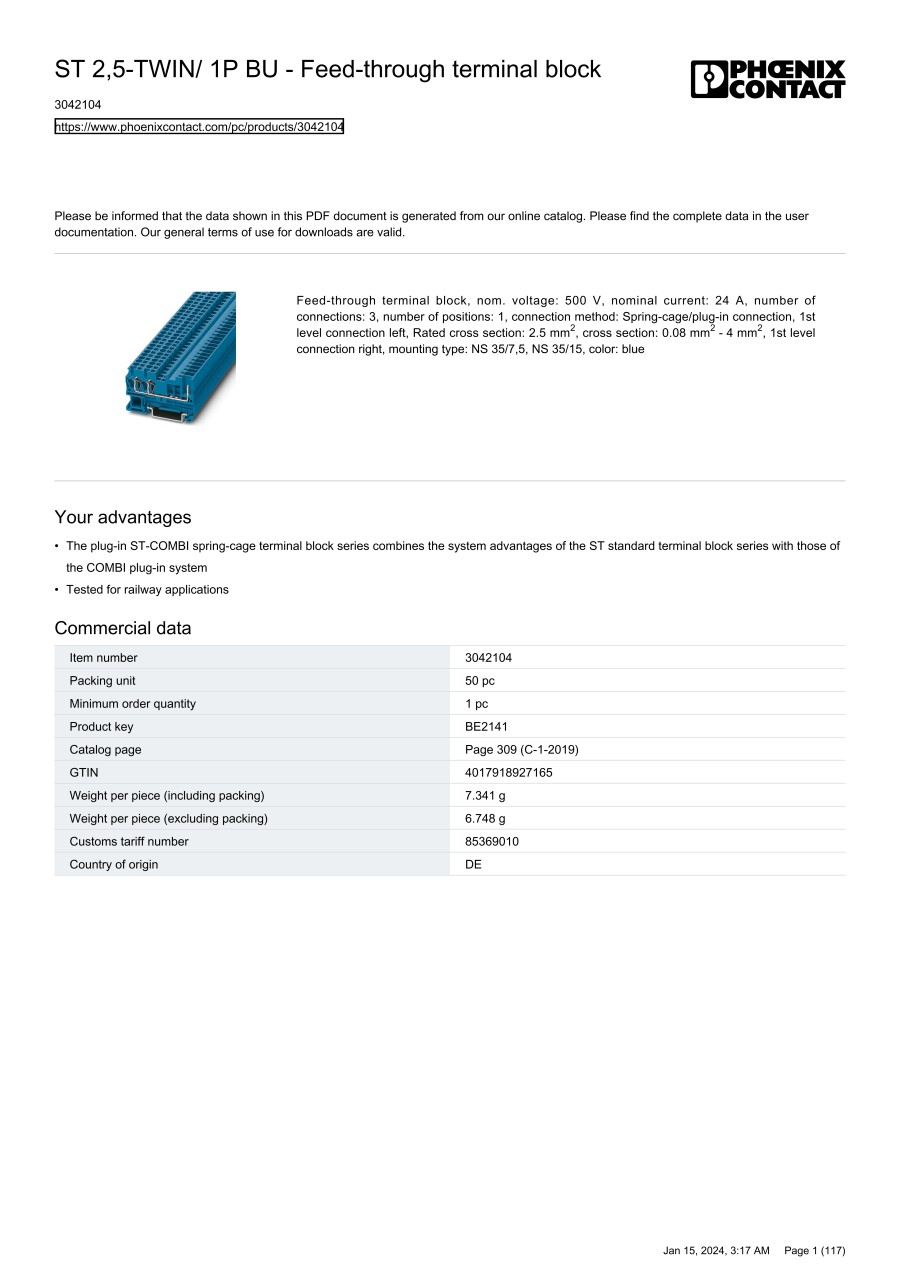

Feed-through terminal block ST 2,5-TWIN / 1P
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Total number of pins(Pole) | 3 | Clamp width(mm) | 5.2 | Connector cross section (fixed)(mm²) | 0.08 - 4 |
|---|---|---|---|---|---|
| Connector cross-section (flexible)(mm²) | 0.08 - 2.5 | Nominal voltage(V) | 500 | Nominal current(A) | 24 |
| No. of rows | 1 | Product size (height)(mm) | 36.5 | Product size (length)(mm) | 60.5 |
| Product size (width)(mm) | 5.2 | Stripping length(mm) | 8-10 | Flammability rating | V0 |
| Connection (components) | Pull spring | Connector type (category) | Continuity | Industrial goods | Yes |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
