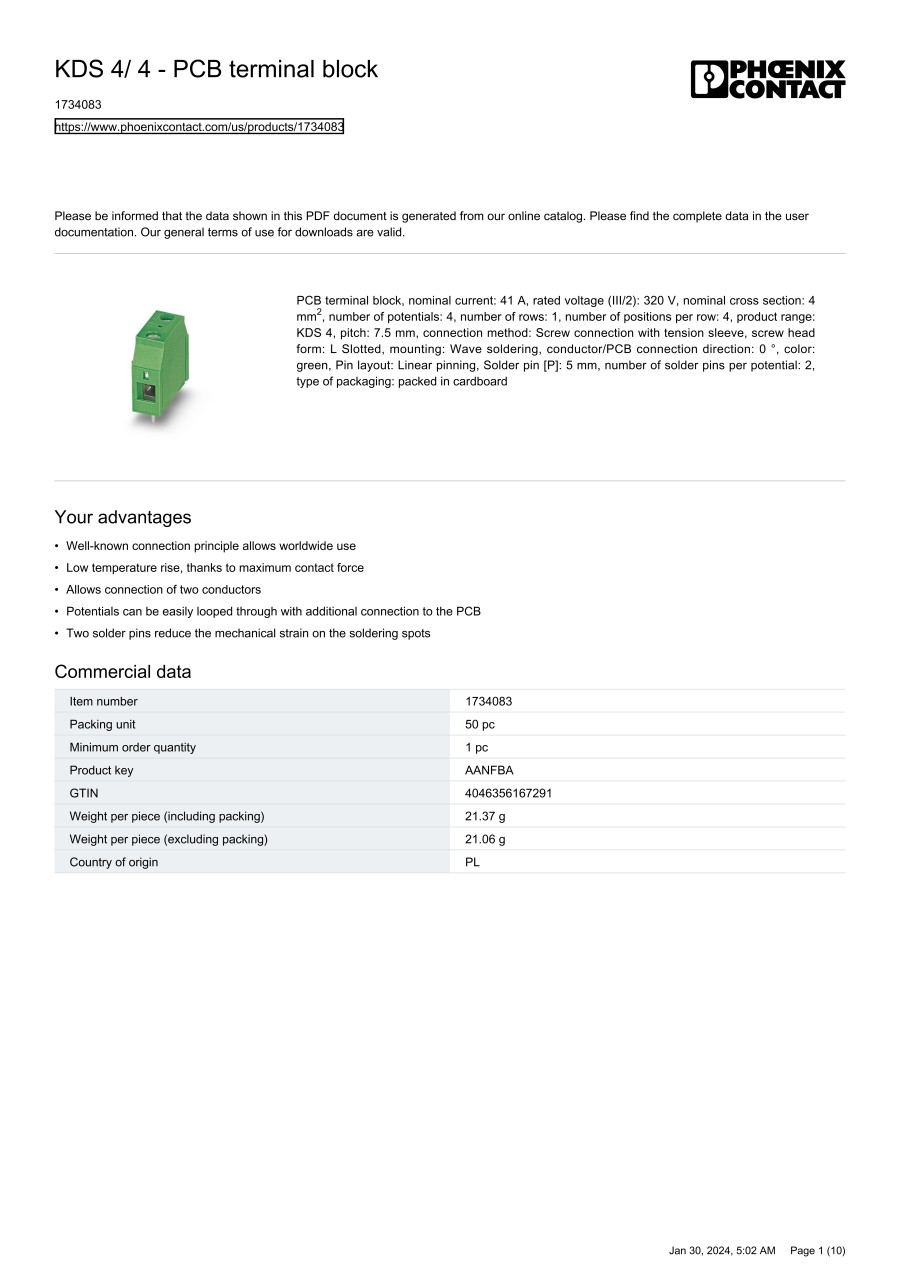

PCB terminal block, KDS
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
1734083
Basic information
| Height(mm) | 23 | Colour housing | Green | Rated voltage(V) | 320 |
|---|---|---|---|---|---|
| Operation temperature(°C) | -40|100 | Type of fastening | - | Inflammability class of insulation material acc. with UL94 | - |
| Number of levels | 1 | Rated surge voltage(kV) | 4 | Over voltage category | III |
| Pollution degree | 2 | Connection type conductor | Screw connection | Connection type PCB | Soldering connection |
| Diameter connection pin(mm) | 1.3 | Length pin(mm) | 5 | Material connection surface | Tin |
| Modular spacing connections(mm) | 7.5 | Type of banding | None | Connectable conductor cross section solid-core(mm²) | 0.2|6 |
| Connectable conductor cross section fine-strand with cable end sleeve(mm²) | 0.25|4 | Connectable conductor cross section fine-strand without cable end sleeve(mm²) | 0.2|4 | Connectable conductor cross section multi-wired(mm²) | 0.2|1.5 |
| Degree of protection (IP), mounted | - | Material insulation body | Other | Angle PCB/conductor connection | 0°/180° (horizontal) |
| Type of PCB fastening | Connecting contact | Rated current In(A) | 41 | Number of electrical connections | 4 |
This page is PCB terminal block, KDS, part number 1734083.
You can find the detail information about specifications and dimensions on part number 1734083.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
