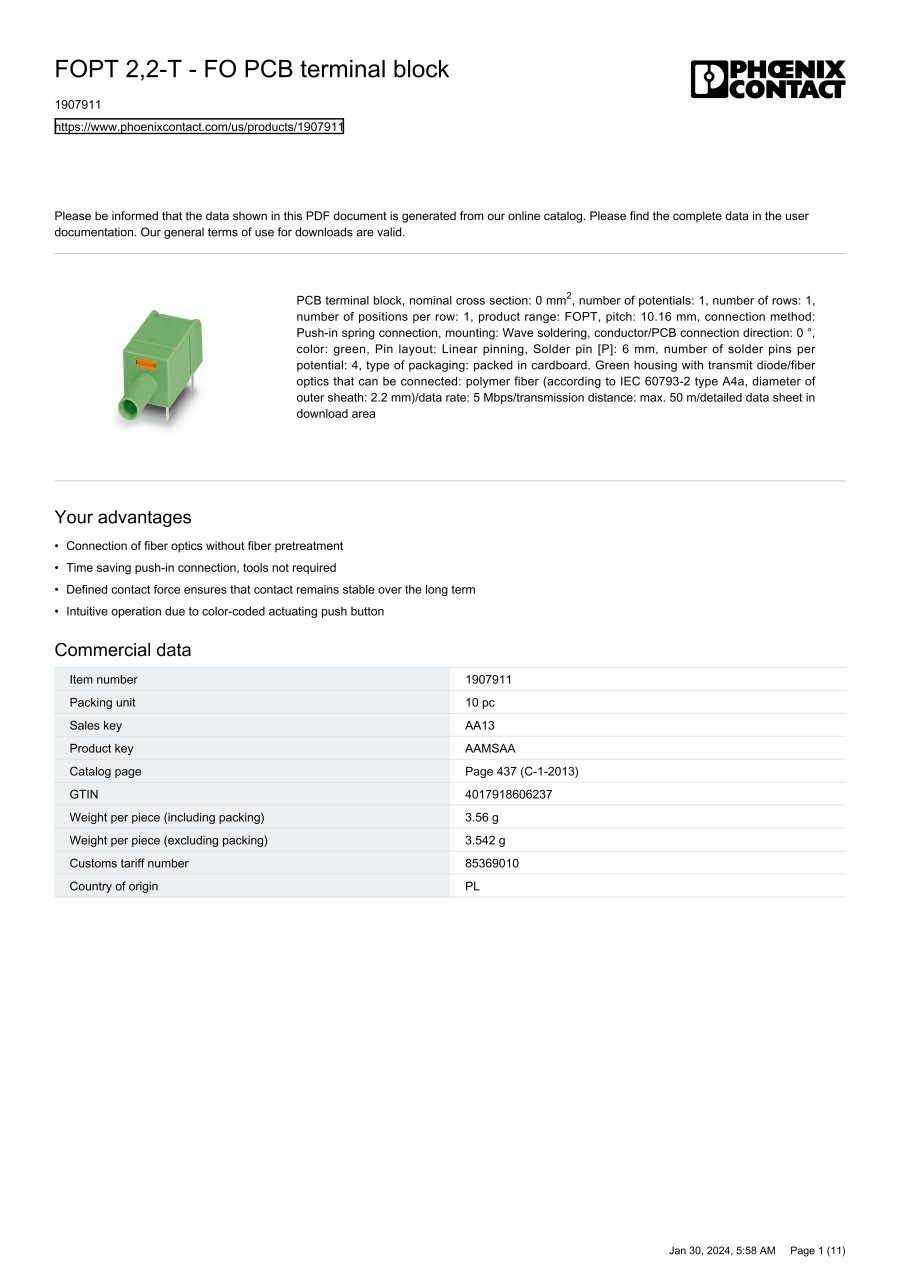

FO PCB terminal block, FOPT
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Basic information
| Height(mm) | - | Rated voltage(V) | - | Operation temperature(°C) | 0|70 |
|---|---|---|---|---|---|
| Type of fastening | - | Inflammability class of insulation material acc. with UL94 | HB | Number of levels | 1 |
| Rated surge voltage(kV) | - | Over voltage category | - | Pollution degree | 2 |
| Connection type conductor | - | Connection type PCB | Soldering connection | Diameter connection pin(mm) | - |
| Length pin(mm) | - | Material connection surface | Tin | Modular spacing connections(mm) | 10.16 |
| Type of banding | None | Connectable conductor cross section solid-core(mm²) | -|- | Connectable conductor cross section fine-strand with cable end sleeve(mm²) | -|- |
| Connectable conductor cross section fine-strand without cable end sleeve(mm²) | -|- | Connectable conductor cross section multi-wired(mm²) | -|- | Degree of protection (IP), mounted | - |
| Material insulation body | - | Angle PCB/conductor connection | 0°/180° (horizontal) | Type of PCB fastening | Connecting contact |
| Rated current In(A) | - | Number of electrical connections | 1 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
