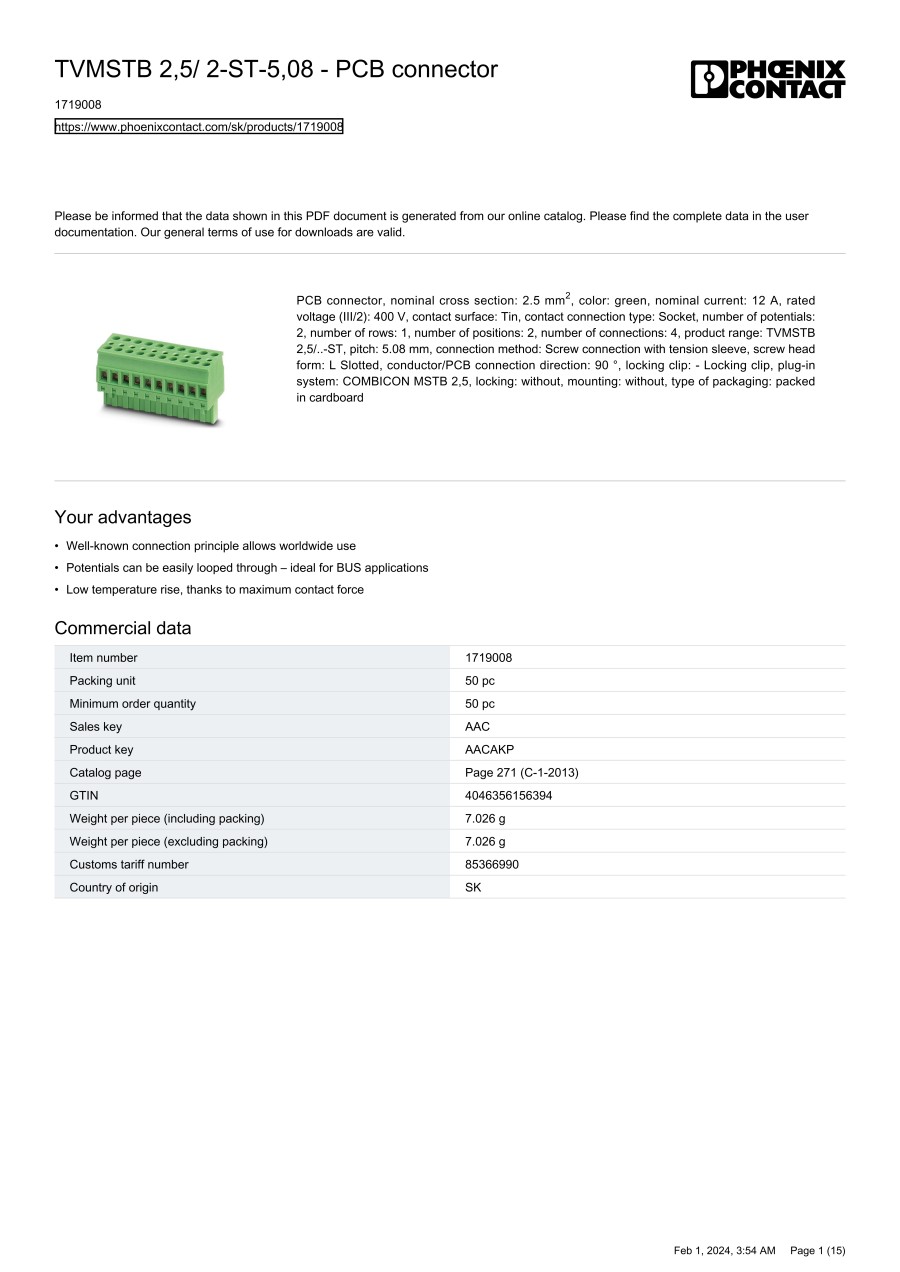

Printed-circuit board connector, PCB connector, TVMSTB
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 1719008 |
| 1719037 |
| 1719040 |
| 1719053 |
| 1719066 |
| 1719079 |
| 1719082 |
| 1719095 |
| 1719105 |
| 1719118 |
| 1719121 |
| 1719134 |
| 1719147 |
| 1719150 |
| 1719163 |
| 1719176 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | |
|---|---|---|---|---|
3.14 € | 100 | 40 Days | ||
7.83 € | 50 | 54 Days | ||
9.40 € | 50 | 54 Days | ||
10.96 € | 50 | 54 Days | ||
12.53 € | 50 | 54 Days | ||
14.09 € | 50 | 54 Days | ||
15.66 € | 50 | 54 Days | ||
3.63 € | 100 | 54 Days | ||
5.20 € | 50 | 54 Days | ||
6.76 € | 50 | 54 Days | ||
8.33 € | 50 | 54 Days | ||
9.89 € | 50 | 54 Days | ||
11.46 € | 50 | 54 Days | ||
13.02 € | 50 | 54 Days | ||
14.59 € | 50 | 54 Days | ||
16.15 € | 50 | 54 Days |
Loading...
Basic information
| Type of connection | Printed circuit board to cable | Colour housing | Green | Rated voltage(V) | 400 |
|---|---|---|---|---|---|
| Number of poles | - | Contact type | Bus | Material housing | Other |
| Coating housing | - | Operation temperature(°C) | -40|100 | Inflammability class of insulation material acc. with UL94 | V0 |
| Rated surge voltage(kV) | 4 | Type of electric connection | Screw connection | Material of contact surface | Tin |
| Over voltage category | III | Pollution degree | 2 | Connectable cable type | Tubular cable |
| Modular spacing connections(mm) | 5.08 | Number of plug-in contact rows | 1 | Modular spacing contacts(mm) | 5.08 |
| Connectable conductor cross section solid-core(mm²) | 0.2|2.5 | Connectable conductor cross section fine-strand with cable end sleeve(mm²) | 0.25|2.5 | Connectable conductor cross section fine-strand without cable end sleeve(mm²) | 0.2|2.5 |
| Connectable conductor cross section multi-wired(mm²) | 0.2|1 | Degree of protection (IP), mounted | Other | With protective conductor | - |
| Material insulation body | Other | Material contact | Copper | Angle contact/conductor connection | 180° (horizontal) |
| Rated current In(A) | 12 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
