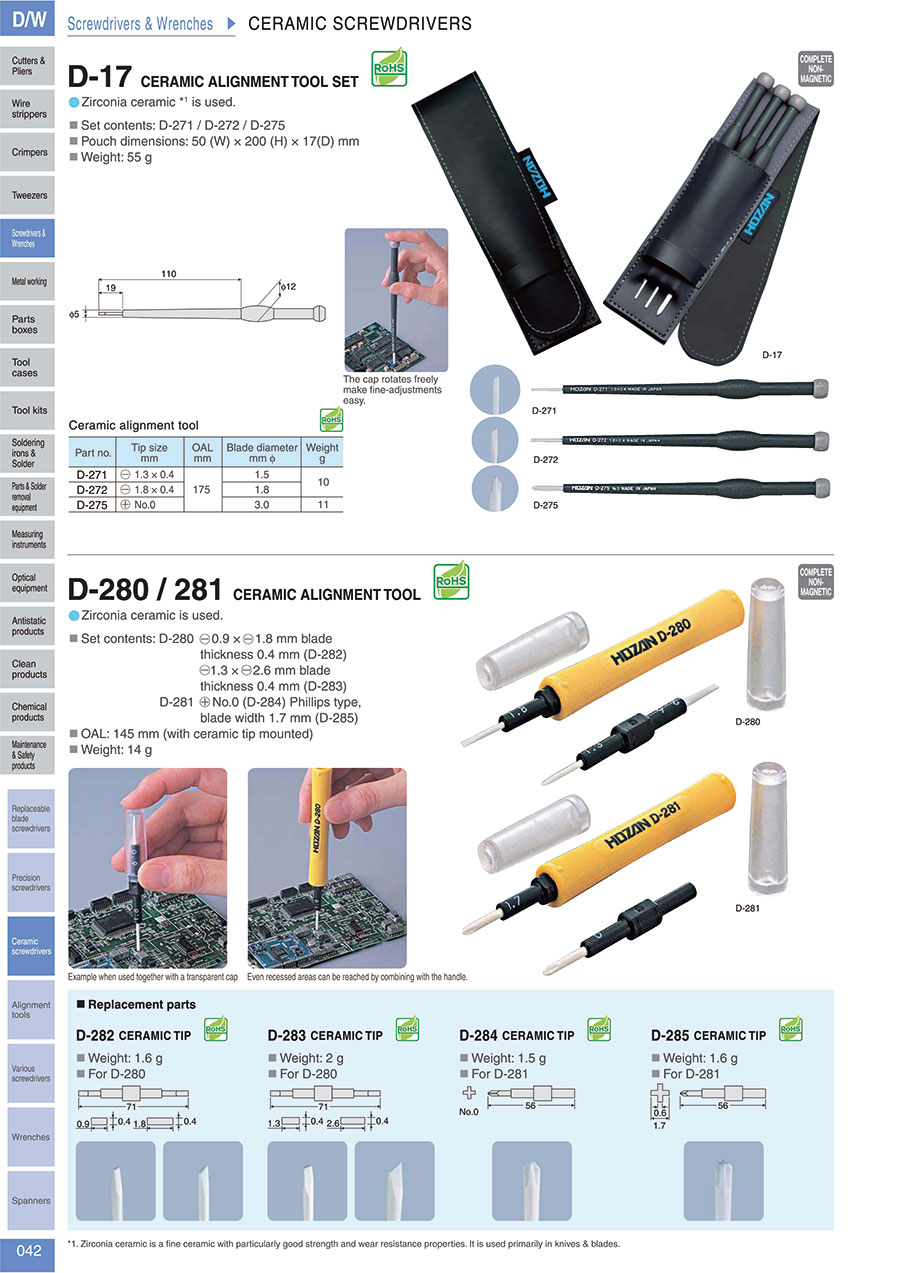

Replaceable Ceramic Adjustment Screwdriver D-280
- Volume Discount
Ideal for adjusting semi-secure volume condensers on P.C.B. Zirconia ceramic does not cause misalignment of coils. More wear-resistant than alumina ceramic.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
D-280
Basic information
| Tip standards | Flathead (-) | Tip size / flathead (-) blade width (mm) B1 | 1.3 / 1.8 / 0.9 / 2.6 | Single Product/Set Classification | Set Product |
|---|---|---|---|---|---|
| Shaft type | Round | Magnet | N/A | Grip Type | Resin |
| Tip size / flathead (-) blade thickness (mm) B2 | 0.4 | Overall Length(mm) | 145 (With bit fitted) | Weight(g) | 14 |
This page is Replaceable Ceramic Adjustment Screwdriver D-280, part number D-280.
You can find the detail information about specifications and dimensions on part number D-280.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
