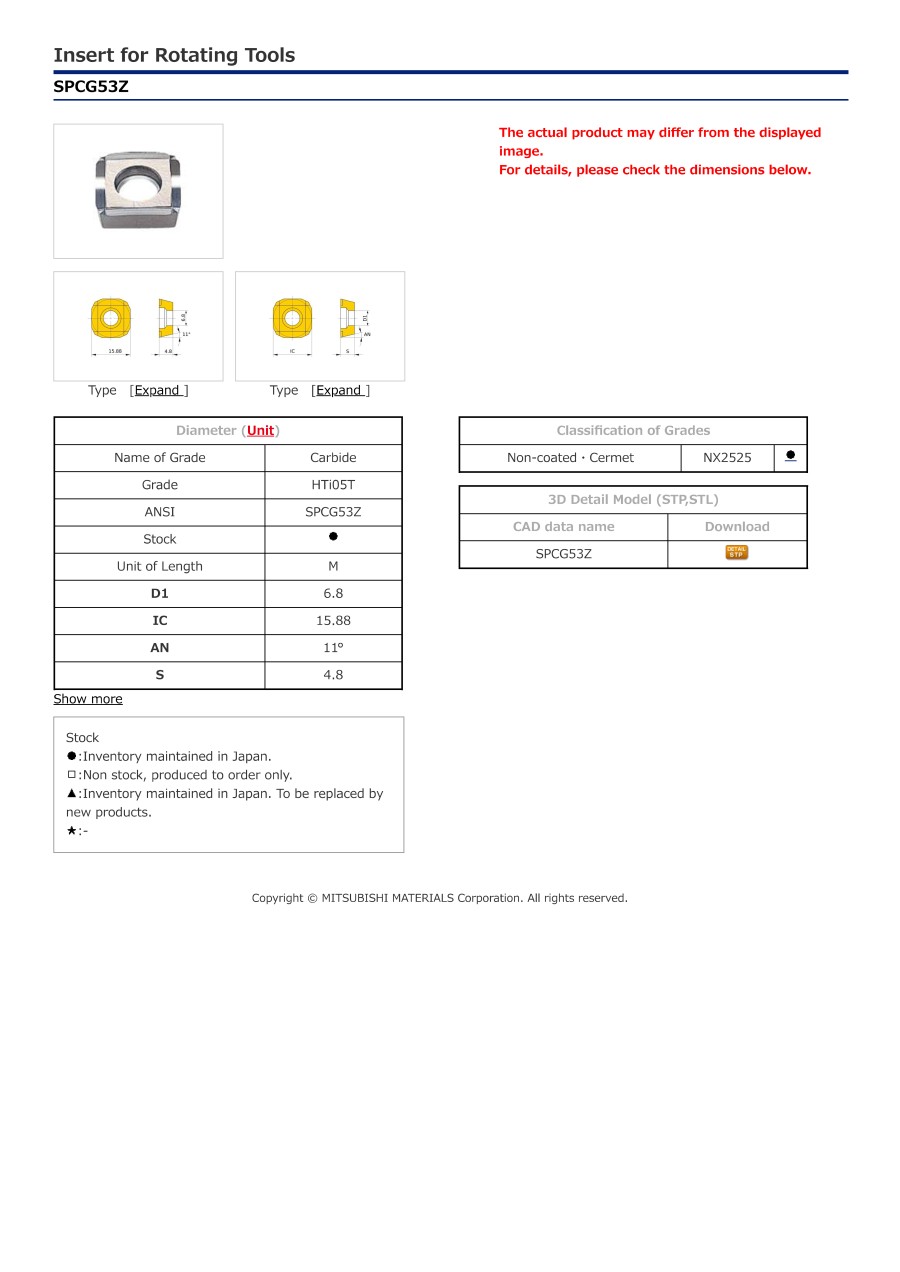

Insert for Cutter SPCG○○○
A general-purpose insert for rotary tools with a relief angle of 11°. Polishing type.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| SPCG53Z-HTI05T |
| SPCG53Z-NX2525 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Work material | Material Number | Material type | |
|---|---|---|---|---|---|---|---|
50.92 € | 10 | 8 Days | Cast Iron / Non-ferrous metal | HTi05T | Carbide | ||
50.92 € | 10 | 6 Days | Steel / Stainless Steel / Cast Iron | NX2525 | Cermet |
Loading...
Basic information
| Shape (initial letter of model number) | S (Square) | Clearance angle | P (11°) | D1(mm) | 15.88 |
|---|---|---|---|---|---|
| S1(mm) | 4.8 | Accuracy | C | Honing | F |
| Nominal Code | SPCG53Z | Compatible cutter | FF3000 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
